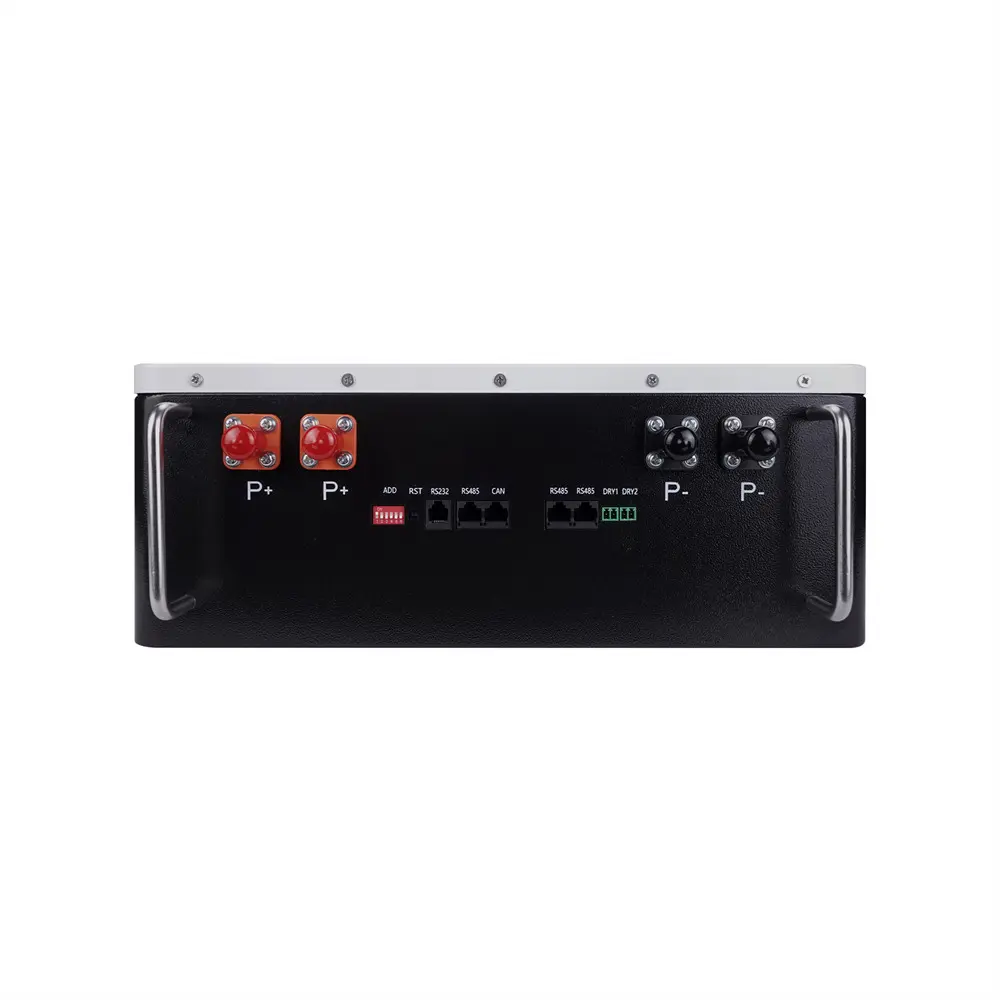

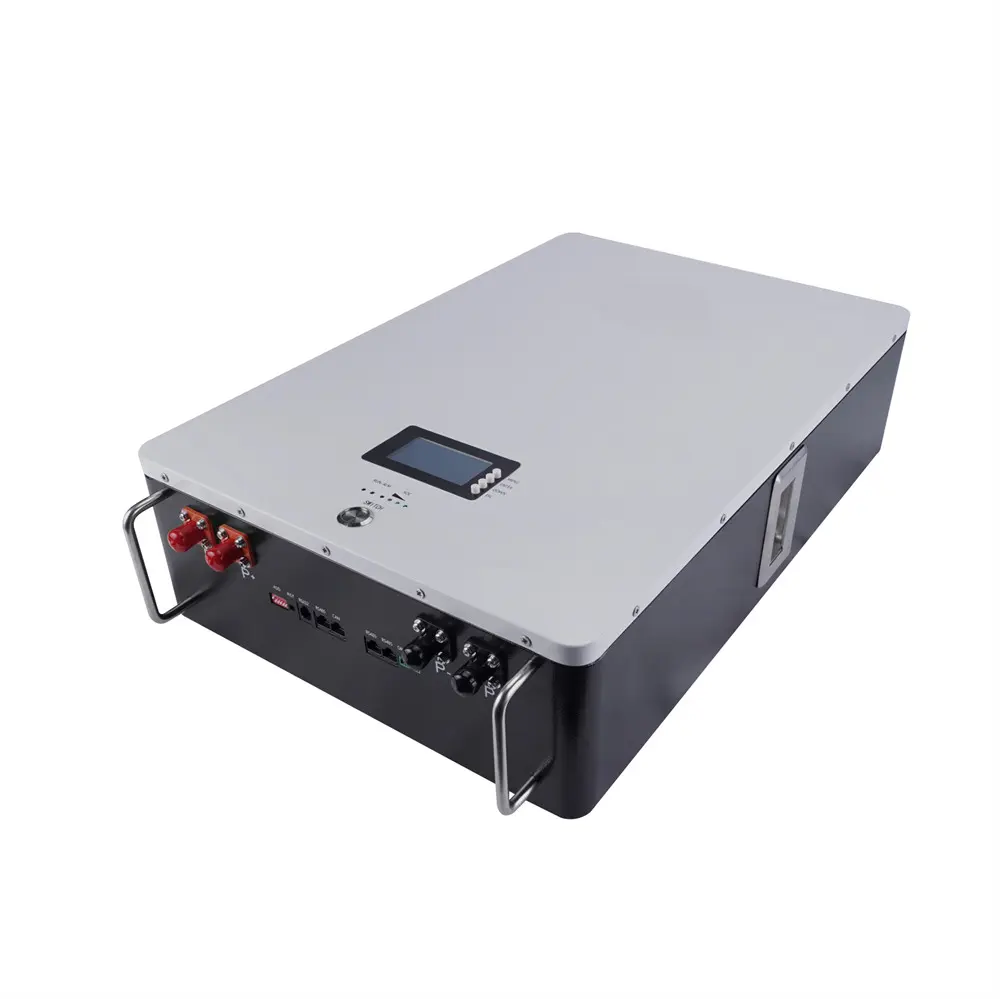

OEM Power Wall Mount on Off Grid Solar Hybrid Power Storage System Kingwooh All in One Customized Power Supplier, Suppliers

1 / 5

OEM Power Wall Mount on Off Grid Solar Hybrid Power Storage System Kingwooh All in One Customized Power Supplier, Suppliers

Residential ESS enables you obtain power from PV panels, utility grid, diesel generators. The power of the hybrid inverter rated from 3kW-12kW and battery capacity could be expanded from 5.12kWh-40.96kWh, it Â can meet your family daily electricity consumption , absolutely a better choice for household UPS.

Send Inquiry

Product Description

Product spotlights

High Quality Three Phase High Voltage Hybrid Solar Inverter Wall Mounted Household Energy Storage Lithium Battery.

Wall-Mounted Home Energy Storage Solutions Grid-Connected Power Plant Solar Energy System with Lithium-Ion Batteries. (JS512280)

Feature highlights: High-capacity lithium battery designed for home energy storage systems, featuring a durable safety design with a long cycle life. Suitable for wall-mounted installations, it supports renewable energy solutions with reliable power output and customize sizes to meet specific user needs.

We provide services: We offer full, design, and sample customization options, supported by Product Certification, ensuring tailored solutions and reliable quality standards.

Product Features

Wall mount compact design, Easy To Install And Maintain
Load-matching, backup, peak-shaving model
≥4000 cycle times, 3 years warranty
Match various off-grid and hybrid inverters
Accept OEM/ODM
Compact Size & Light Weight, Protection & Warning System
Match Various Inverter Communication Protocol

Product Performance

Description	Parameters
Model	JS256100	JS256230	JS512100	JS512230	JS512280
Array Mode	8S1P	8S1P	16S1P	16S1P	16S1P
Energy (Kwh)	2.5	5.8	5.1	11.7	14.3
Voltage (V)	25.6	25.6	51.2	51.2	51.2
Charge Voltage (V)	29.2	29.2	58.4	58.4	58.4
Discharge Cut-off Voltage (V)	21	21	42	42	42
Standard Charging Current(A)	20	46	20	46	56
Max. Continuous Charging Current (A)	100	100	100	200	200
Max. Continuous Discharging Current (A)	100	100	100	200	200
Cycle Life	>6000 Times @ 80% DOD, 25°C	>6000 Times @ 80% DOD, 25°C	>6000 Times @ 80% DOD, 25°C	>6000 Times @ 80% DOD, 25°C	>6000 Times @ 80% DOD, 25°C
Communication Mode	RS485/CAN	RS485/CAN	RS485/CAN	RS485/CAN	RS485/CAN

Frequently Asked Questions

What inverter brands are compatible with this energy storage system?

The battery supports communication protocols for various major off-grid and hybrid inverters through RS485 and CAN interfaces.

How many cycle times does the battery offer?

The lithium battery provides a durable performance of more than 6000 cycles at 80% Depth of Discharge (DOD) at 25°C.

Can I customize the size of the battery?

Yes, we support both custom sizes and customization options (OEM/ODM) to meet specific residential power needs.

Is the installation complex?

No, the system features a wall-mounted compact design which is lightweight and optimized for quick installation and simple maintenance.

What built-in protection mechanisms are included?

The storage system includes an integrated protection and warning system that prevents overcharging, over-discharging, and monitors overall status.

What type of warranty is provided with the battery?

We provide a standard 3-year warranty alongside our rigorous quality control and certification processes.
