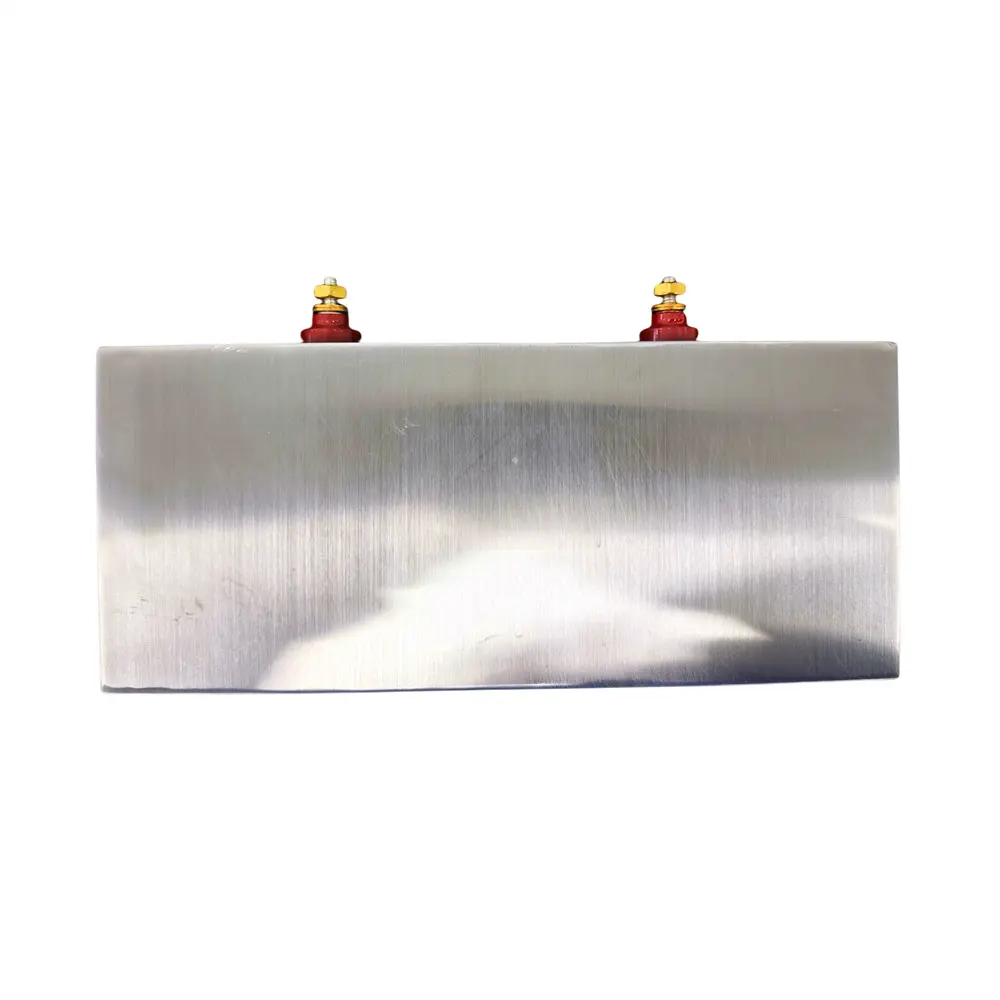

ODM MKMJ Type Current Impulse Capacitor Exporter, Exporters
Main features
1.Adopt metallized film, metal shell packaging, non-inductive winding, light weight, high energy storage density and excellent electrical performance. 2.Dry fully sealed structure avoids polluting the environment and causing fire due to leakage. It is safe and reliable and has good moisture-proof performance. 3.Good self-healing performance, stable product performance, safe and reliable, and long service life.
Mainly used in high-voltage impulse generators, high-power pulse power supplies, strong magnetic fields, high-energy accelerators, thermonuclear reaction test devices, strong lasers and strong beam currents and other high-voltage energy storage energy systems.
Technical Parameters
Capacity range (CN)
1μF ~ 50000μF
Capacity allowable deviation
-1% ~ 5%
Rated voltage (UN)
1kVd.c. ~ 100kVd.c.
Time constant (RC)
≥20,000s
Operating temperature
-40℃ ~ +85℃
Interelectrode test voltage
1.0UN ~ 1.4UN (60s, 20°C±5°C)
Electrode and shell test voltage
1.2UN ~ 1.5UN (60s, 20°C±5°C)
Reference standard
JB/T 8168-2023
Typical specification parameters
The specific energy of current impacting capacitors is up to 2.6 J/L. (Products of other specifications and sizes can be designed and produced according to user needs.)
Ordering instructions
Due to the relatively special use of current impulse capacitors, customized products are usually adopted to meet various requirements. After receiving your enquiry, we will arrange special technicians to be responsible and communicate and coordinate with your technicians.
The delivery date for current impulse capacitors usually takes 45 to 90 days. For small-batch, please confirm with the person in charge whether there are ready-made materials to save this delivery time. For larger projects, it is more appropriate to order capacitors two to three months in advance.
One major characteristic of metallized film capacitors is concentrated early failure. We eliminate defective materials through comprehensive inspection, detection, and simulation of actual working equipment and methods to ensure product quality.
Frequently Asked Questions (FAQ)
What are the primary application fields for these capacitors?
They are primarily utilized in high-voltage energy storage systems, including high-voltage impulse generators, high-power pulse power supplies, strong magnetic fields, high-energy accelerators, thermonuclear reaction test devices, strong lasers, and strong beam currents.
Can the technical specifications be customized for specific requirements?
Yes. While typical specifications offer specific energy up to 2.6 J/L, products of other sizes and specifications can be custom-designed and produced according to specific user needs.
What is the standard delivery timeframe for these capacitors?
The typical delivery period for current impulse capacitors ranges from 45 to 90 days. For urgent or small-batch needs, checking for ready-made materials is advised. For large-scale projects, ordering 2 to 3 months in advance is recommended.
How is the quality of the metallized film capacitors guaranteed?
We eliminate potential early failures through rigorous, comprehensive inspection, strict detection procedures, and simulation tests under actual working equipment environments to ensure stable final quality.
What is the operating temperature range for these impulse capacitors?
The standard operating temperature range for these capacitors is engineered to perform reliably from -40°C up to +85°C.
