Product Description

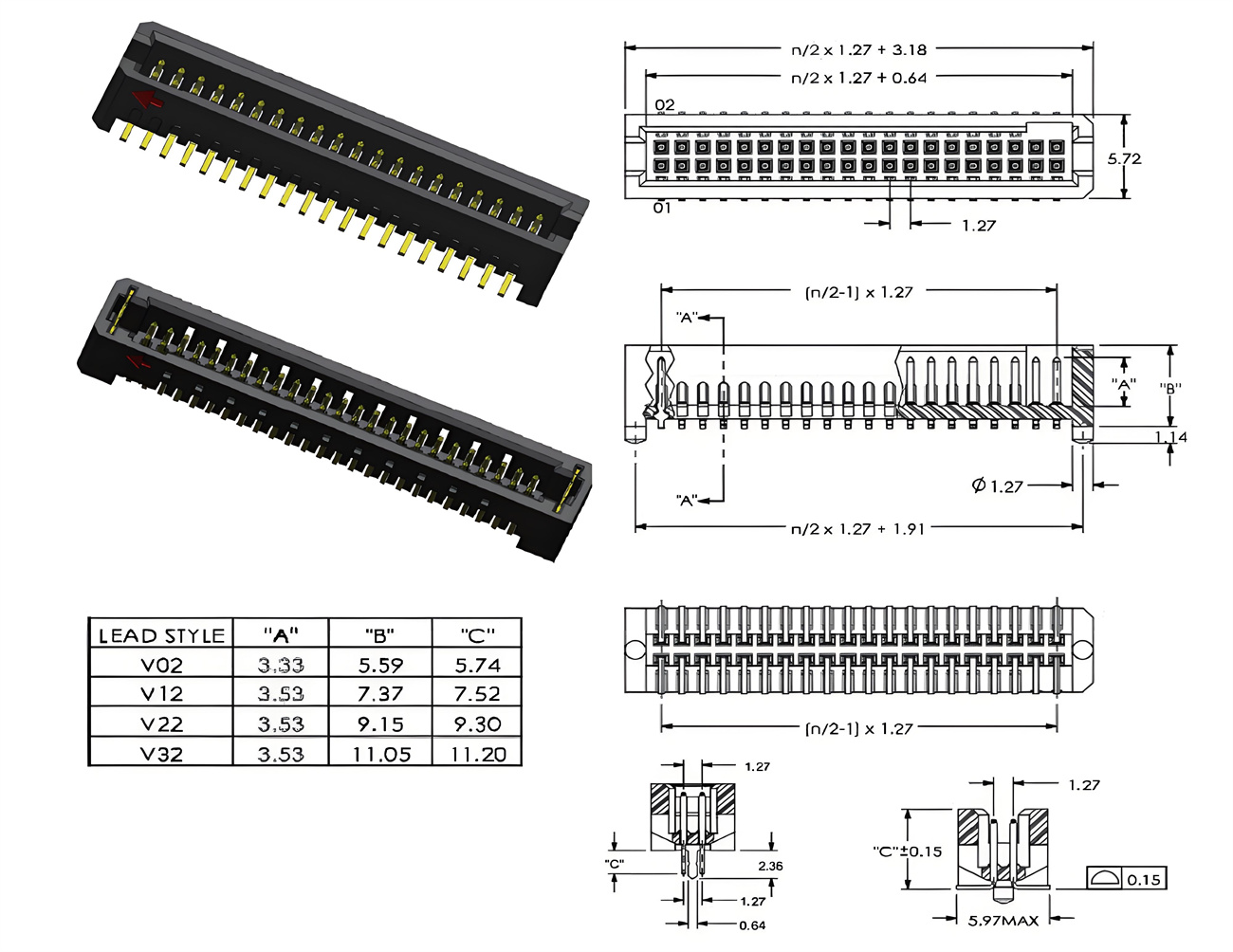

Round Hole Series - 1.27mm Pitch Plug

(High Speed Transmission Electrical Connectors)
Round Hole Series - 1.27mm Pitch Plug
Material number: 84 TFM-XXXVXXGXXT-XX
Insulation material: black LCP
Terminal Material: Phosphor Bronze
Plating Options: Max 50u" Gold Plated on Nickel
Rated current: 3.2A per pin
Rated voltage: 235 VAC
Matching height: 6.35mm-11.81mm
Pin size: 10 pin to 100 pin
Operating temperature: -55℃ to +125℃
Transmission rate: 6/12 Gbps
Maximum friction distance: 0.77mm
Coplanarity: 0.15 mm
Compliance: Lead-Free

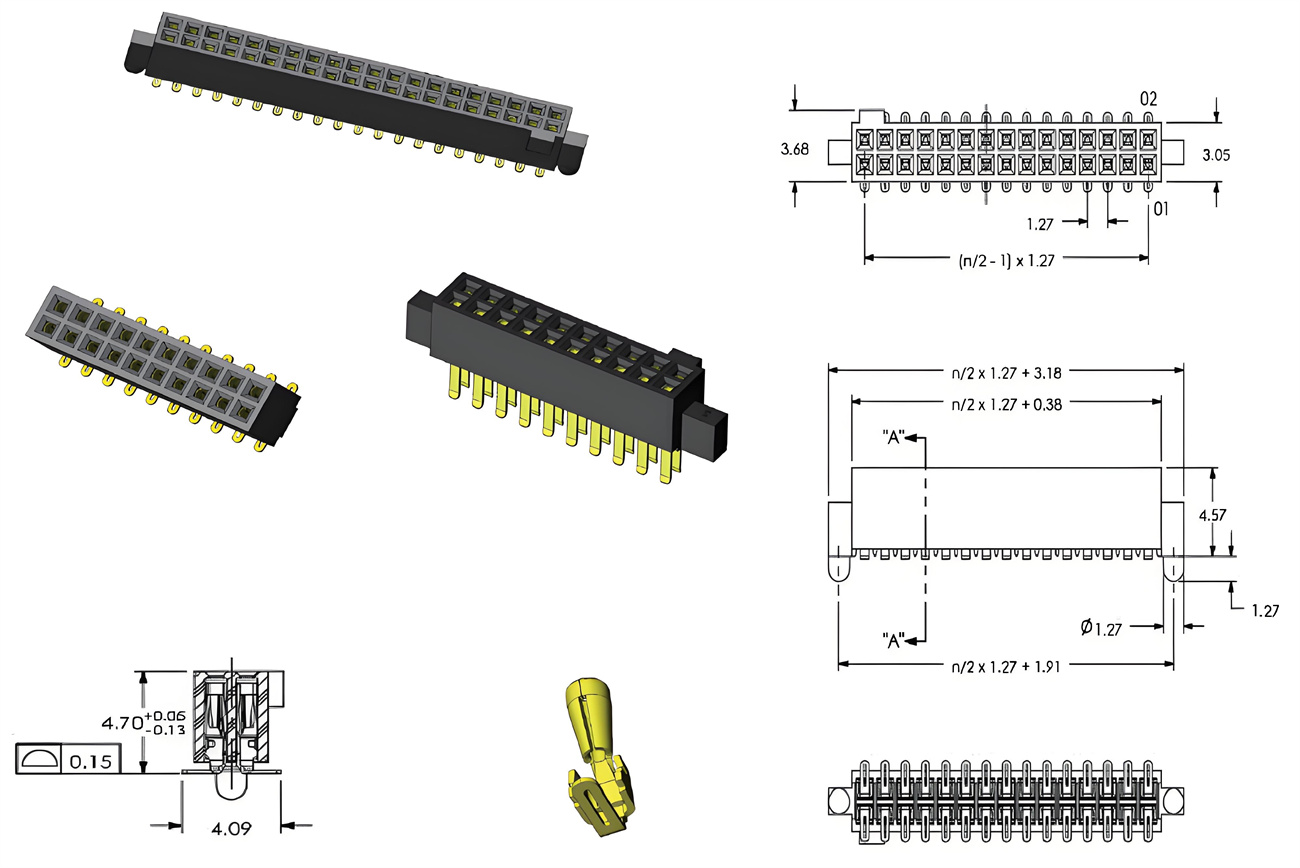

Round Hole Series - 1.27mm Pitch Socket

(High Speed Transmission Electrical Connectors)
Round Hole Series - 1.27mm Pitch Socket
Material number: 85 SFM-XXXVXXGXXT-XX
Insulation material: black LCP
Terminal Material: Phosphor Bronze
Plating Options: Max 50u" Gold Plated on Nickel
Rated current: 3.2A per pin
Rated voltage: 235 VAC
Matching height: 6.35mm-11.81mm
Pin size: 10 pin to 100 pin
Operating temperature: -55℃ to +125℃
Transmission rate: 6/12 Gbps
Maximum friction distance: 0.77mm
Coplanarity: 0.15 mm
Compliance: Lead-Free

Frequently Asked Questions (FAQ)

Q What is the transmission rate of the Round Hole Series 1.27mm pitch connectors?
These high-speed transmission electrical connectors support data transmission rates of 6 to 12 Gbps, ensuring reliable high-speed signal integrity.
Q What matching heights are available for these plugs and sockets?
The connectors feature a versatile matching height range starting from 6.35mm up to 11.81mm to fit various board-to-board layout configurations.
Q What are the pin size options and rated current per pin?
The pin configurations range from 10 pin to 100 pin, and each individual pin supports a rated current of up to 3.2A.
Q Are these connectors suitable for extreme temperature environments?
Yes, they are engineered to perform reliably under challenging thermal conditions, with an operating temperature range of -55℃ to +125℃.
Q What materials are used for the insulation and contacts?
The insulation body is made of durable black LCP (Liquid Crystal Polymer), and the contact terminals are made of Phosphor Bronze with gold plating (up to 50u") on nickel.
