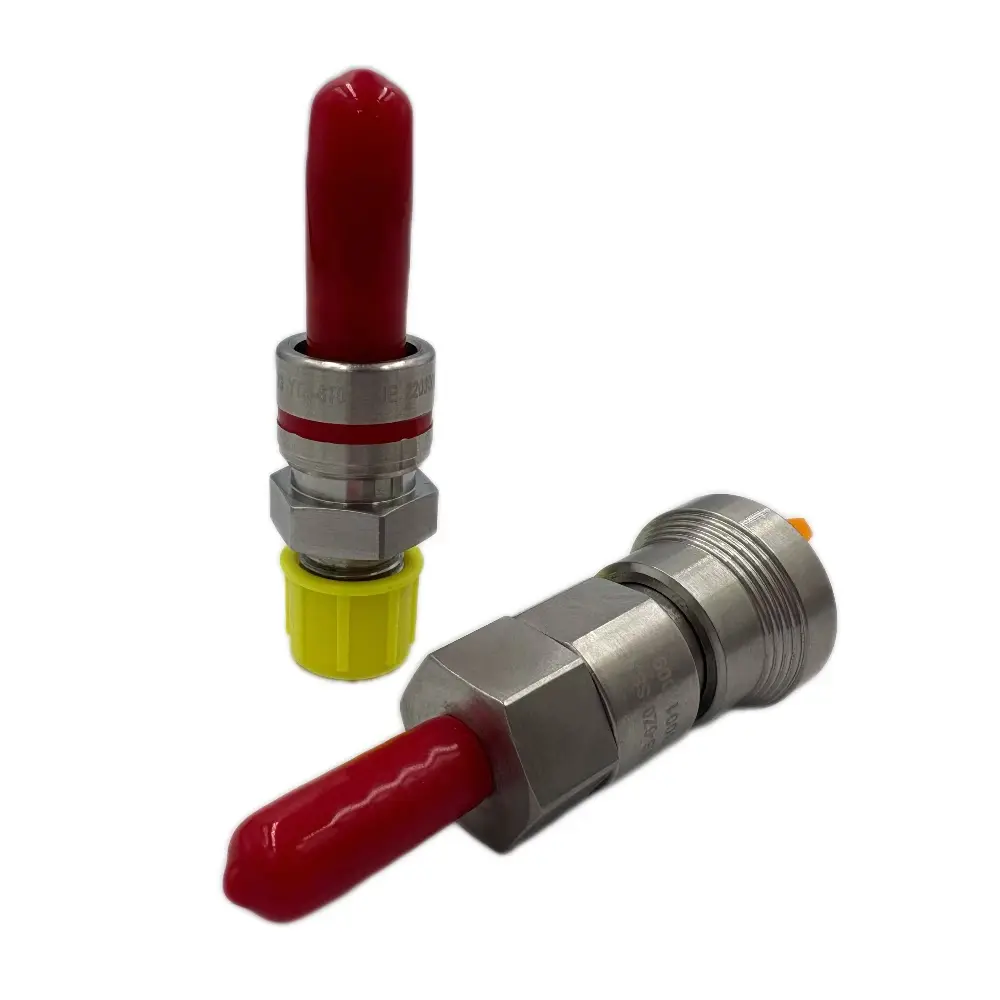

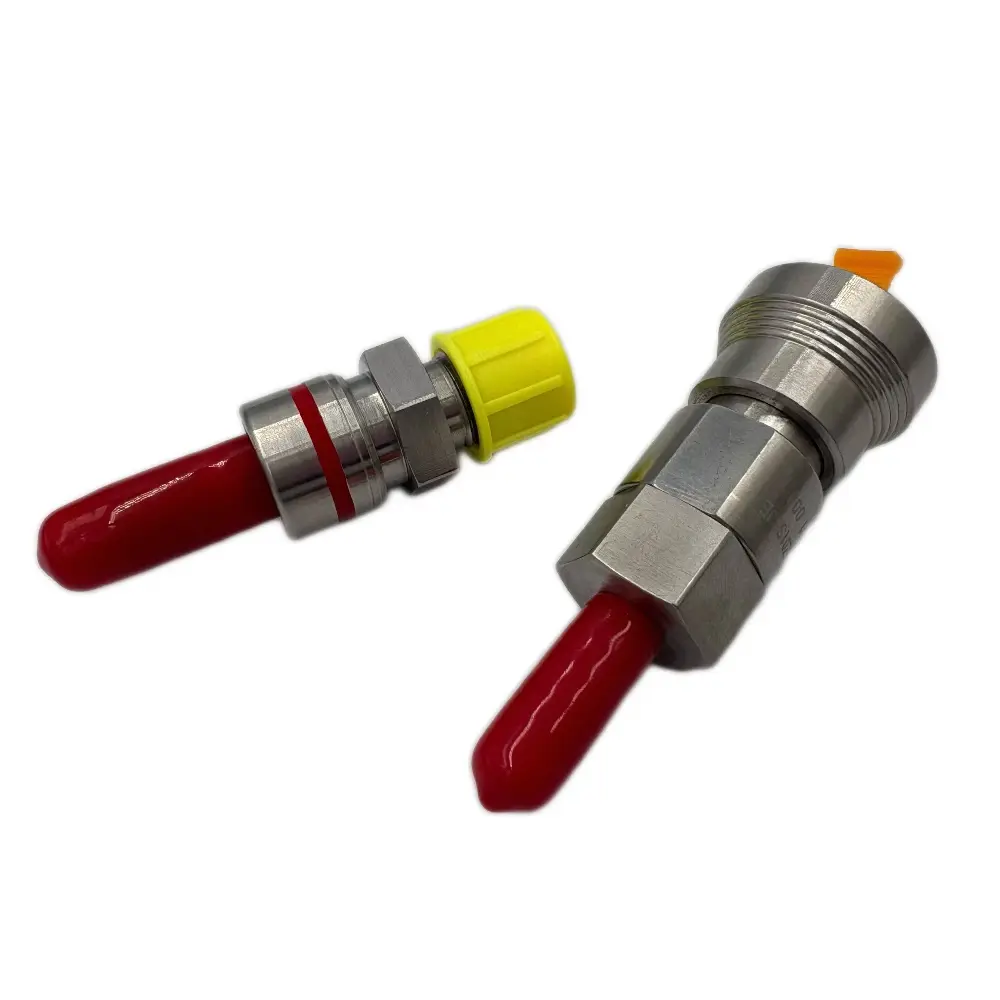

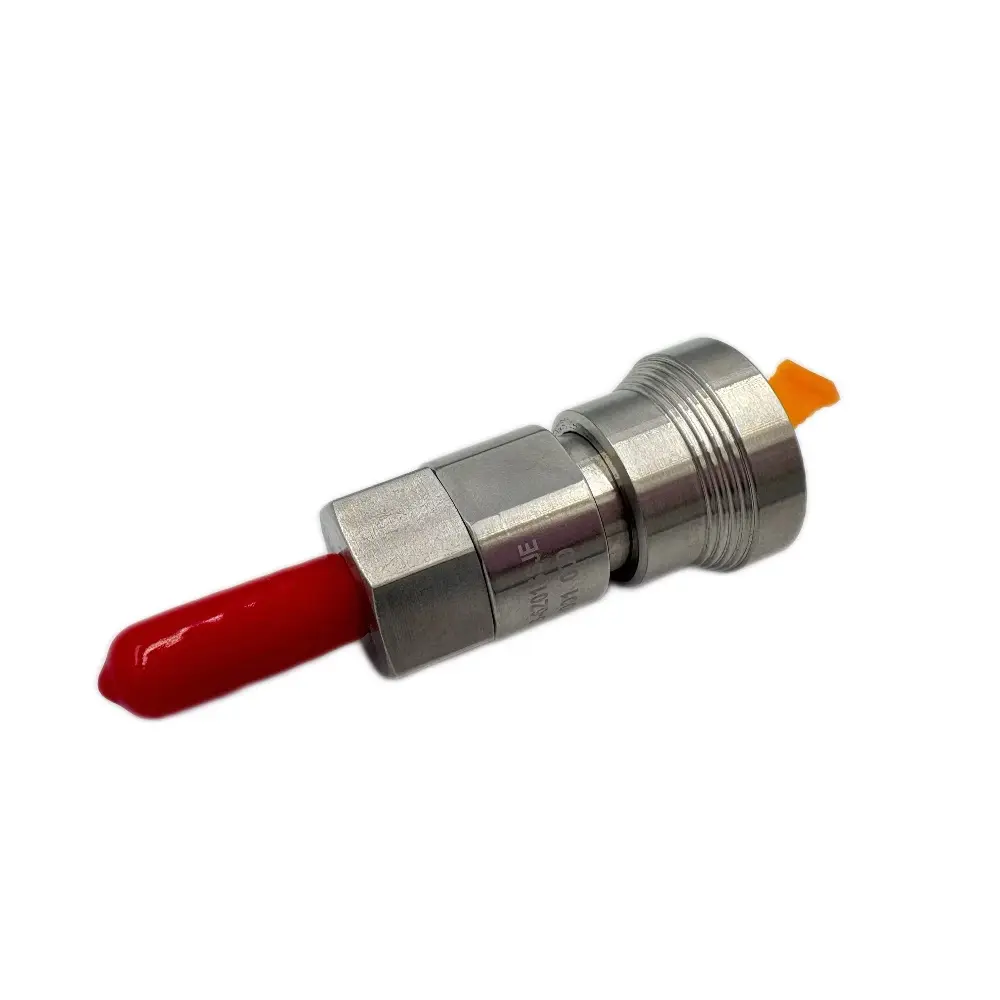

Wholesale Bayonet-Locking Type Fluid Connector(YTB Series) Manufacturer, Exporter

Bayonet-Locking Mechanism:Enables fast plugging and unplugging.

Automatic Sealing: Ensures automatic sealing and prevents leakage when disconnected.

Leak-Free Operation: No internal fluid leakage occurs during normal plugging and unplugging.

Optimized Valve Design: Maximizes flow rate through advanced internal valve engineering.

Stainless Steel Shell: Available in corrosion-resistant stainless steel for critical applications.

Compact & User-Friendly: Small structural dimensions with easy connection/disconnection.

Versatile Installation: Simple to install, suitable for diverse environments and mounting requirements.

Send Inquiry

Product Description

Applications & Operational Environment

The YTB series of fluid connectors are widely used in various liquid cooling systems. They are mainly used for connecting the coolant inlets and outlets of chassis, power supplies, T/R components, etc. in ground and ship-borne environments.

Technical Performance

Operating Temperature -55 °C to +90 °C

Operating Pressure 0~1.5MPa

Working Medium Antifreeze, purified water (Liquid Purity: Shall not be lower than GJB420B Class 9)

Seal Ring High-strength fluorosilicone rubber, EPDM rubber

Shell Material Stainless Steel Passivation

Shock Test Half-sine wave, peak acceleration 30g, pulse duration 40 ms, 5 cycles per axis

Random Vibration Test 15 to 2000 Hz, power spectral density 0.04 g²/Hz, duration 0.5h

Salt Spray Test 96h

Frequently Asked Questions (FAQ)

What are the primary applications for YTB series fluid connectors?

They are widely used in liquid cooling systems, specifically for connecting coolant inlets and outlets of chassis, power supplies, and T/R components in ground and ship-borne environments.

What is the operating temperature range for these connectors?

The YTB series fluid connectors are designed to operate reliably in temperatures ranging from -55 °C to +90 °C.

What materials are used for the sealing rings and shell?

The sealing rings are made from high-strength fluorosilicone rubber or EPDM rubber, while the shell material is constructed from passivated stainless steel.

What working media are compatible with these connectors?

These connectors are compatible with antifreeze and purified water. The liquid purity should not be lower than GJB420B Class 9.

How do the YTB connectors perform under vibration and shock testing?

They undergo rigorous testing, including shock tests (half-sine wave, peak 30g, 40 ms) and random vibration tests (15 to 2000 Hz, 0.04 g²/Hz, 0.5h) to ensure stability in harsh conditions.
