What is the maximum transmission rate supported by the 80X Series connectors?
The 80X Series high-speed transmission electrical connectors support a maximum transmission rate of up to 25 Gbps, making them ideal for high-performance applications.

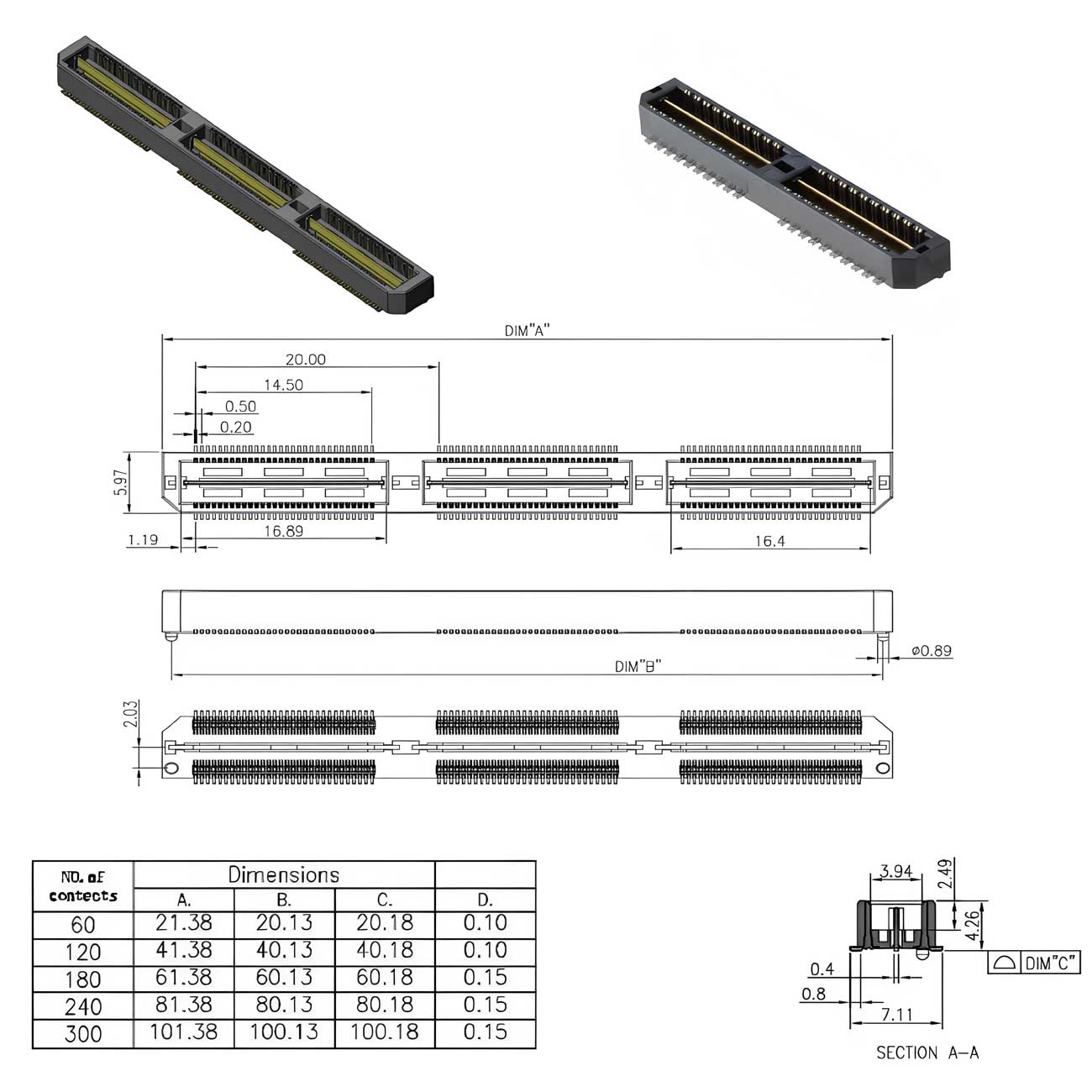

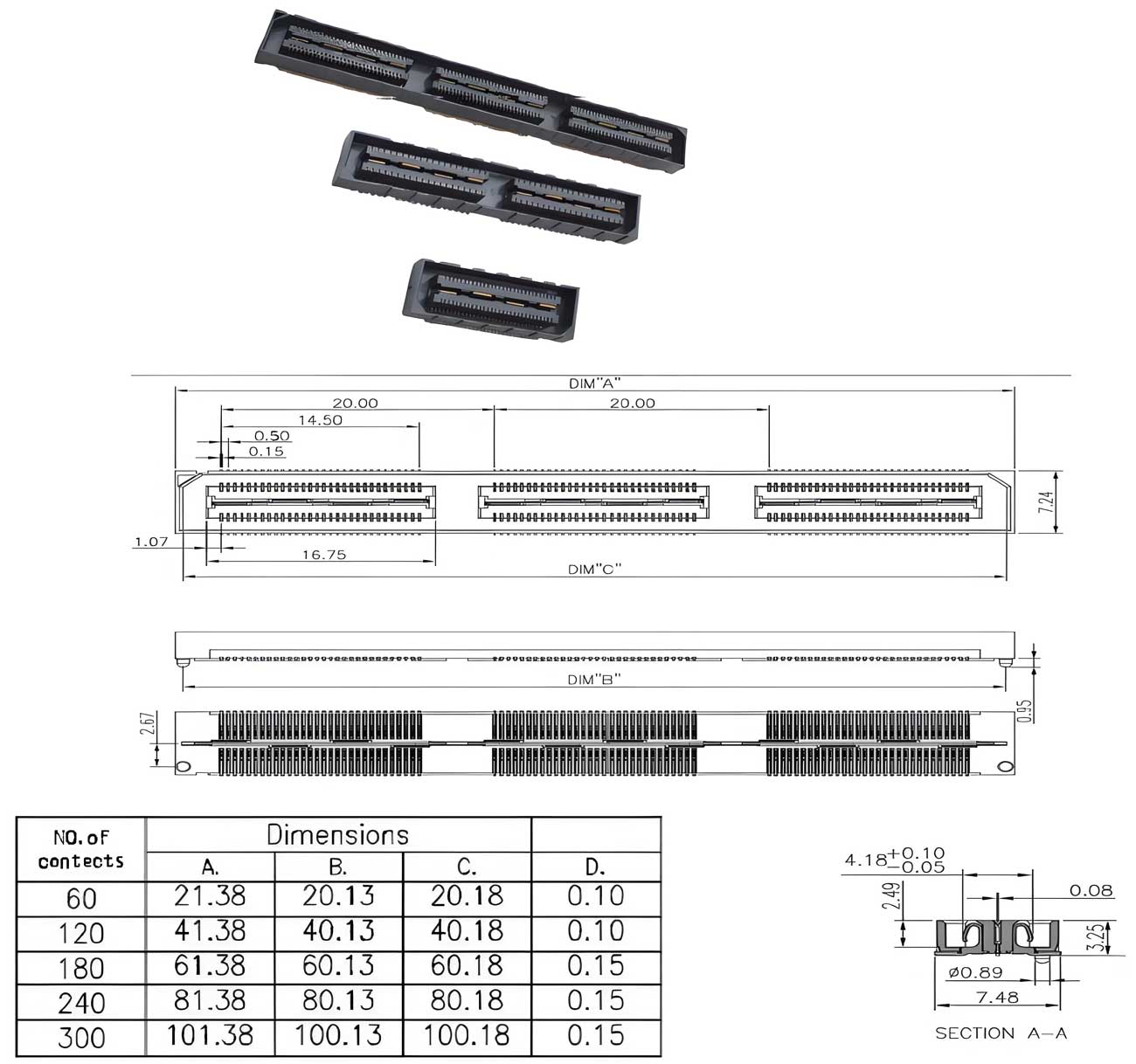

What mating heights are available for these connectors?
Both the standard and differential versions of the 80X Series plugs and sockets support a versatile matching height range from 5.00 mm up to 25.00 mm.

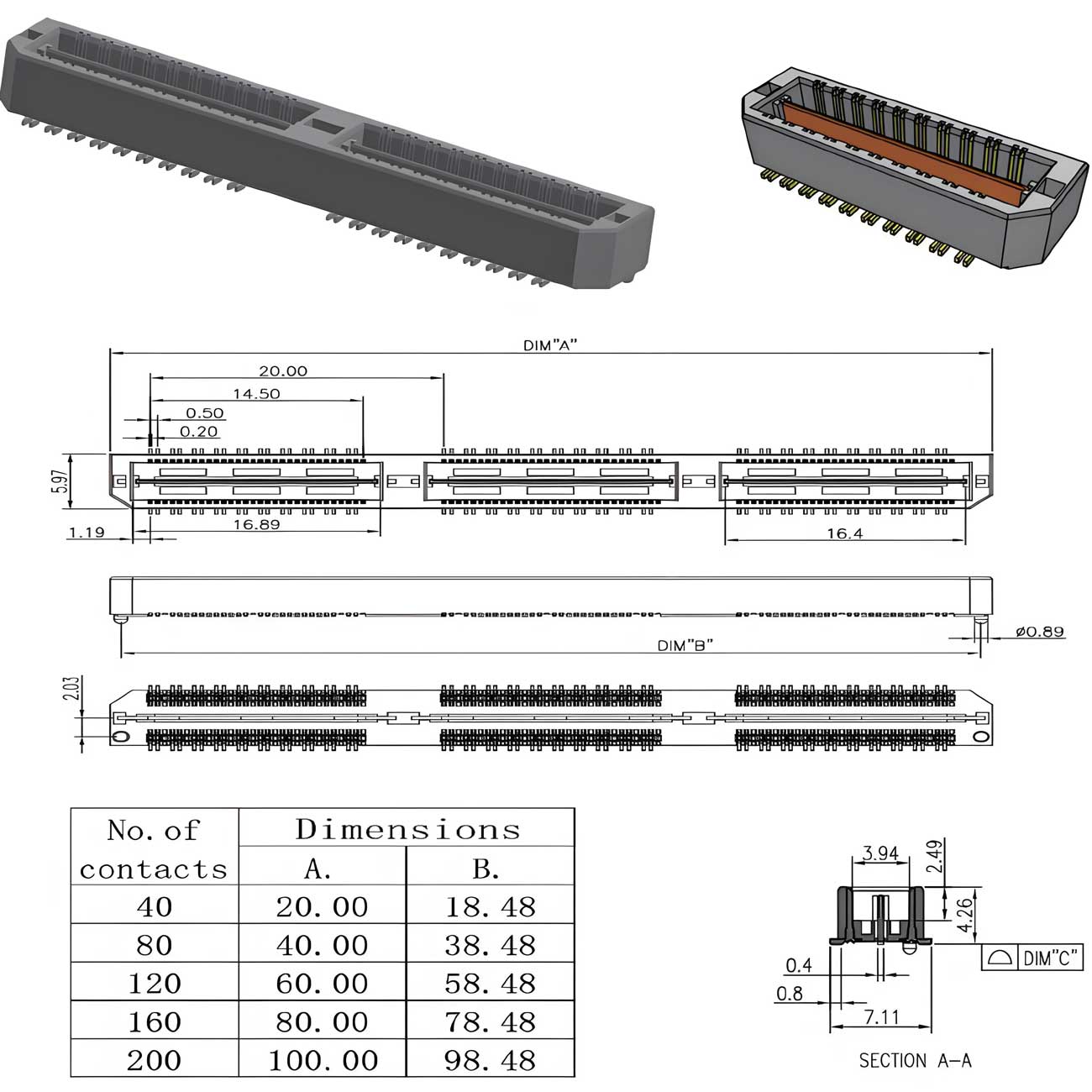

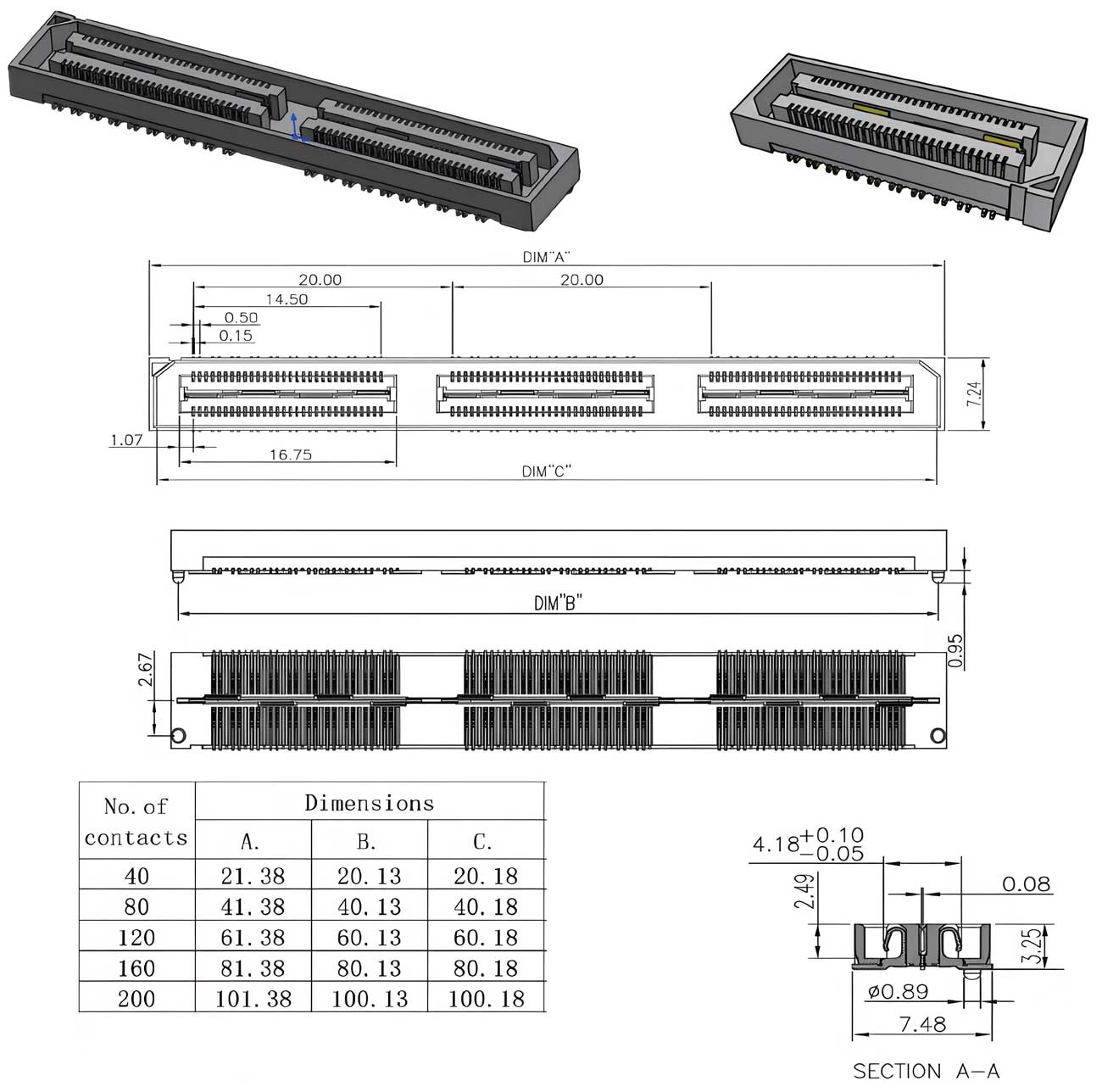

What are the pin count options for the differential plug and socket?
The differential versions (plug and socket) are available in specifications of 40, 80, 120, 160, and 200 PINs, while the standard version supports sizes from 60 to 300 PINs.
What materials are used for insulation and terminals in the 80X Series?
These connectors feature high-quality black LCP as the insulating material, phosphor bronze for the terminals, and plating options of up to 50u" Gold Plated on Nickel.
What is the operating temperature range for these high-speed connectors?
The 80X Series connectors are designed to operate reliably in extreme environments, with an operating temperature range of -55℃ to +125℃.
Are the 80X Series connectors lead-free and compliant?
Yes, all specifications of the 80X Series connectors—including standard and differential plugs and sockets—are Lead-Free.
