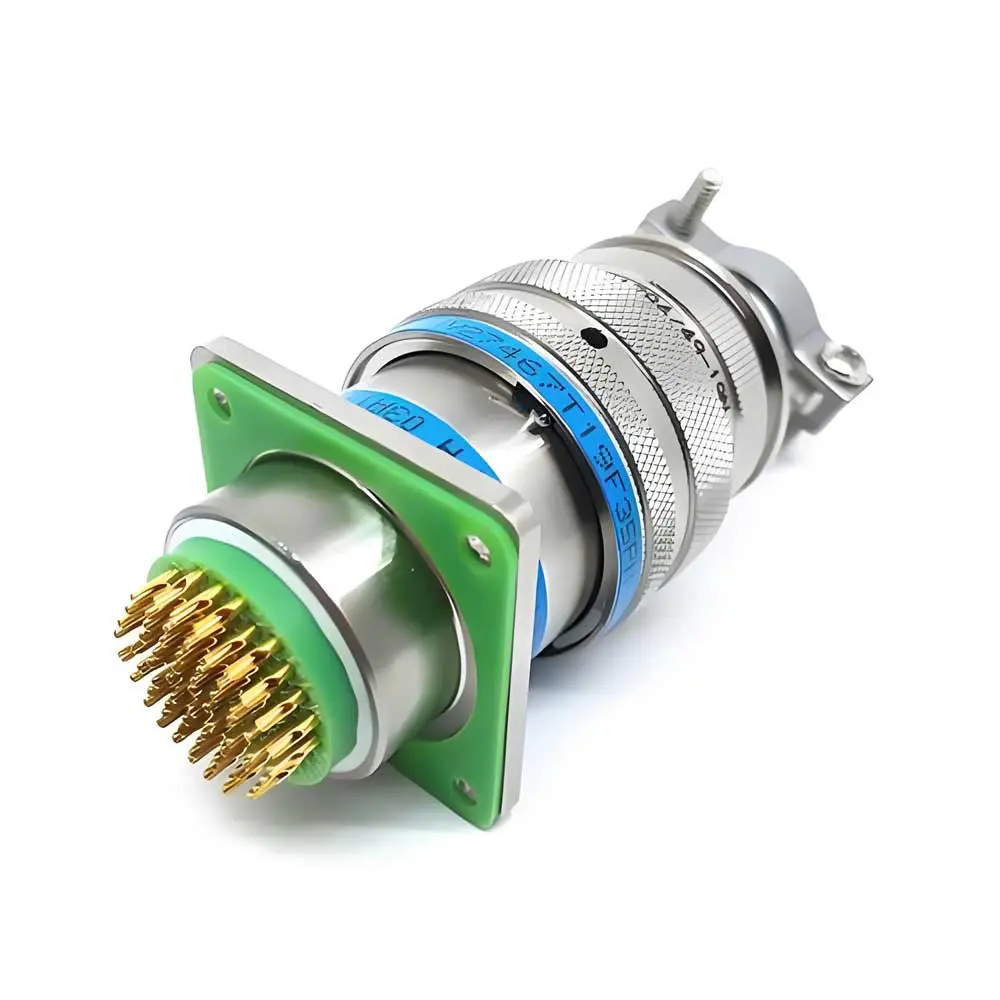

599â…¡ product is a small circular electrical connector. This product uses an advanced crimp termination method, features high reliability, and is suitable for signal transmission and electrical connection between devices under various environmental conditions. It is widely used in fields such as aviation, aerospace, electronics, ships, satellites, weapons, and the information industry.

Send Inquiry

Product Description

Production Introduction

Bayonet-style quick connection.

In the 599 series, it has the smallest volume, lightest weight, and shortest shell.

EMI/RFI Shielding.

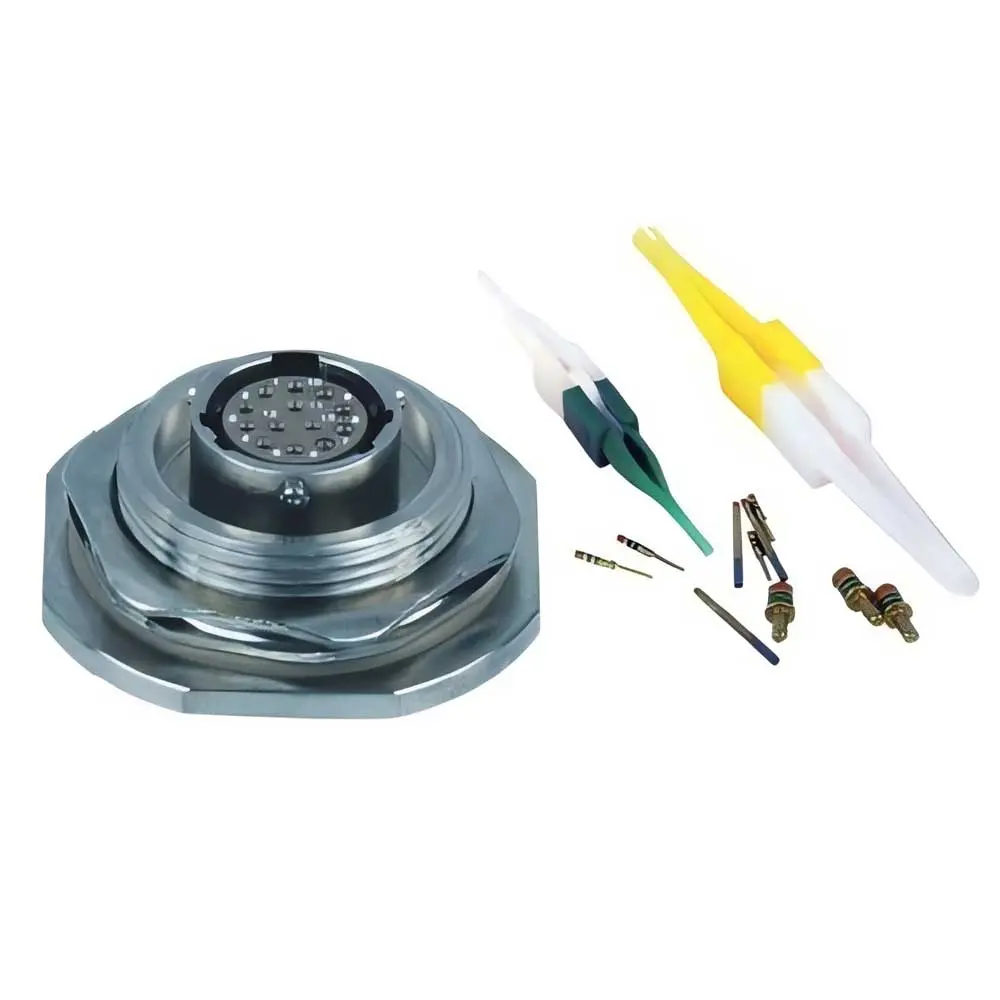

Crimped contacts are removable and do not prevent misinsertion.

Application: Circuit signal connection.

Main Technical Performance

Mechanical Performance

Shell material: Aluminum alloy, Stainless steel

Plating:

• Class B: Cadmium plating with military green
• Class E: Stainless steel passivation
• Class F: Electroless nickel plating

Insulator: Thermosetting Plastic

Cable seal and sealing ring: Silicone rubber

Electrical Performance

Contact Resistance of Contacts and Rated Current:

Contact Specifications	Working Diameter (mm)	Contact Resistance (mΩ)	Rated Current (A)
22D	Φ0.76	≤ 12	5
20#	Φ1.00	≤ 5	7.5
16#	Φ1.60	≤ 2.5	13
12#	Φ2.40	≤ 1.5	23

Electromagnetic Interference Shielding (EMI): Minimum attenuation of 45dB at 100MHz - 1GHz.

Environmental Performance

Operating Temperature:

• Class B: -65°C to +175°C
• Classes E and F: -65°C to +200°C

Salt spray:

• Class B: 500h
• Class E: 1000h
• Class F: 48h

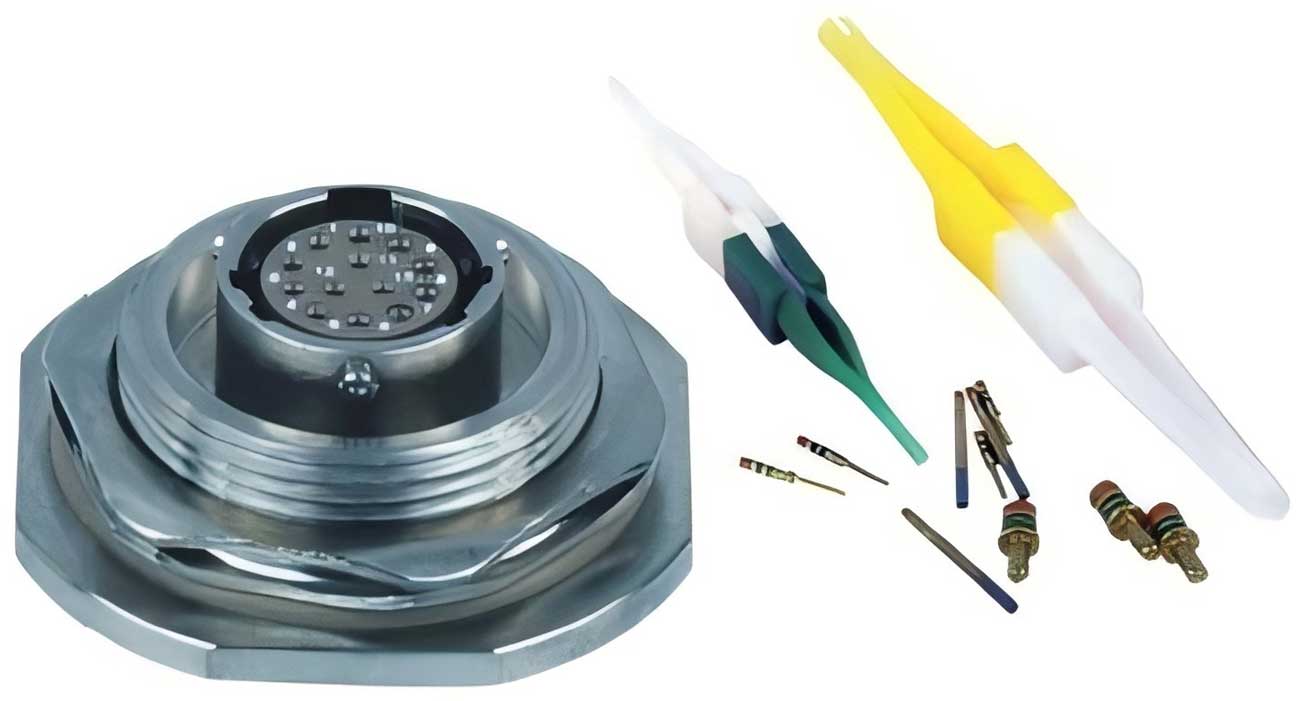

Circular Electrical Connector 599 Series II

Operating Environment

The lightweight electrical connector is suitable for applications not subjected to high-intensity vibration, harsh sand, dust, or humidity.

Mechanical & Structure Features

Contact Features: Gold-plated copper alloy, Crimp type, solder type, (PCB) type.

Mechanical Life: 500 cycles.

Vibration: Random Vibration: Frequency 100 - 1000 Hz, Power Spectral Density 1 g²/Hz.

Shock: 3ms half-sine wave, Peak Acceleration 300g.

Withstand Voltage

Operating Class*	M	I	II
Sea Level	1300	1800	2300
21000m	800	1000	1000

Note: Different contact arrangements have different working levels. For specific working levels, please refer to the letters in the upper right corner of the contact arrangement.

Environmental Limits

Insulation Resistance: Normal ≥ 5000MΩ; Humid ≥ 100MΩ.

Electrical continuity between shells:

• Class B: ≤ 2.5mΩ
• Class F: ≤ 1.0mΩ
• Class E: ≤ 50mΩ

Relative Humidity: Up to 98% at 40°C.

Operating Altitude: ≤ 30480 m.
