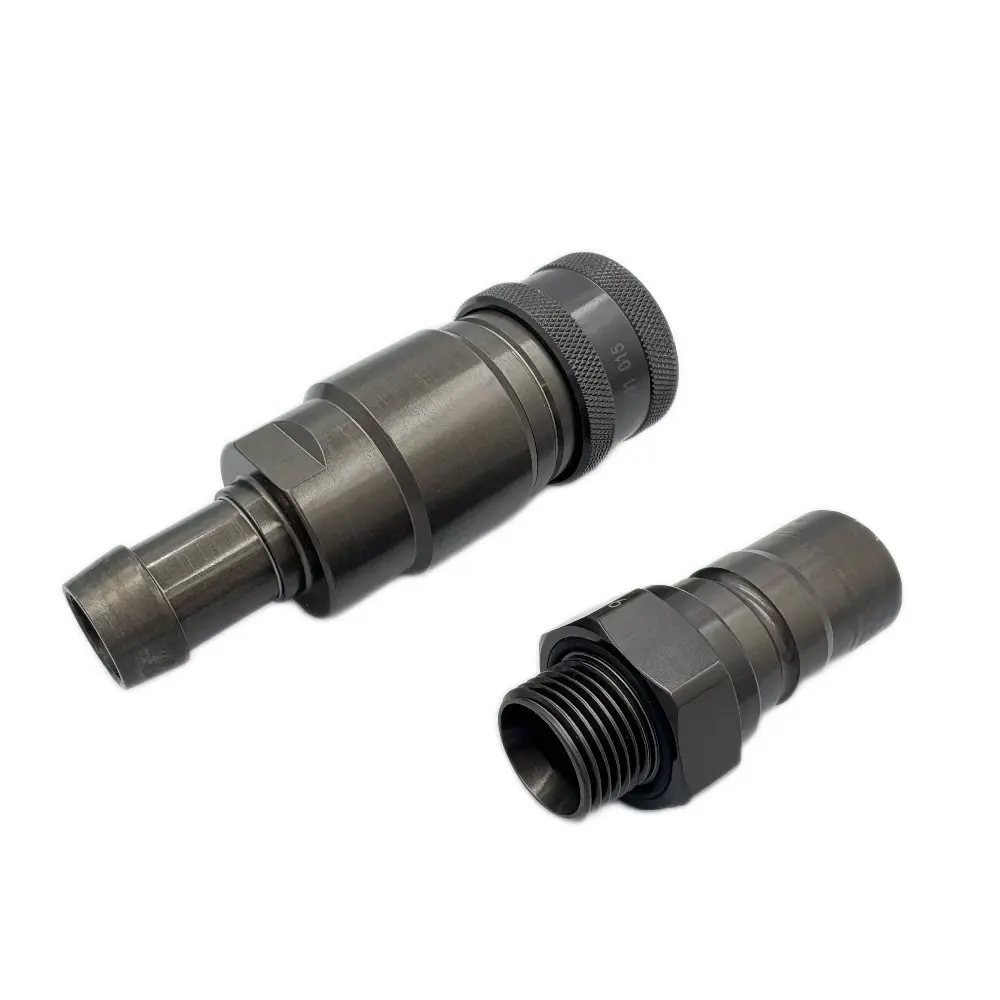

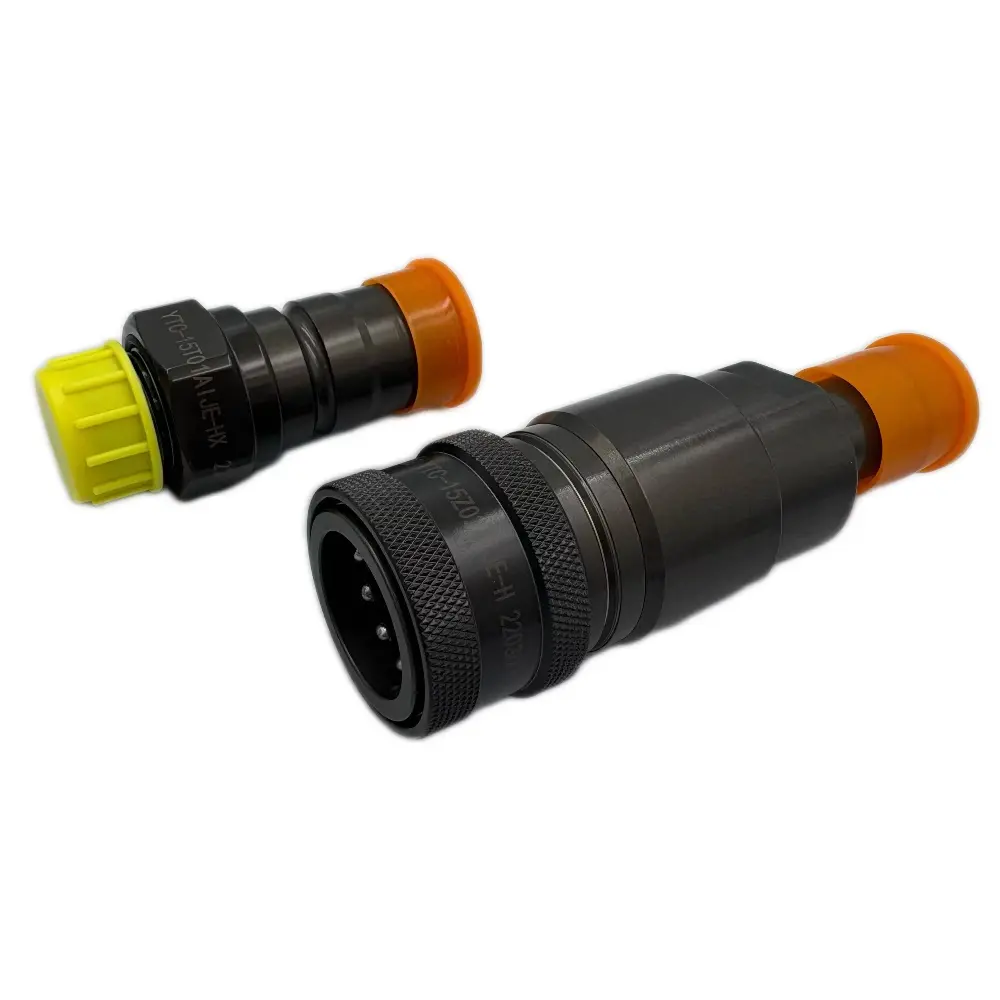

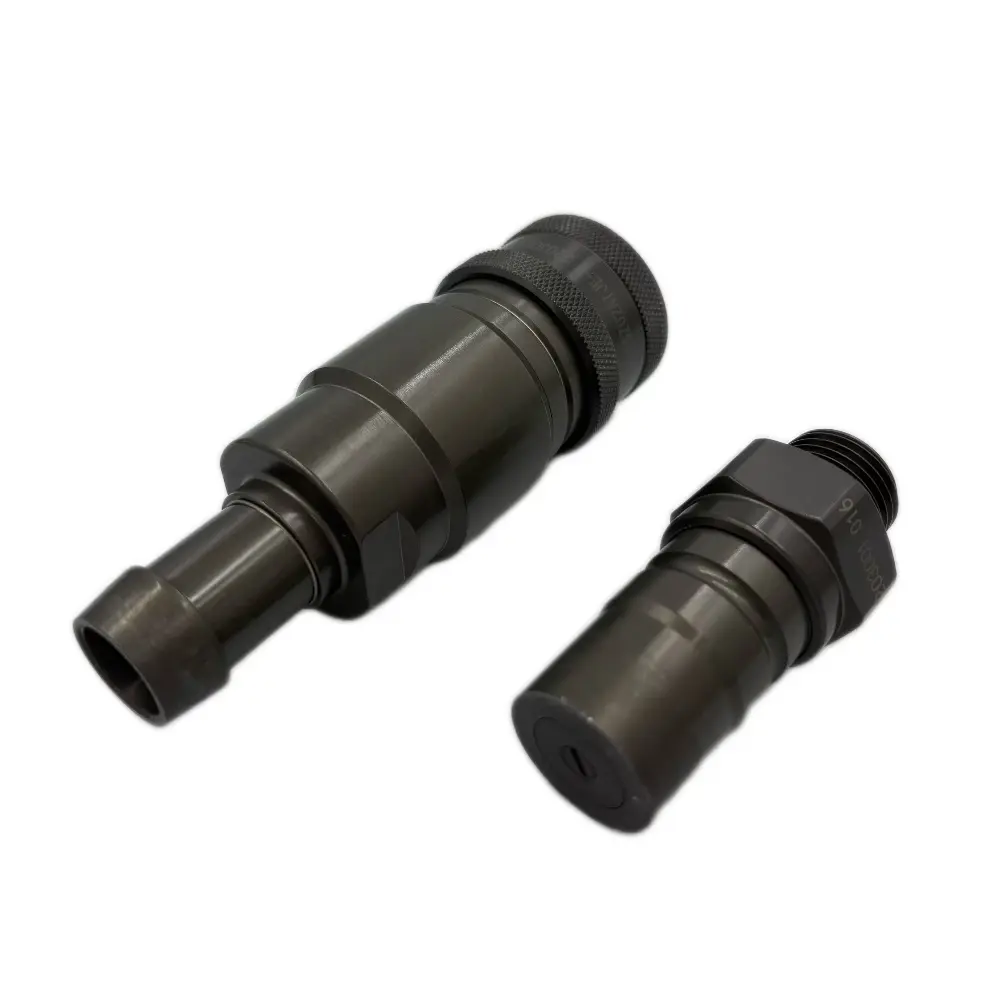

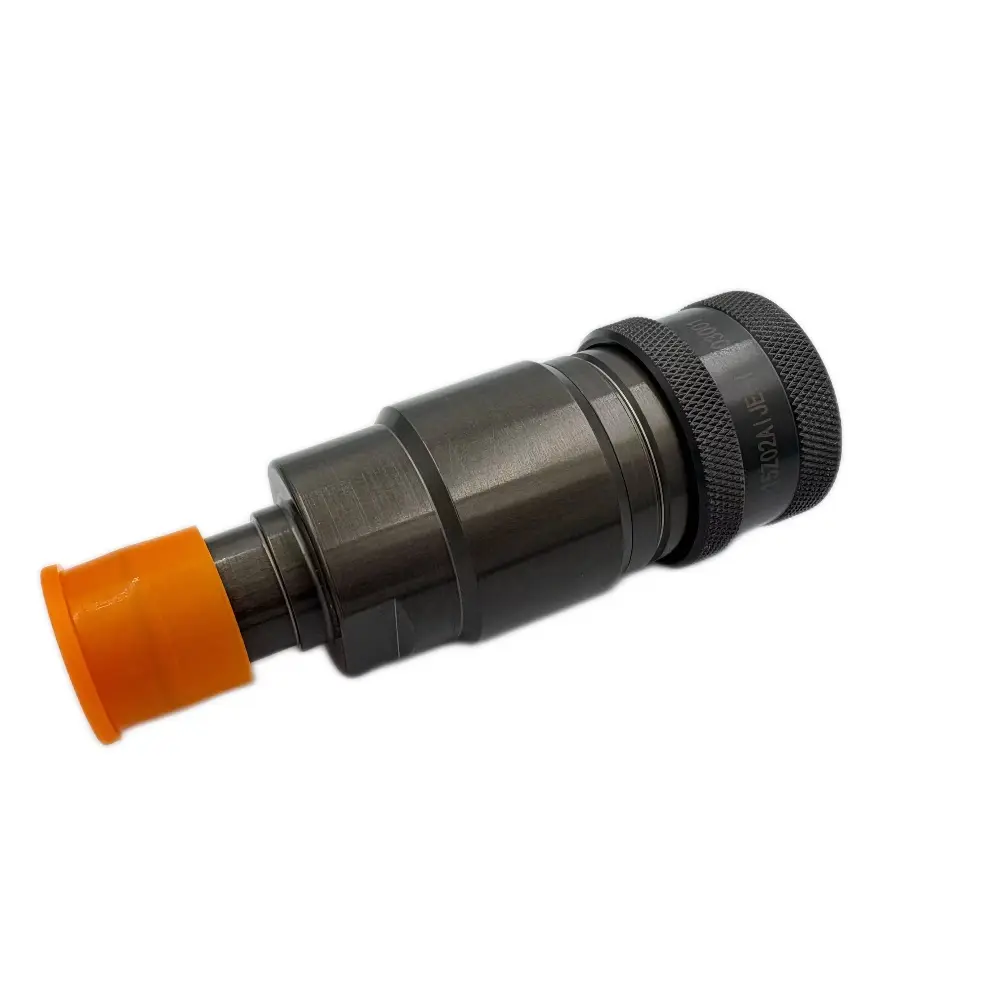

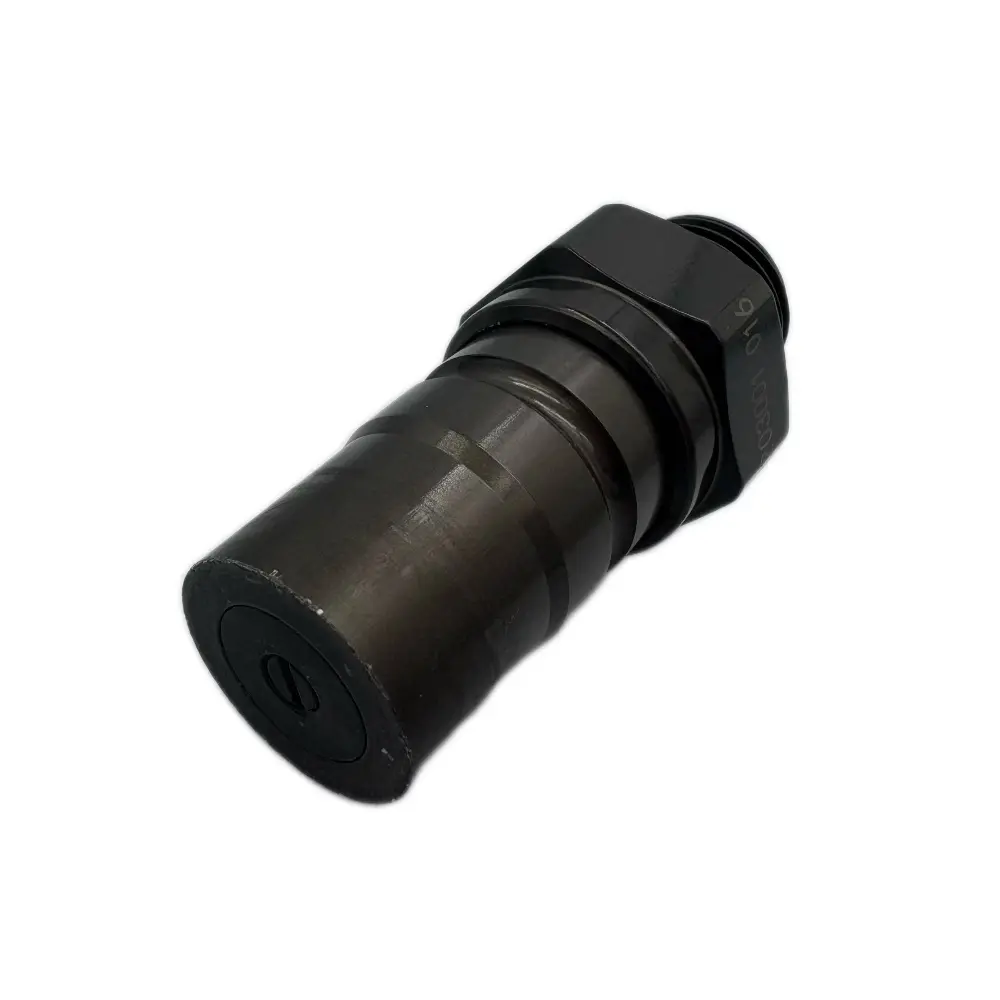

OEM Steel Ball Locking Fluid Connectors(YTC series) Manufacturers, Manufacturer

Ball-Locking Mechanism: Enables locking and disconnection via push-pull operation for user-friendly handling
Dual-Sealed Design: Maintains leak-free sealing in in both plugged and disconnected states, ensuring safety and reliabilityÂ
Robust Construction: Shell material and plating offer high wear resistance and corrosion resistance
Contamination-Resistant: Flat, anti-pollution and leak-proof structure.Â
Versatile Mounting: Multiple installation options for fluid connectors with pipes and cold plates, compliant with sealing connection standards
Customization Available: Contact the company for tailored tail interface designs
Overpressure Protection: YTC self-relieving sockets are recommended for applications requiring overpressure safeguarding

Send Inquiry

Product Description

Technical Performance

Operating Temperature -55 °C to +95 °C

Operating Pressure 0~2MPa

Working Medium Coolant, Deionized Water, etc.

Seal Ring High-strength fluor silicone rubber, EPDM rubber

Shell Material Surface-treated Aluminum Alloy, Stainless Steel

Mechanical Life 1000 mating cycles

Vibration and Shock Meet the requirements of vehicular, marine, and other applications

Salt Spray Test 96h

Frequently Asked Questions

What is the operating temperature range for this product?

This product is designed to function reliably in extreme environments, with an operating temperature range spanning from -55 °C up to +95 °C.

What types of working mediums are compatible with the system?

It is compatible with various mediums, including Coolant, Deionized Water, and other similar fluids specified for industrial and vehicular applications.

What materials are used to ensure the durability of the shell and seals?

The shell is constructed from surface-treated Aluminum Alloy and Stainless Steel for robust structural integrity. The seal rings are made from high-strength fluor silicone rubber and EPDM rubber to ensure leak-proof performance.

How many mating cycles can the mechanical components withstand?

The components are engineered for long-term durability, supporting a mechanical life of up to 1000 mating cycles under standard operating conditions.

Is this product suitable for harsh environments like marine or vehicular use?

Yes, it meets strict vibration and shock requirements for vehicular and marine applications, and has successfully passed a 96-hour salt spray test for corrosion resistance.

What is the maximum operating pressure the system can handle?

The system operates safely within a pressure range of 0 to 2MPa.
