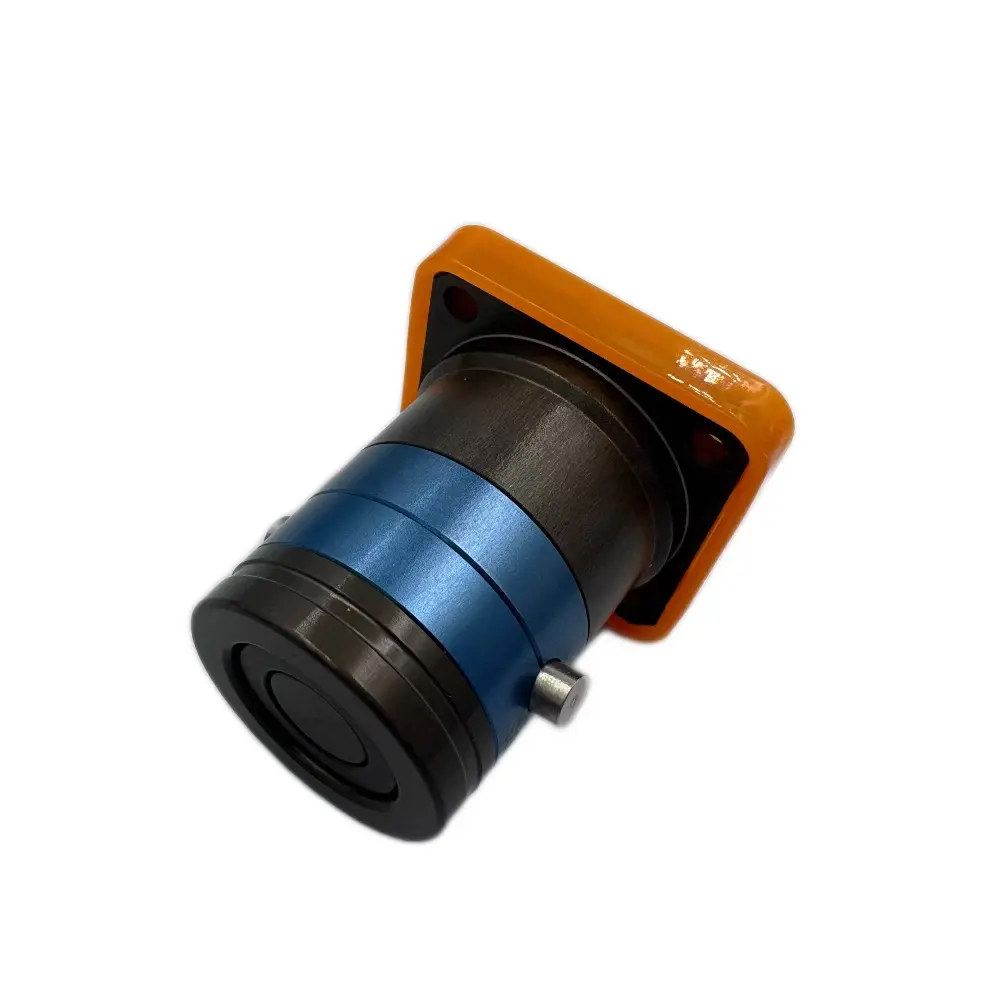

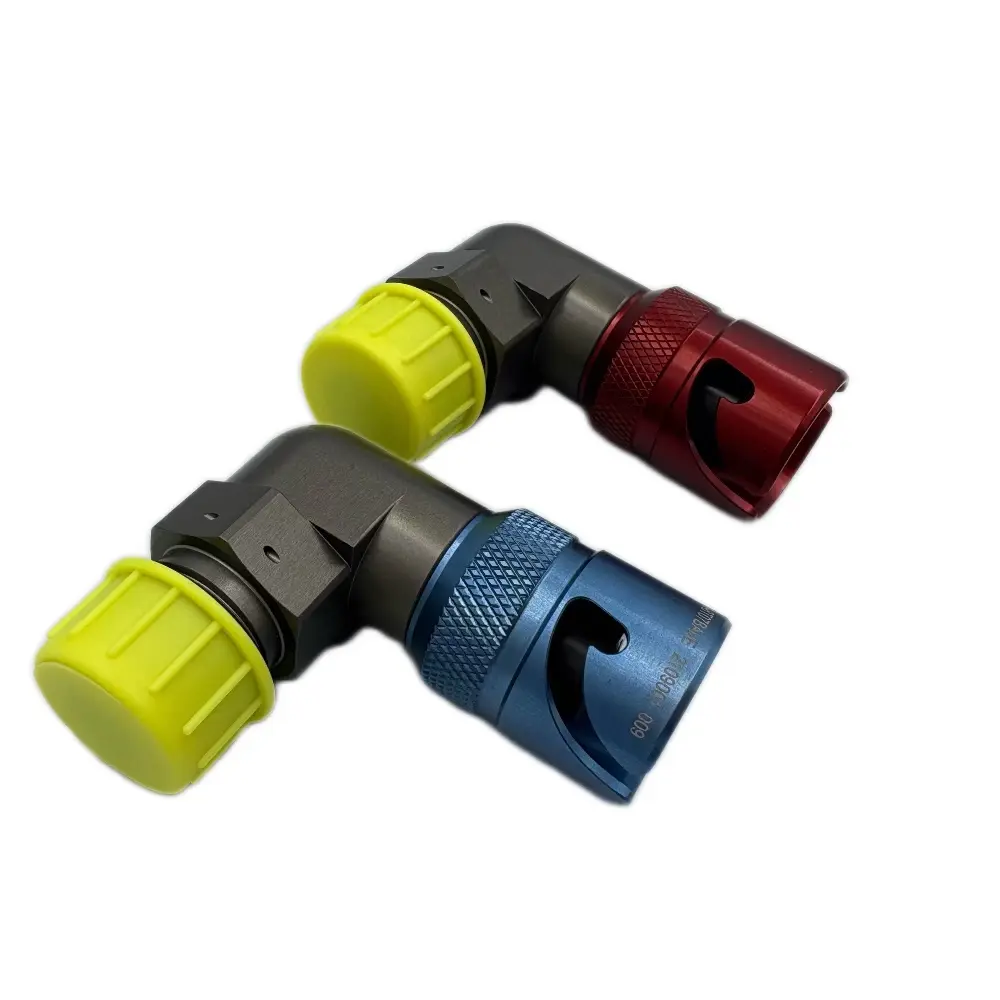

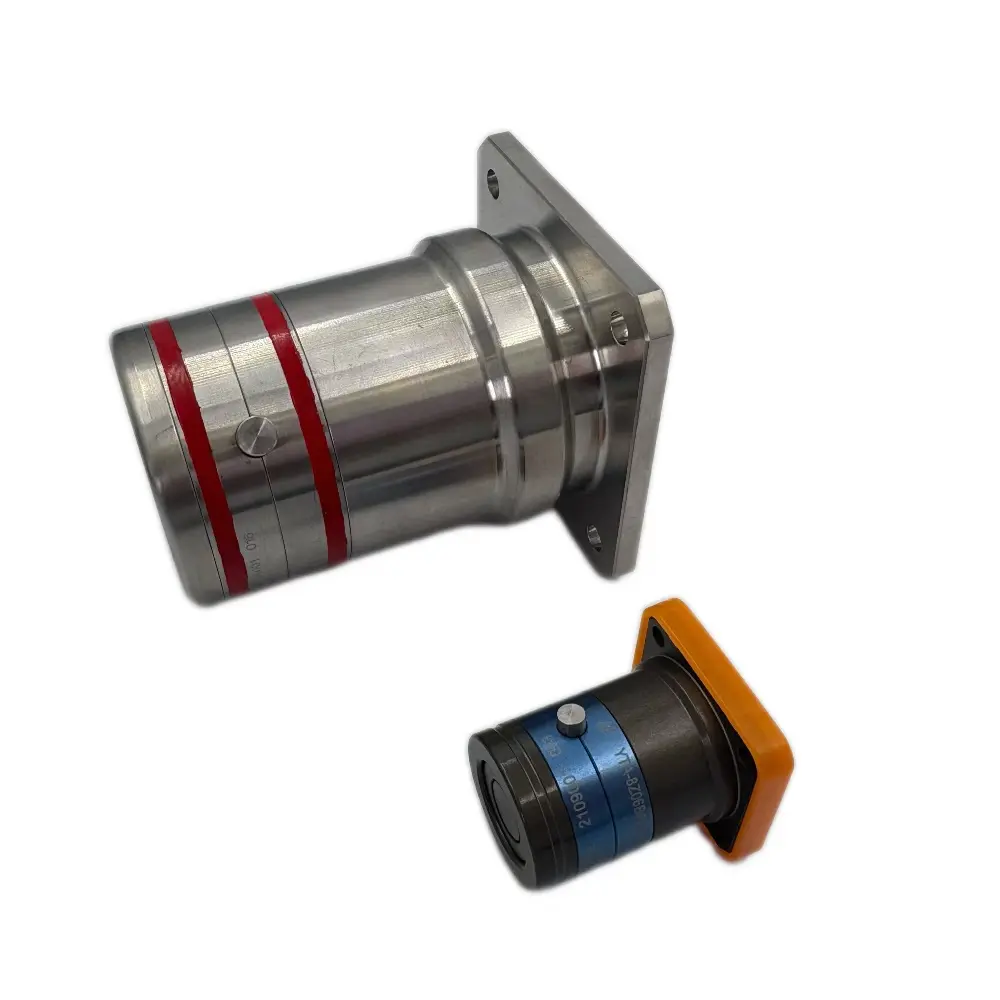

ODM Bayonet-Type Fluid Connector(YTA Series) Manufacturers, Exporter

â— Bayonet locking mechanism enables quick engagement and disengagement via push-pull and twist operations, ensuring ease of use.
â— Both engaged and disengaged positions maintain a sealed, leak-free connection for safe and reliable operation.
â— The shell material and plating offer excellent wear and corrosion resistance.
â— Flat-face contamination-resistant and leak-free structure
â— Fluid connectors have various installation forms with pipelines and cold plates, and comply with sealing connection standards.
â— For custom tail interface requirements, please. contact the company.
â— When over pressure protection is required for equipment, the YTA self-relieving socket is recommended.

Send Inquiry

Product Description

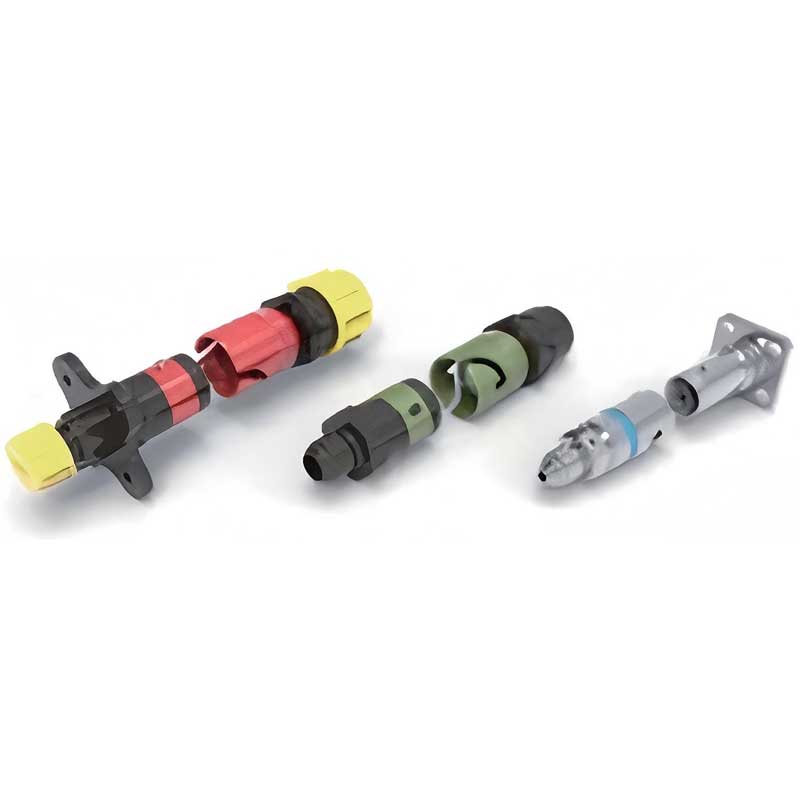

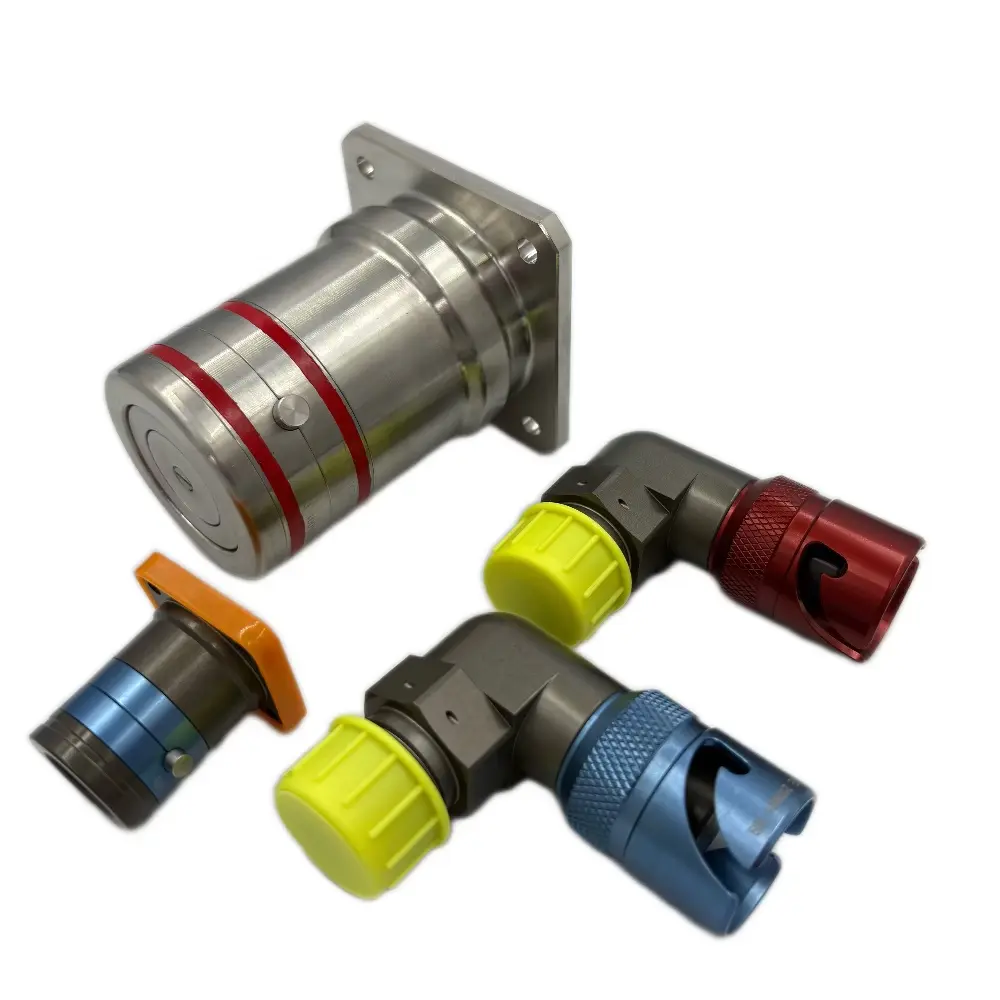

YTA series fluid connector

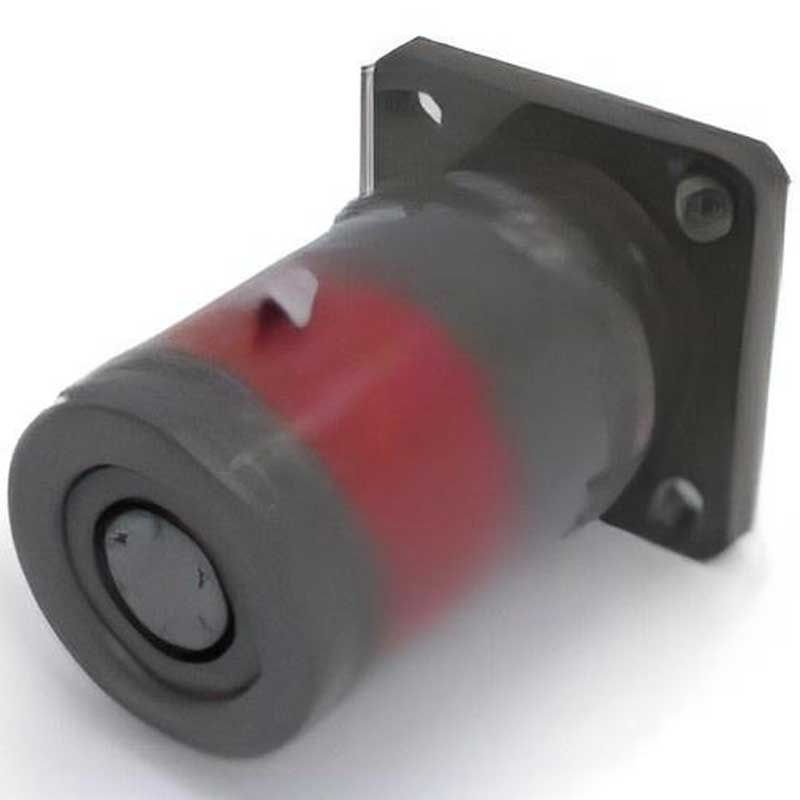

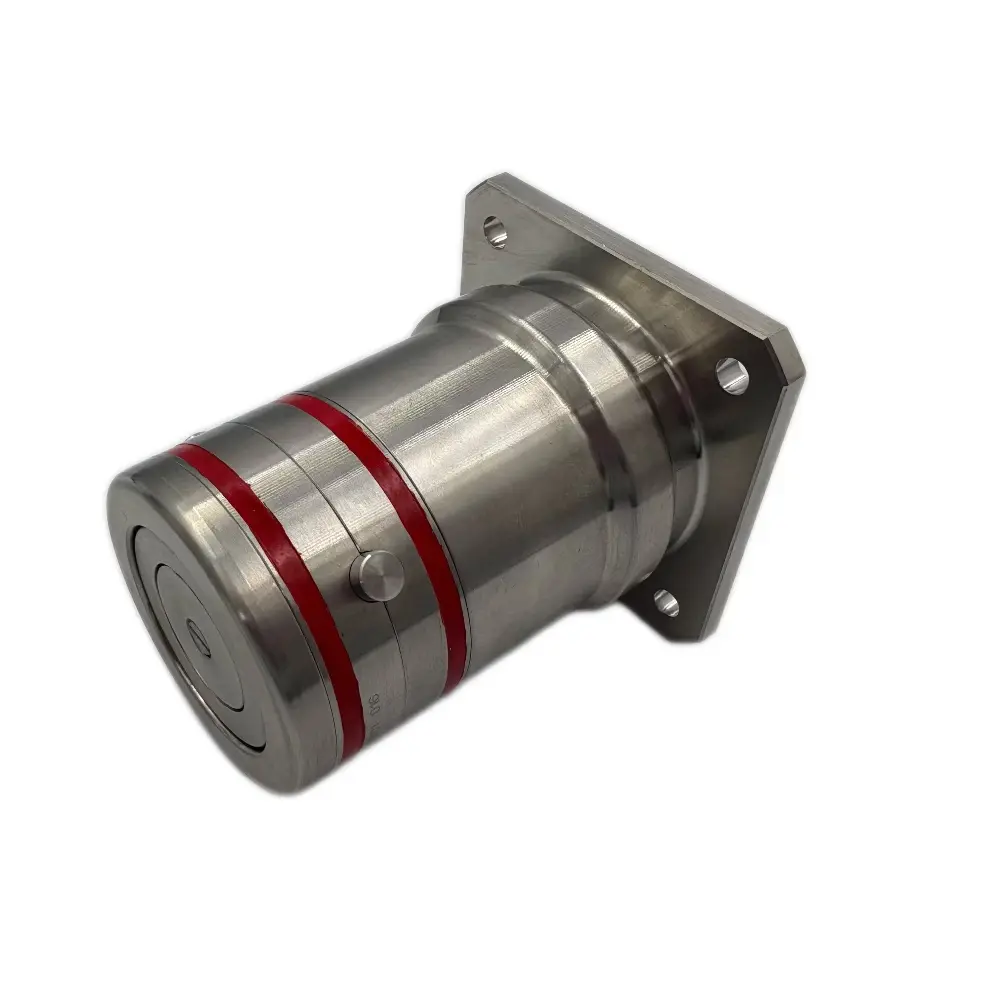

YTA series self-unloading fluid connector socket

Applications and Operating Environment

YTA series fluid connectors are designed for airborne, vehicular, marine, and ground-based environments, enabling quick connections between cold plates and pipes, as well as between pipes. They are primarily used in liquid cooling systems for avionics, radar equipment, wind power converters, high-performance servers, and supercomputers.

Technical Performance

Operating Temperature: -55°C to 95°C

Operating Pressure: 0~2MPa

Service Fluid: Coolant, Deionized Water, etc.

Seal: High-strength fluorosilicone rubber, EPDM rubber

Mechanical life: 1000 plugging cycles

Shell Material: Surface-treated Aluminum Alloy, Stainless Steel

Vibration and Shock: Meet requirements of airborne, marine, etc.

Salt Spray Test: 96h

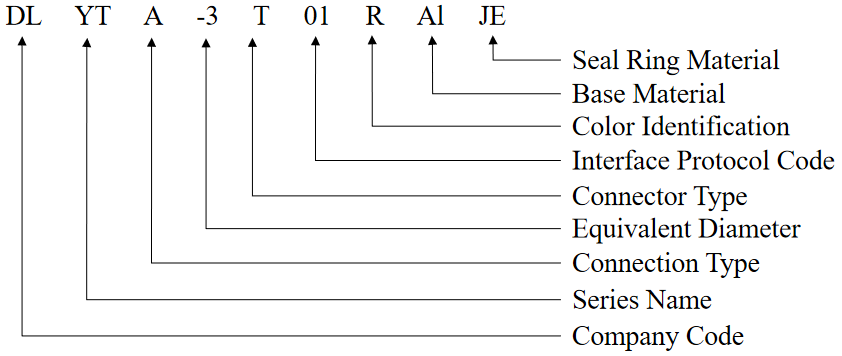

Model Naming

The model is composed of the company code, series main name, connection form, equivalent diameter, connector type, interface code, color identification, base material, sealing ring material. The representation method is as follows:

Model naming example 1

DL-YTA-8Z01RAlJE

Bayonet-type fluid connector with Φ8 equivalent diameter (cross-sectional area: 50 mm²), socket interface, interface code 01, red color, aluminum alloy matrix, selected for Class JE compatible fluid media and operating temperatures.

Model naming example 2

DL-YTA-5T03YTiJM

Bayonet-type fluid connector with Φ5 equivalent diameter (cross-sectional area: 19.6 mm²), plug interface, interface code 03, yellow color, titanium alloy matrix, selected for Class JM compatible fluid media and operating temperatures.

Model Naming of Self-relieving Pressure Sockets

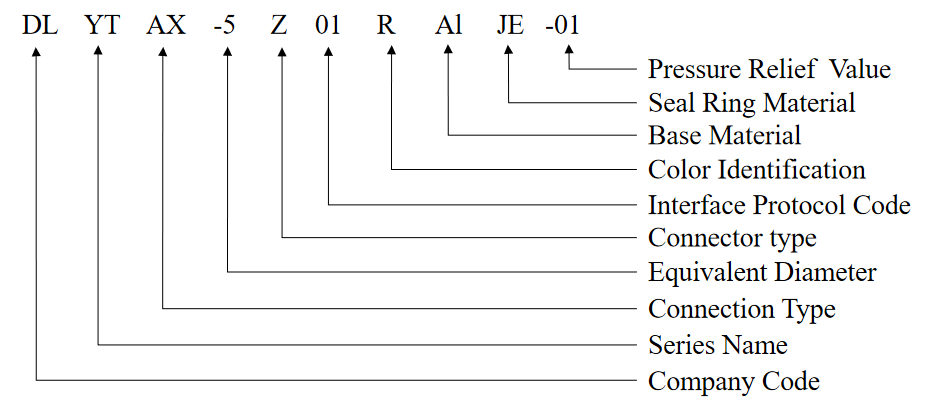

Self-relieving model naming system diagram

Model naming example 1

DL-YTAX-8Z05RA1JM-01

It represents a bayonet-type fluid connector with a self-relieving function. It has an equivalent diameter of Φ8 (cross-sectional area: 50 mm²), and it is a socket. The interface code is 05, and the color is red. The base material is aluminum alloy. It is suitable for the liquid medium and operating temperature of the JM class. The pressure-relief value ranges from 0.2 to 0.7 MPa. That is, when the self-relieving socket is disconnected, it can seal at a pressure of 0 to 0.2 MPa, and the pressure-relief pressure does not exceed 0.7 MPa.

Model naming example 2

DL-YTAX-12Z03YAlJE-02

It represents a bayonet-type fluid connector with a self-relieving function. It has an equivalent diameter of Φ12 (cross-sectional area: 113 mm²), and it is a socket. The interface code is 03, and the color is yellow. The base material is aluminum alloy. It is suitable for the liquid medium and operating temperature of the JE class. The pressure-relief value ranges from 0.8 to 1.6 MPa. That is, when the self-relieving socket is disconnected, it can seal at a pressure of 0 to 0.8 MPa, and the pressure-relief pressure does not exceed 1.6 MPa.

Frequently Asked Questions (FAQ)

Q1 What applications are YTA series fluid connectors suitable for?

They are designed for quick connection of liquid cooling systems in airborne, vehicular, marine, and ground-based environments, specifically for avionics, radars, wind power converters, high-performance servers, and supercomputers.

Q2 What are the temperature and pressure limits of these connectors?

The operating temperature ranges from -55°C to 95°C, and the operating pressure limits are from 0 to 2 MPa.

Q3 What materials are used for the shell and seals?

The shell options include surface-treated Aluminum Alloy and Stainless Steel. The seals are made of high-strength fluorosilicone rubber or EPDM rubber.

Q4 What is the mechanical lifespan of the YTA series?

These fluid connectors are designed to support up to 1000 plugging cycles under standard operating conditions.

Q5 How does the self-relieving pressure socket work during disconnection?

When disconnected, the self-relieving socket seals at lower pressures (e.g., 0 to 0.2 MPa or 0.8 MPa depending on model) and prevents the relief pressure from exceeding its safety limit (e.g., 0.7 MPa or 1.6 MPa respectively).
