Product Description

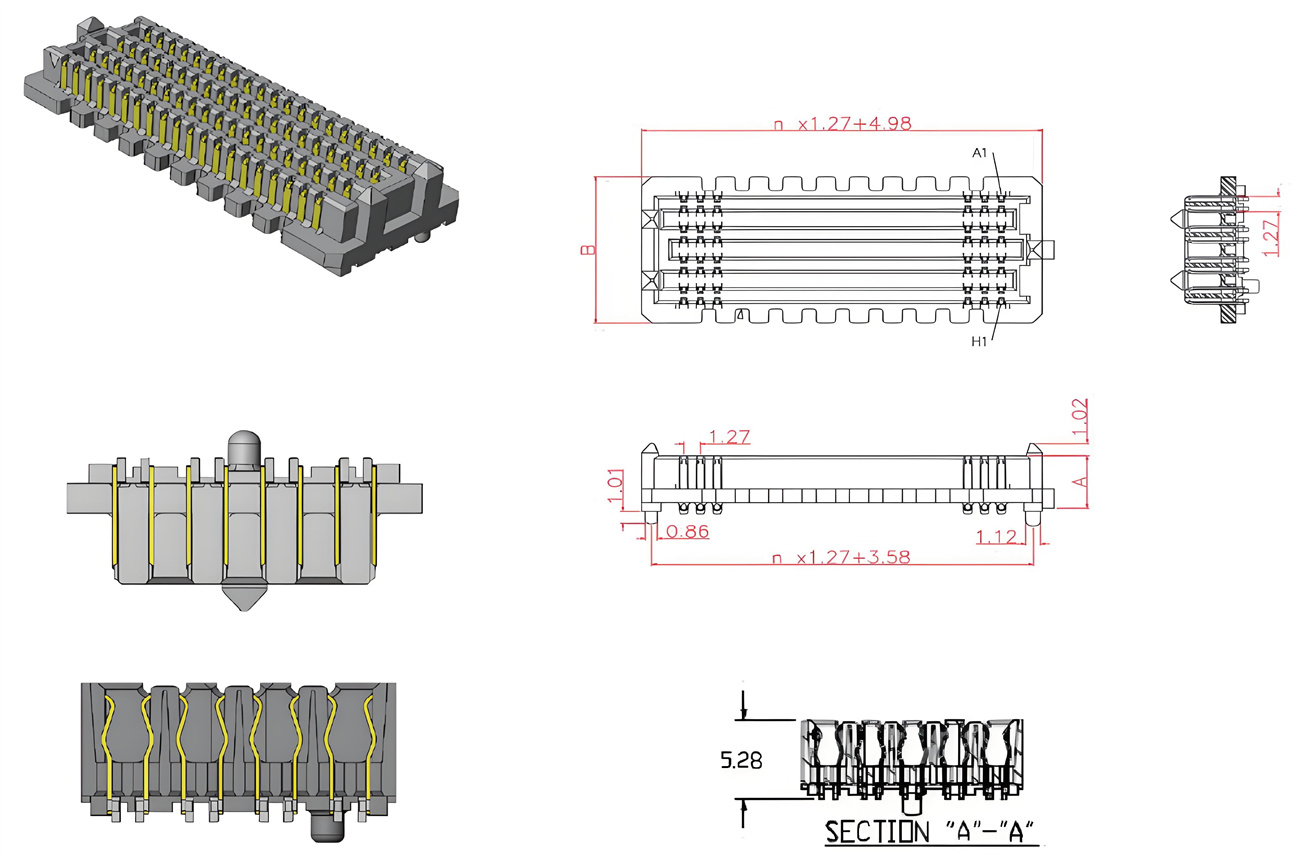

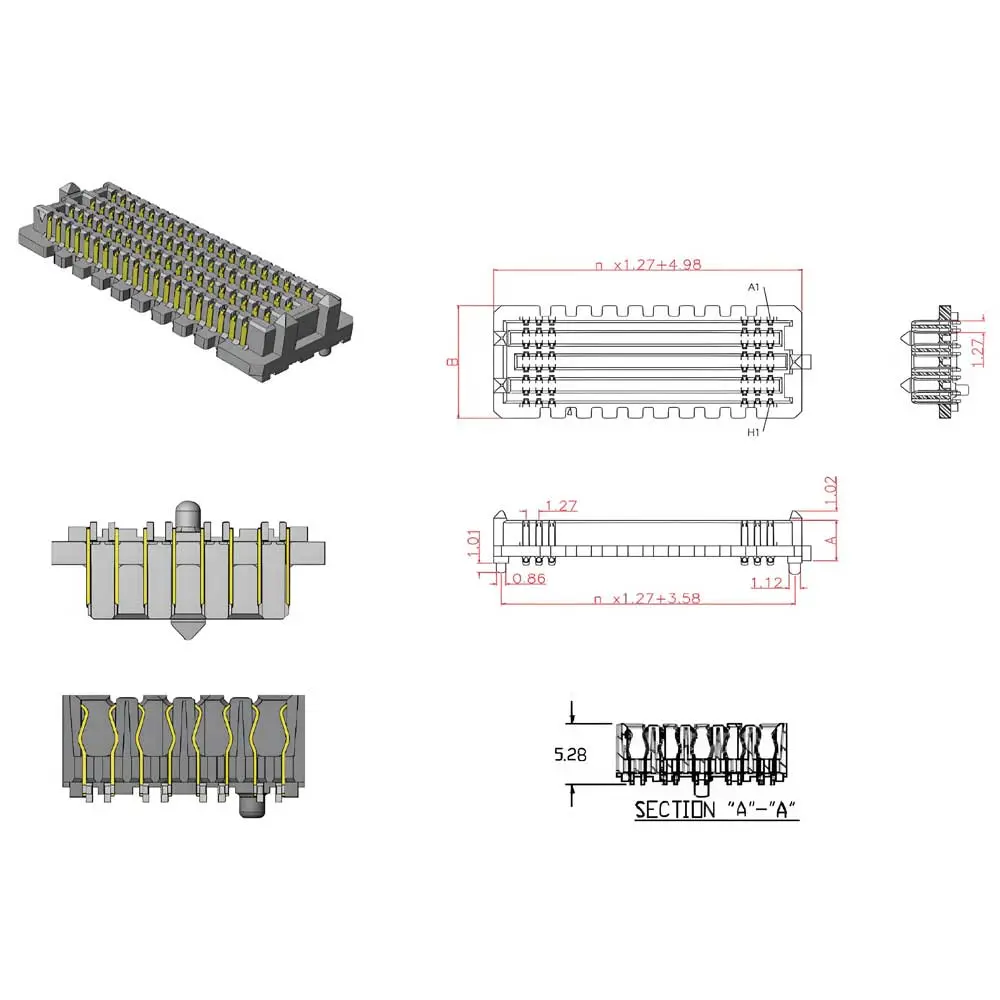

Multi-Row Series - 1.27mm pitch plug

(High Speed Transmission Electrical Connectors)

Specification parameters

Material Number: 85 SEAM-XXXXXXXXX

Insulation material: black LCP

Terminal material: copper alloy

Plating Options: Max 30u" Gold Plated on Nickel

Rated current: 1.0 A per pin

Contact resistance: 10 MΩ

Rated voltage: 240 VAC

Pin specification: 40PIN-500PIN

Operating temperature: -55℃ to +125℃

Transmission rate: 56Gbps

Stacking Height: 7.0-10MM

Insertion depth: 3.68MM-6.35MM

Working range: -55℃ to +125℃

Lead-Free

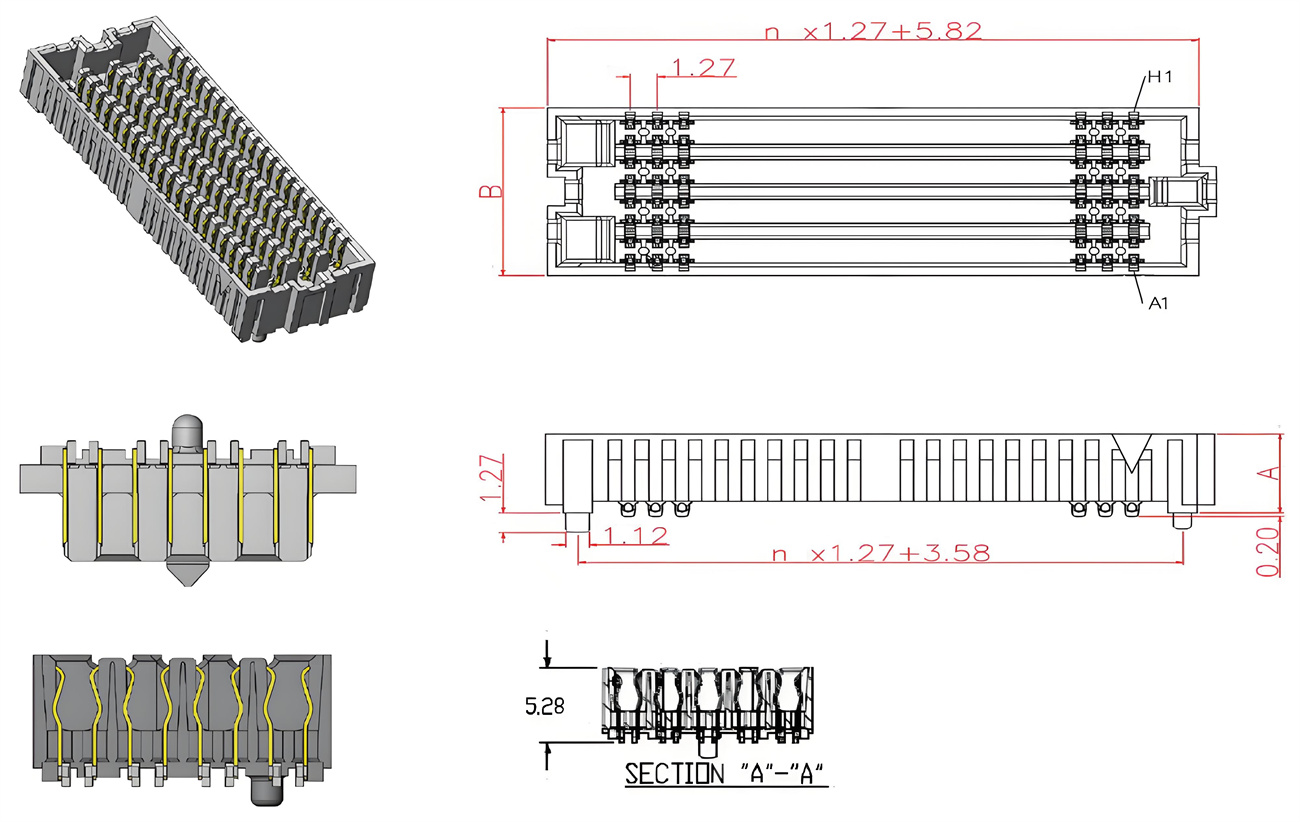

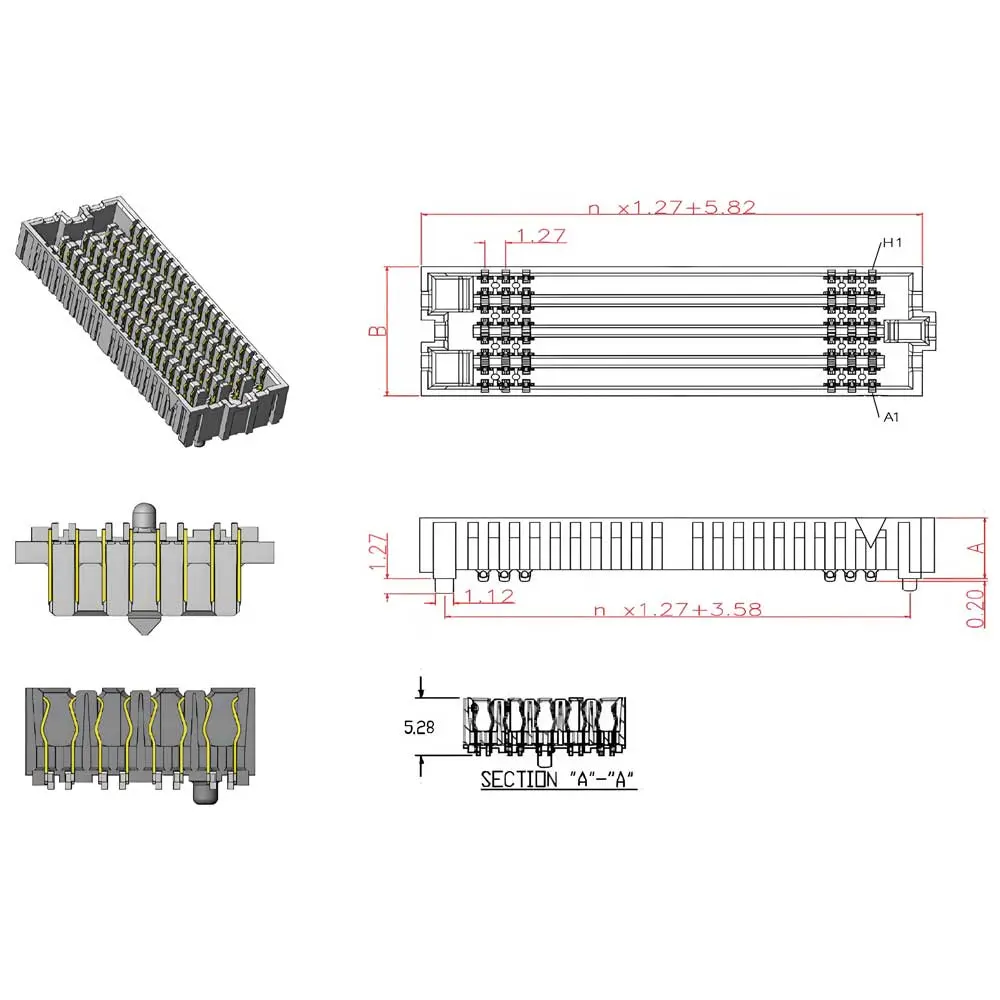

Multi-row series - 1.27mm pitch socket

(High Speed Transmission Electrical Connectors)

Specification parameters

Material number: 85 SEAF-XXXXXXX

Insulation material: black LCP

Terminal material: copper alloy

Plating Options: Max 30u" Gold Plated on Nickel

Rated current: 3.2A per pin

Contact resistance: 10 MΩ

Rated voltage: 240 VAC

Pin size: 40 PIN-500PIN

Operating temperature: -55℃ to +125℃

Transmission rate: 56 Gbps

Stacking Height: 7.0-10

Insertion depth: 3.68MM-6.35MM

Working range: -55℃ to +125℃

Lead-Free

Frequently Asked Questions

Q1: What is the transmission rate of these multi-row electrical connectors?

Both the plug and socket series support high-speed transmission rates of up to 56 Gbps, making them ideal for high-performance communication systems.

Q2: What is the operational temperature range for this series?

The connectors are built to withstand extreme environments, operating reliably within a temperature range of -55℃ to +125℃.

Q3: What are the primary material compositions used in manufacturing?

They feature high-quality black LCP insulation material, copper alloy terminals, and plating configurations up to a maximum of 30u" Gold Plated on Nickel.

Q4: Are there options for custom pin sizes and configurations?

Yes, both the plug and socket variations support custom scaling from 40 PIN configurations up to 500 PIN configurations.

Q5: What are the differences in rated current between the plug and the socket?

The plug (85 SEAM-XXXXXXXXX) has a rated current of 1.0 A per pin, while the corresponding socket (85 SEAF-XXXXXXX) features a rated current of 3.2A per pin.
