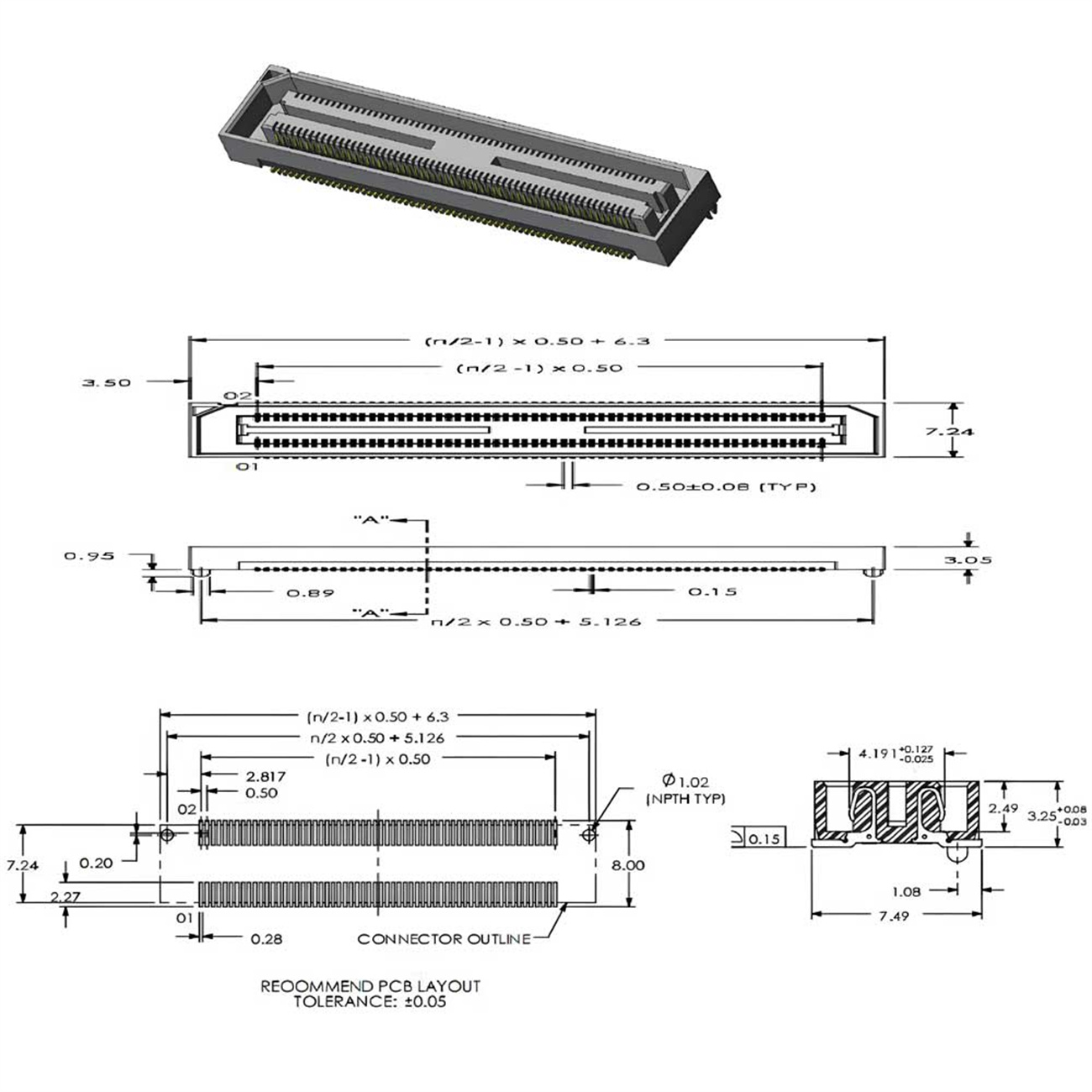

80BX Series - 0.50mm Pitch Plug

(High Speed Transmission Electrical Connectors)
80BX Series - 0.50mm Pitch Plug

Specification Parameters

Material Number 80 BTH-XXXV01G10T
Insulation Material Black LCP
Terminal Material Phosphor Bronze
Plating Options Max 50u" Gold Plated on Nickel
Rated Current 1.8A per pin @ 95°C (2 pins powered)
Rated Voltage 175 VAC (5.00 with high)
Matching Height 5.00 mm - 16.00 mm
Pin Size 60 PIN - 300 PIN
Max Friction Distance 0.56 mm
Working Temperature -55°C to +125°C
Transfer Rate 25 Gbps
Mating Times 100 Cycles
Coplanarity 0.10 mm max (60-180 PIN) / 0.15 mm max (240-300 PIN)
Lead-Free

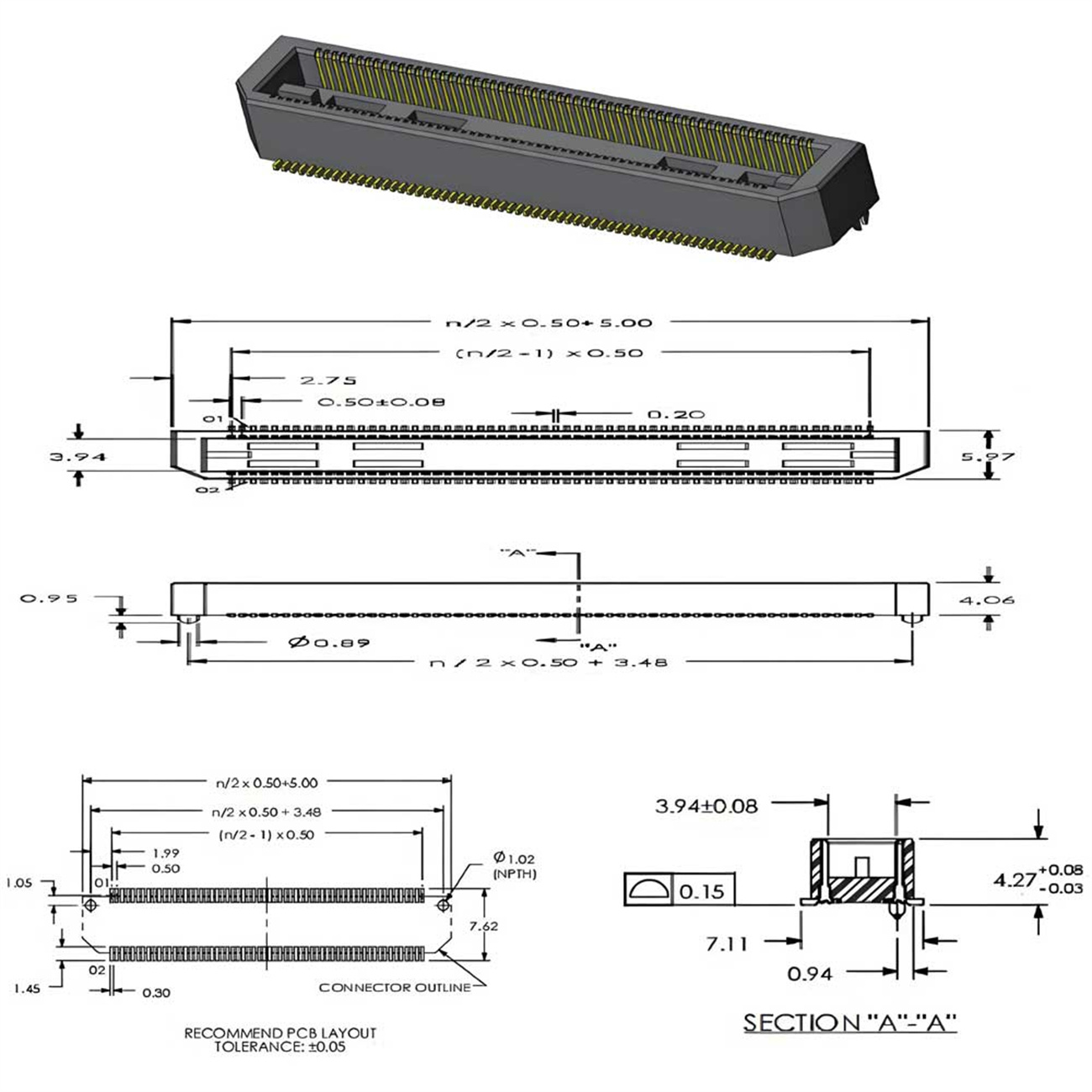

80BX Series - 0.50mm Pitch Socket

(High Speed Transmission Electrical Connectors)
80BX Series - 0.50mm Pitch Socket

Specification Parameters

Material Number 80BSH-XXXVG10T
Insulation Material Black LCP
Terminal Material Phosphor Bronze
Plating Options Max 50u" Gold Plated on Nickel
Rated Current 1.8A per pin @ 95°C (2 pins powered)
Rated Voltage 175 VAC (5.00 with high)
Matching Height 5.00 mm - 16.00 mm
Pin Specification 60 PIN - 300 PIN
Max Friction Distance 0.56 mm
Operating Temperature -55°C to +125°C
Transmission Rate 25 Gbps
Mating Times 100 Cycles
Coplanarity 0.10 mm Max. (60-180 PIN) / 0.15 mm Max. (240-300 PIN)
Lead-Free

Frequently Asked Questions (FAQ)

What is the maximum data transmission rate of the 80BX Series?

The 80BX Series electrical connectors are designed for high-speed applications, supporting transmission rates up to 25 Gbps.

What mating heights are supported by these connectors?

Both the plug and socket configurations support a matching height range from 5.00 mm to 16.00 mm.

How many pins are available in this connector series?

The 80BX Series connectors are available in configurations ranging from 60 PIN to 300 PIN.

What is the operating temperature range for the 80BX Series?

These connectors are highly durable and can operate reliably within a temperature range of -55°C to +125°C.

Are the 80BX Series Plug and Socket lead-free?

Yes, all connectors in the 80BX Series are manufactured compliance-ready and are Lead-Free.
