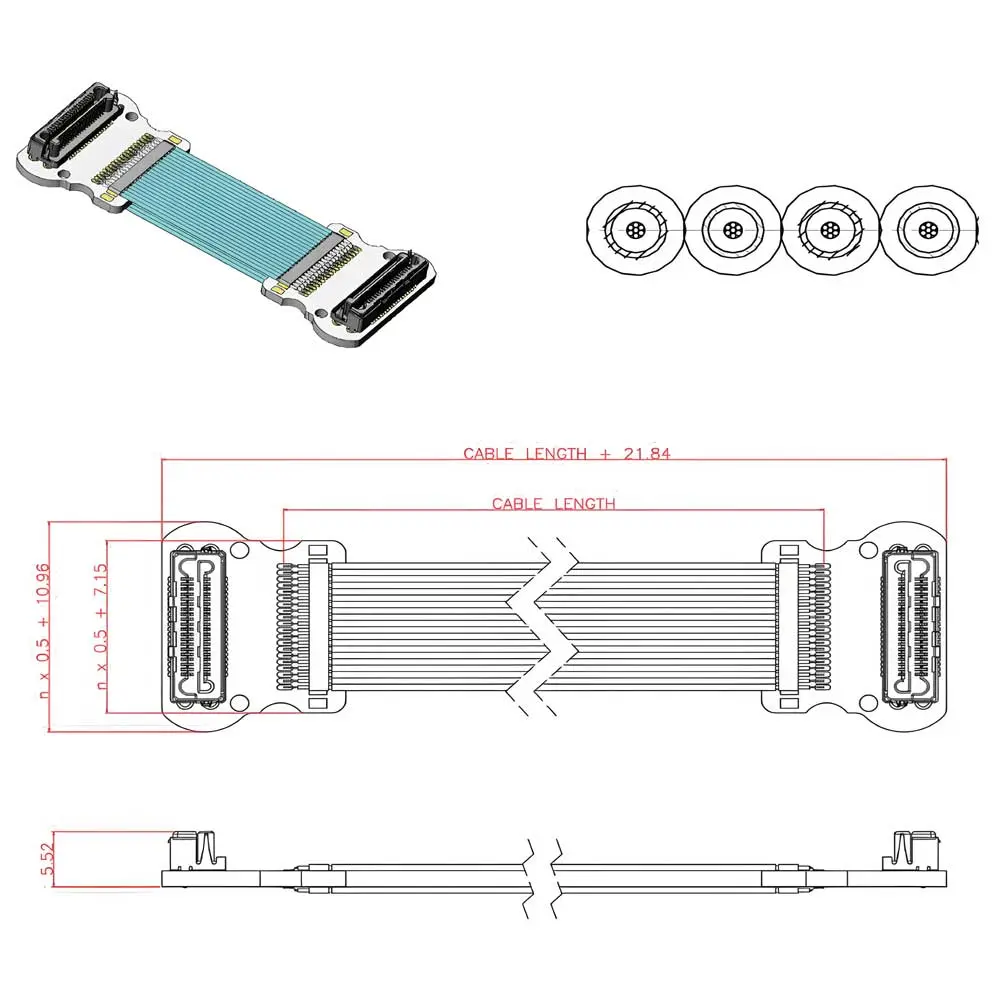

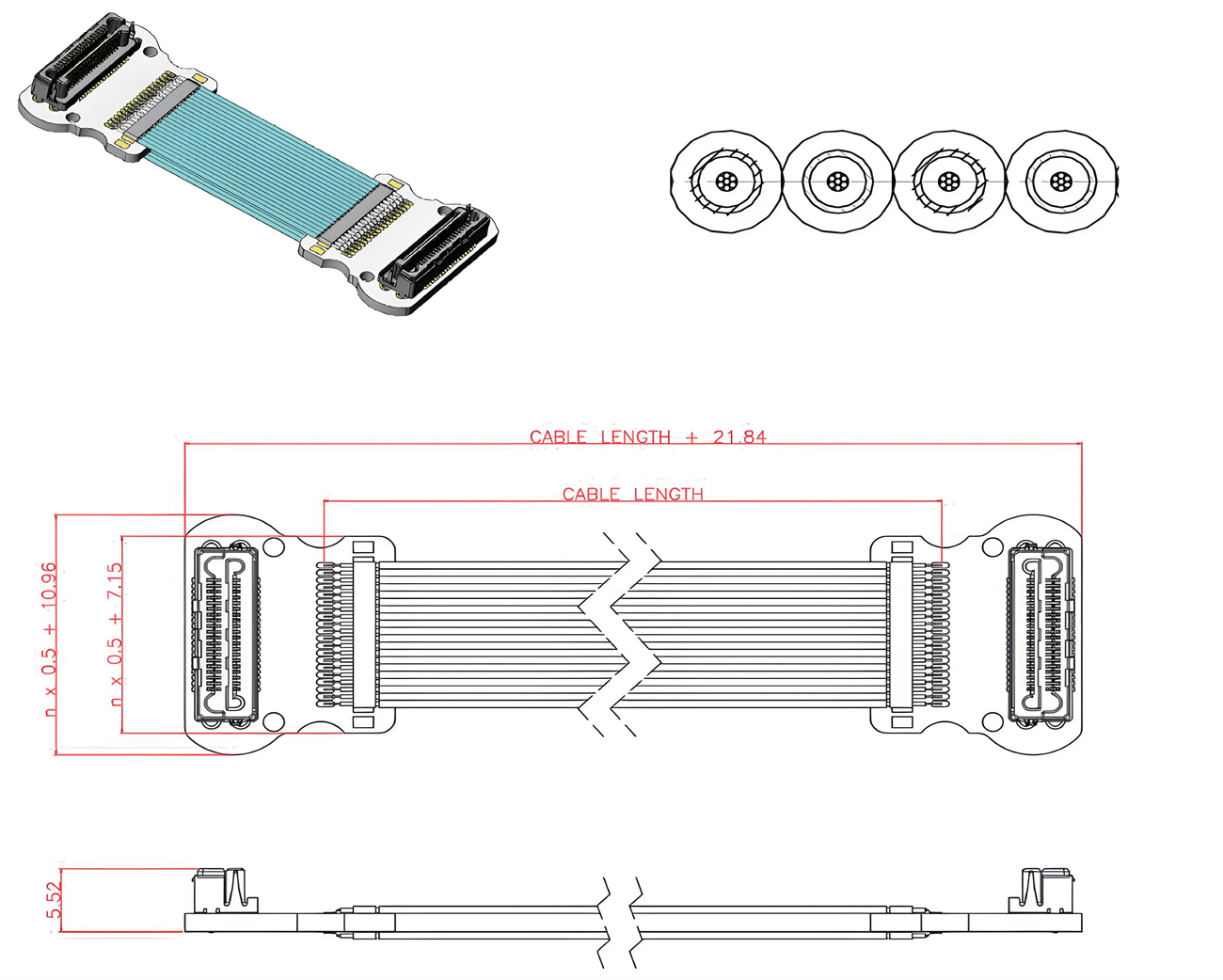

81A Series - 0.50mm Pitch High Speed Cable
(High Speed Transmission Electrical Connectors)
Specification Parameters
Material number: 81AXX-XXXXXXX
Plating Options: Max 30u" Gold Plated on Nickel
Rated current: 500mA per pin
Cable: 38 AWG micro coaxial cable
Single-ended: 50Ω
Propagation delay: 4.79nsec/meter
Transmission rate: 14 Gbps
Cable length: Max 1.00 meters
Working range: -25℃ to +105℃
RoHS Compliant
Frequently Asked Questions
What is the pitch and transmission rate of the 81A Series cable?
The 81A Series cable features a 0.50mm pitch and supports a high-speed transmission rate of up to 14 Gbps.
What cable specification is used in this assembly?
This connector assembly utilizes a 38 AWG micro coaxial cable, designed for high-performance signal integrity.
What is the maximum cable length available for the 81A Series?
The maximum supported cable length for this specific configuration is 1.00 meter.
What is the operating temperature range for these high-speed connectors?
The connectors are rated for a working temperature range from -25℃ to +105℃, making them suitable for various industrial applications.
Are these high-speed electrical connectors RoHS compliant?
Yes, the 81A Series electrical connectors comply with RoHS environmental safety regulations.
