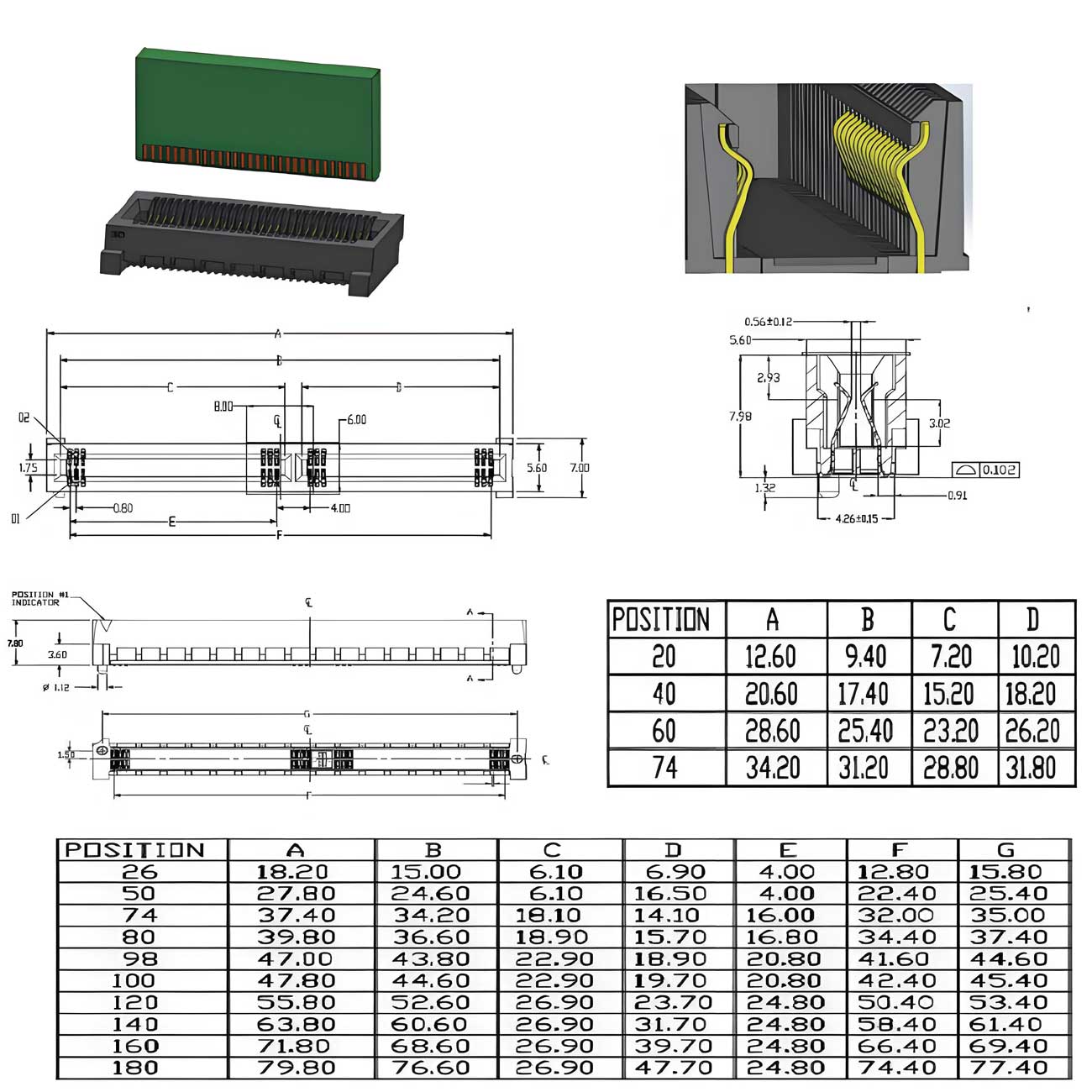

Gold Finger Series - 0.80mm Pitch Socket
(High Speed Transmission Electrical Connectors)
Specification Parameters
Material Number
861 C1-XXXV08XXXT
Insulation Material
Black LCP
Terminal Material
Beryllium Copper
Plating Options
Max 50u" Gold Plated on Nickel
Rated Current
2.60A per pin @ 30℃
Rated Voltage
175 VAC
Pin Specification
18PIN - 140PIN
Operating Temperature
-55℃ to +125℃
Transmission Rate
28 Gbps
Card Thickness
1.60mm / 2.40mm
Insertion Depth
3.15mm
Maximum Friction Distance
2.02mm
Coplanarity
0.10 mm
Environmental compliance
Lead-Free
Frequently Asked Questions
What is the maximum data transmission rate of this gold finger socket?
This 0.80mm pitch gold finger socket supports high-speed data transmission rates up to 28 Gbps.
What is the operating temperature range for these connectors?
The connector is designed to perform reliably in extreme environments, with an operating temperature range from -55℃ to +125℃.
What card thicknesses are compatible with this socket?
This connector is compatible with standard card thicknesses of 1.60mm and 2.40mm.
What terminal materials and platings are used?
The terminals are made of beryllium copper for excellent conductivity, featuring plating options of up to 50u" gold over nickel.
Is this high-speed connector environment-friendly?
Yes, this Gold Finger series connector is lead-free and compliant with environmental standards.
