Product Description

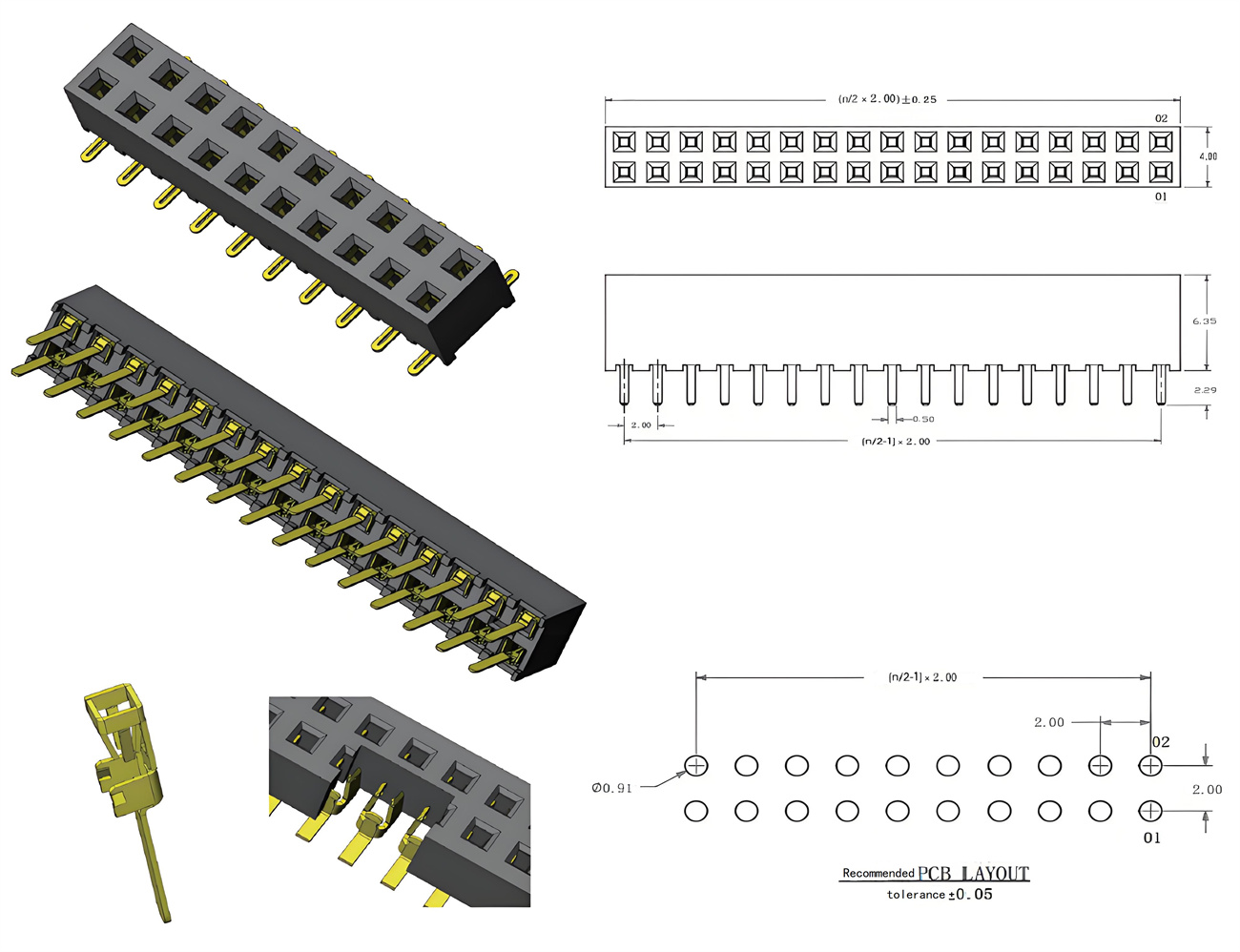

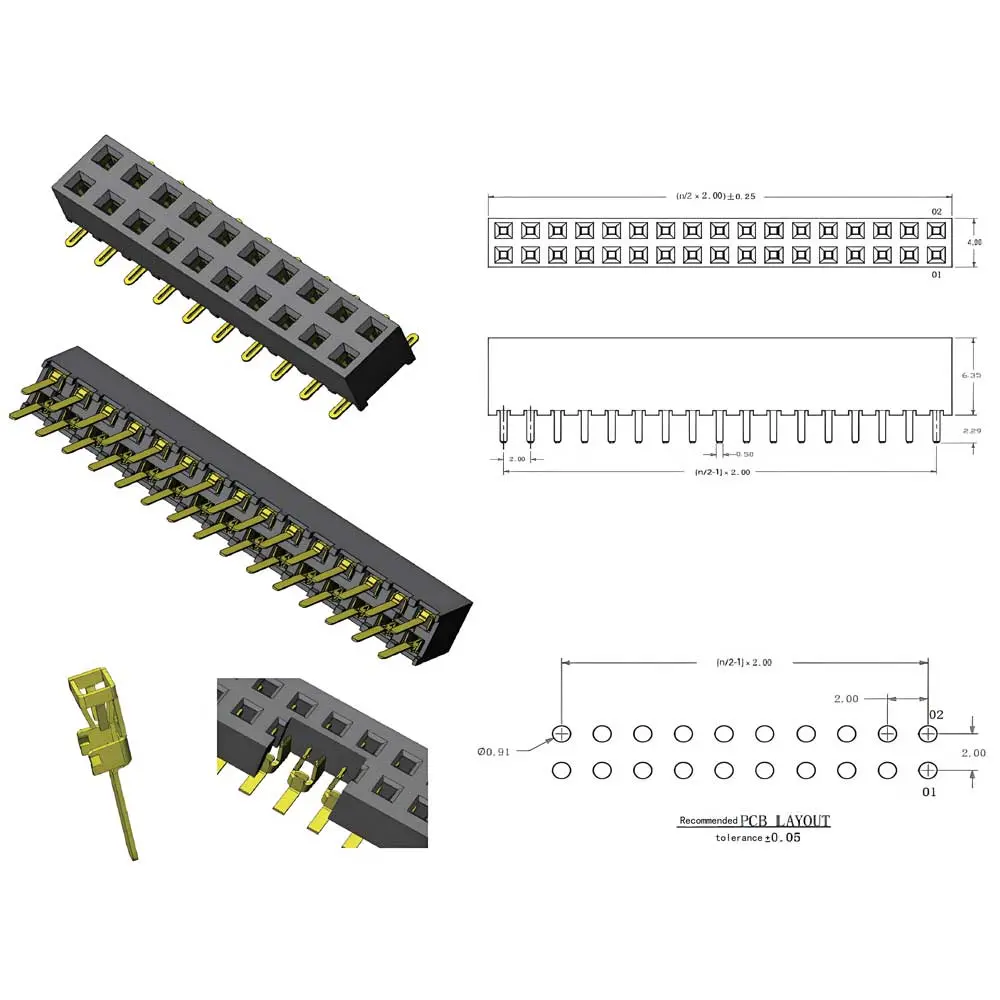

Pin Header Series - 2.0mm Pitch Header

(High Speed Transmission Electrical Connectors)

Specification parameters

Material Number: 85 SQT-XXGXXDT

Insulation material: black LCP

Terminal material: phosphor copper

Plating Options: Max 50u" Gold Plated on Nickel

Rated current: 3.0A(2 pins)

Touchpoint resistance: 15mΩ

Insertion depth: 1.83~4.37 mm

Mechanical life: 100 cycles (10u" gold)

Working range: -40°C to +125°C

Coplanarity: 0.10 mm

Lead-Free

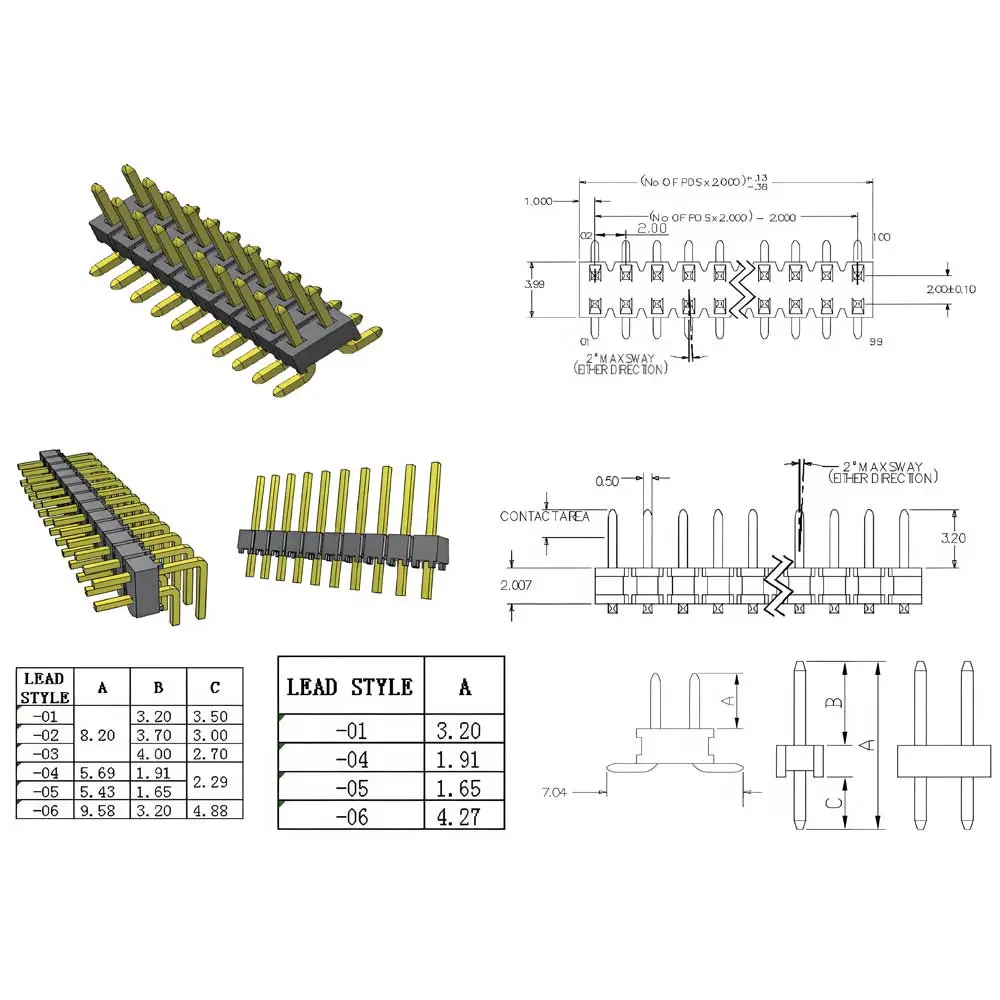

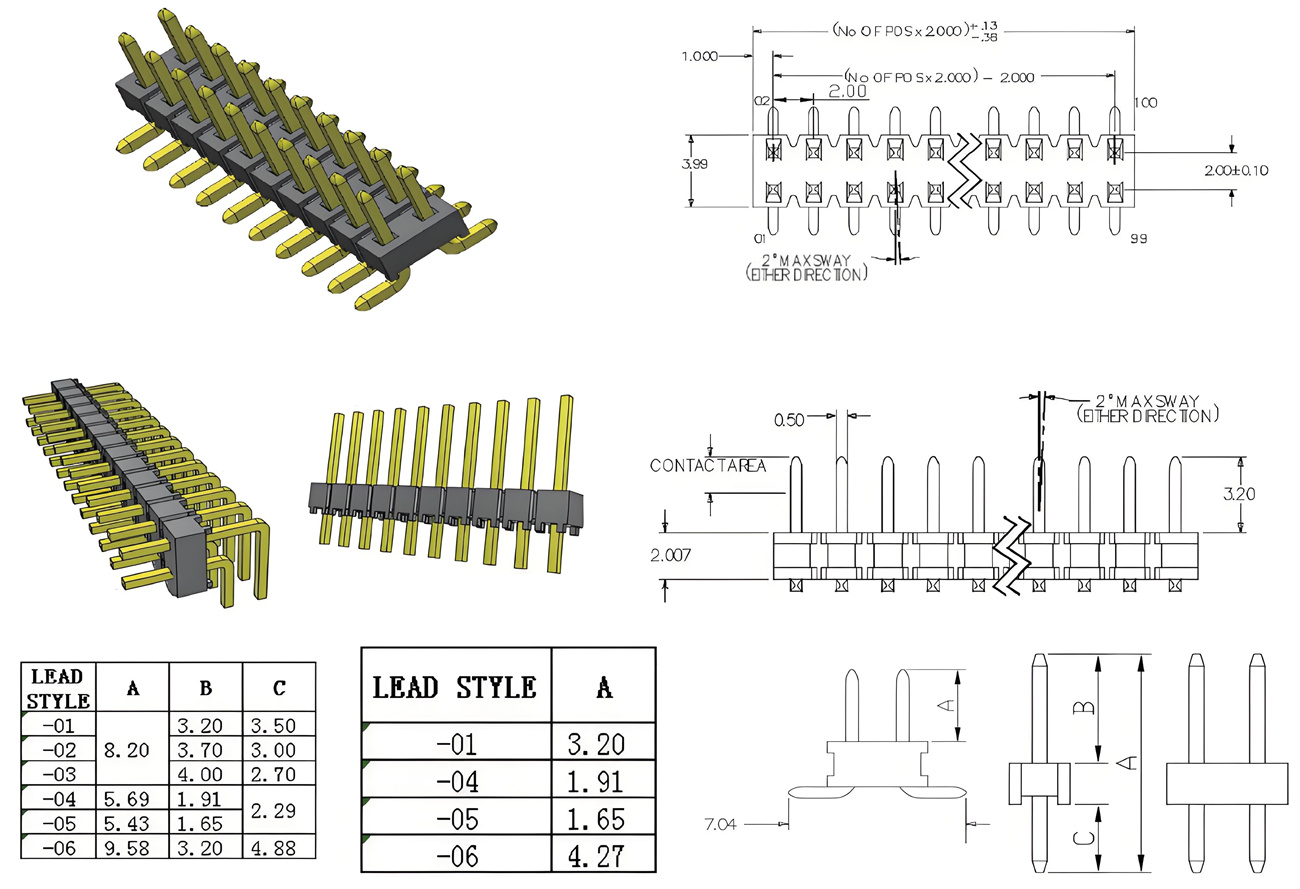

Pin Header Series - 2.0mm Pitch Pin Header

(High Speed Transmission Electrical Connectors)

Specification parameters

Material Number: 2TMM-1XX-XXX-X-X-A 2TW-1XX-XXX-X-X-A

Insulation material: black LCP

Terminal material: phosphor copper

Plating Options: Max 30u" Gold Plated on Nickel

Rated current: 3.2A per pin

Product specification: 4 PIN~ 80PIN

Working range: -55°C to +125°C

Lead-Free

Frequently Asked Questions

What are the main applications for these 2.0mm pitch connectors?

These connectors are designed specifically for high-speed transmission electrical circuits. They are widely used in board-to-board connections in industrial controllers, telecommunications devices, automotive modules, and compact electronic systems where space is critical.

Why is LCP (Liquid Crystal Polymer) used as the insulation material?

LCP offers outstanding heat resistance, allowing the connectors to withstand lead-free reflow soldering processes without deformation. It also provides excellent dimensional stability, low moisture absorption, and strong flame retardant properties.

What are the benefits of the gold-over-nickel plating option?

Gold plating provides superior electrical conductivity and exceptional oxidation/corrosion resistance. The underlying nickel barrier prevents copper diffusion, ensuring stable contact resistance and extending the mechanical mating life of the connectors.

What is the operating temperature range for these series?

The 2.0mm Pitch Header operates in temperatures from -40°C to +125°C, while the Pitch Pin Header supports a wider range of -55°C to +125°C. This makes them highly suitable for harsh environments like industrial and automotive fields.

Are these products compliant with lead-free standards?

Yes, both product lines are Lead-Free. They comply with RoHS and other global green environment regulations, making them safe for environmental integration worldwide.
