Product Description

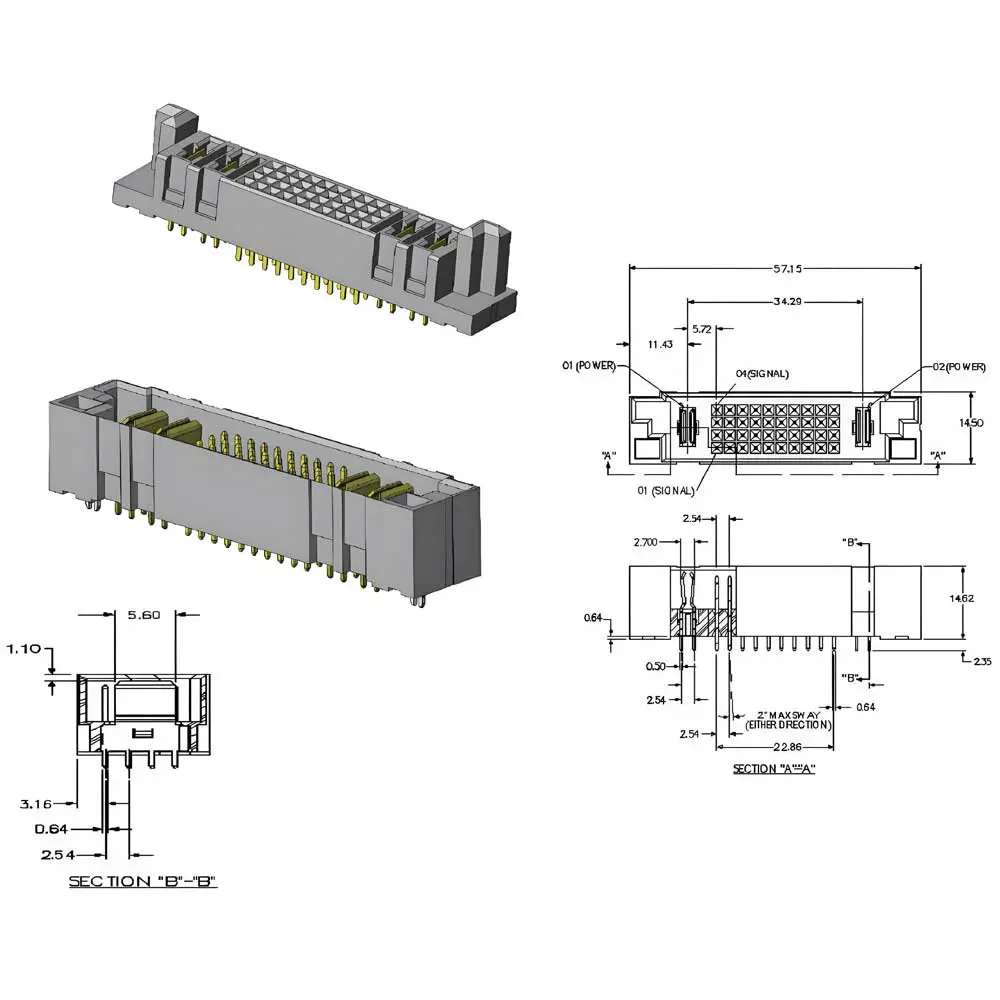

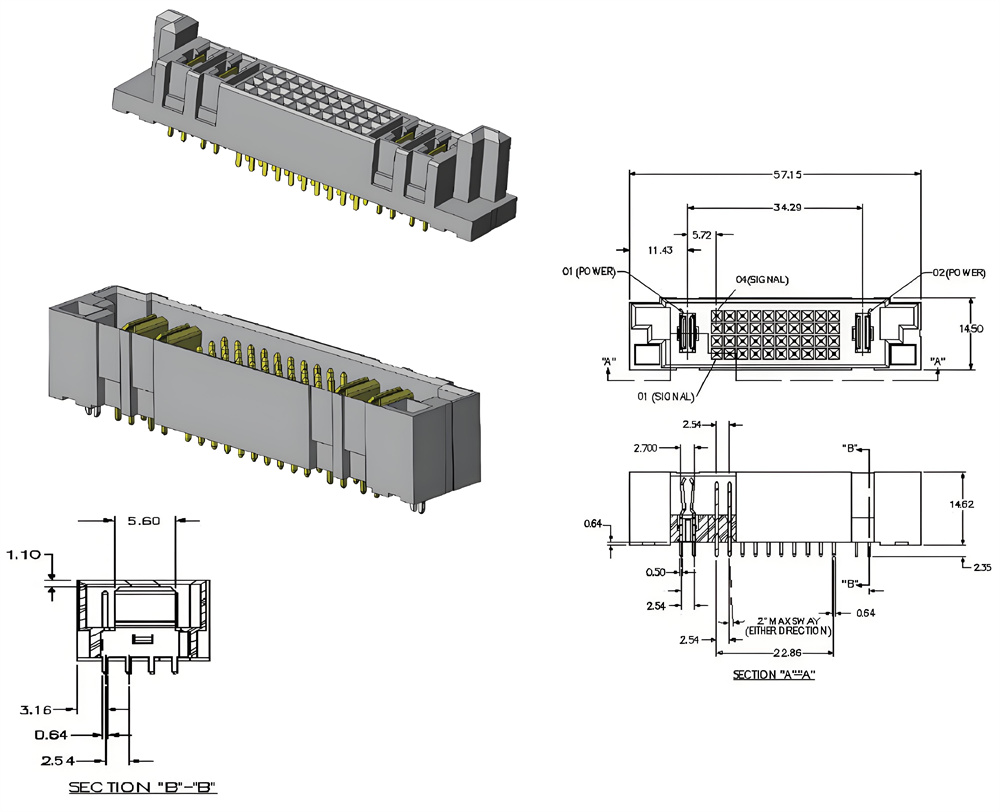

Large Power + Signal Series - 2.54mm Pitch Plug

(High Speed Transmission Electrical Connectors)

Material number: 8635 M-XXXXTHGXXP

Insulation material: black LCP

Terminal material: copper alloy

Plating Options: Max 50u" Gold Plated on Nickel

Rated current: 5.7 A per pin

Rated voltage (Signal): 450VAC

Rated voltage (Power): 650VAC

Product specifications: 012 PIN, 040PIN

Power PIN Number: 02, 04, 08

Insertion depth: 6.00mm - 8.46mm

Working range: -55℃ to +125℃

Lead-Free: Yes

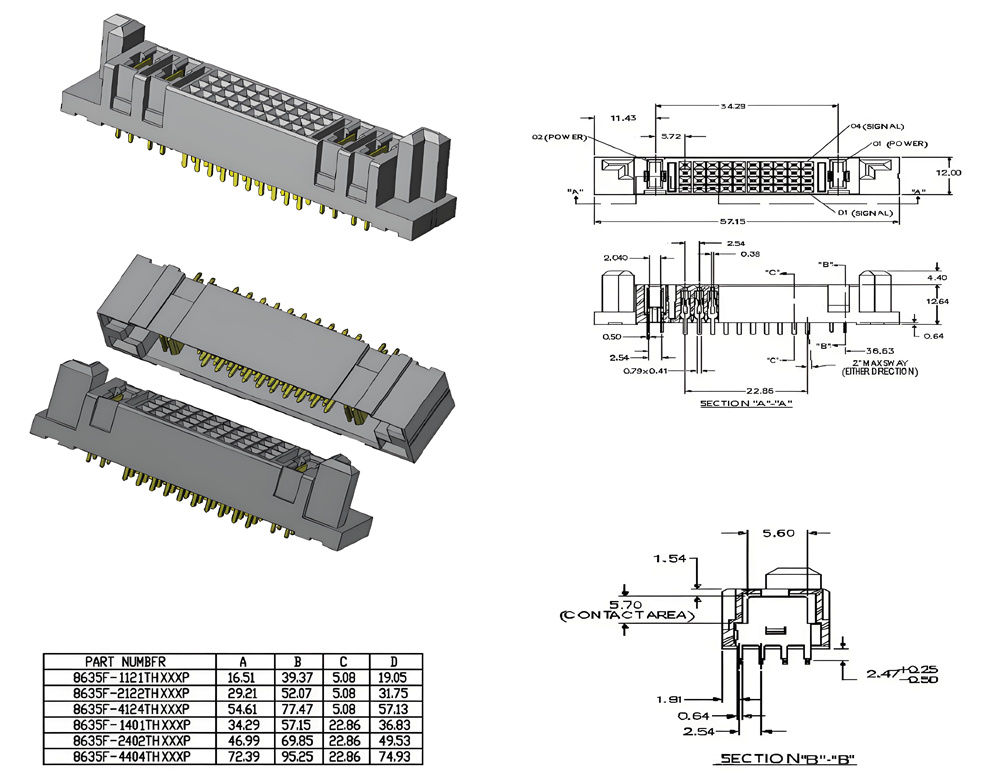

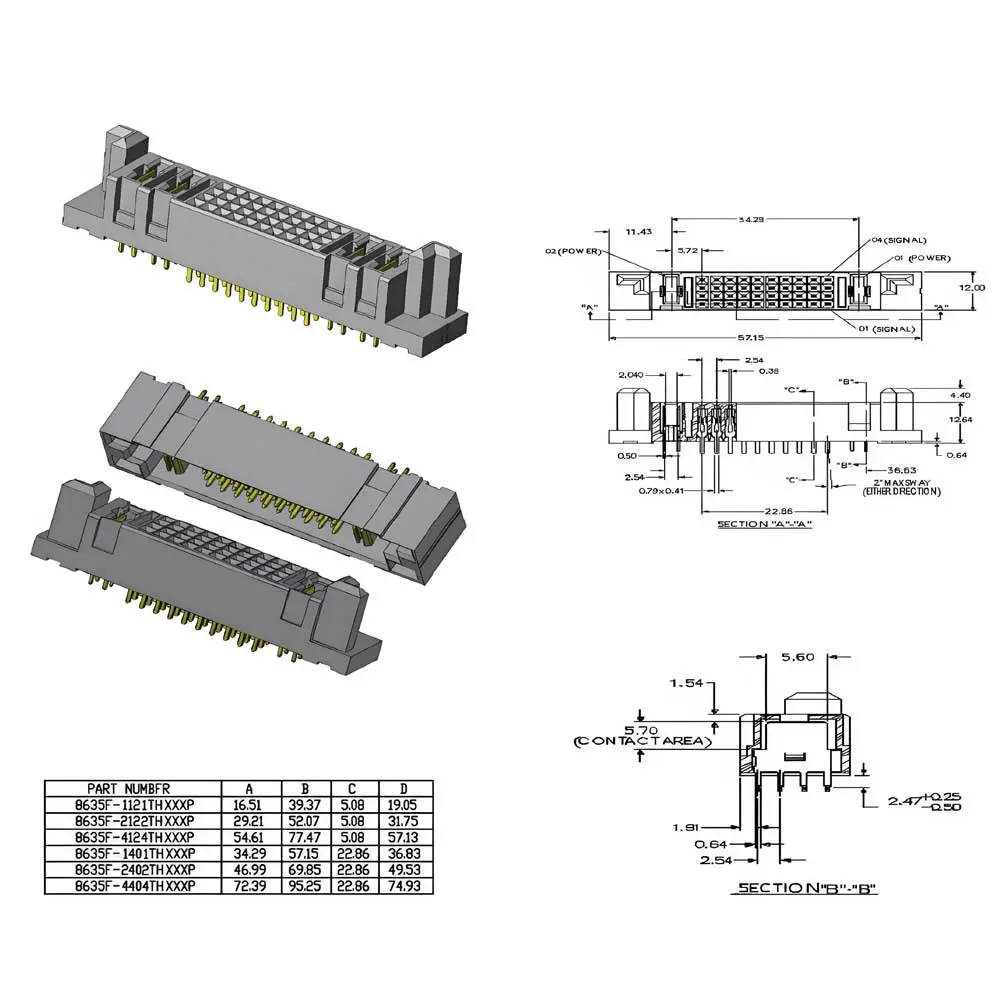

Large Power + Signal Series - 2.54mm Pitch Socket

(High Speed Transmission Electrical Connectors)

Material number: 8635 F-XXXXTHGXXP

Insulation material: black LCP

Terminal material: copper alloy

Plating Options: Max 50u" Gold Plated on Nickel

Rated current: 5.7A per pin

Rated voltage (Signal): 450VAC

Rated voltage (Power): 650VAC

Product specifications: 012 PIN, 040PIN

Power PIN number: 02, 04, 08

Insertion depth: 6.00mm - 8.46mm

Working range: -55℃ to +125℃

Lead-Free: Yes

Frequently Asked Questions

Q1: What is the pitch size of this Large Power + Signal Series?

A1: This series features a 2.54mm pitch design for both plug and socket configurations, optimizing space while maintaining reliable electrical connection.

Q2: What is the rated current limit per pin?

A2: The rated current limit for these electrical connectors is 5.7 Amperes (A) per pin.

Q3: Can these connectors operate in extreme temperature environments?

A3: Yes, they have a wide operating temperature range from -55℃ to +125℃, making them suitable for harsh working environments.

Q4: Are the materials used in these connectors Lead-Free compliant?

A4: Yes, all components in this series are Lead-Free, meeting eco-friendly standards.

Q5: What are the insulation and terminal materials of this series?

A5: The connectors are built with high-quality black Liquid Crystal Polymer (LCP) as the insulation material and copper alloy for the terminal material.

Q6: What is the rated voltage for power and signal lines?

A6: The rated voltage is 450VAC for Signal applications and up to 650VAC for Power supply applications.
