What is the maximum data transmission rate supported by these 0.80mm pitch connectors?
Both the standard and differential versions of our 80X Series connectors support high-speed transmissions up to 28 Gbps, making them ideal for high-performance computing and communication network devices.
What are the temperature limits and environmental specs for the 80X Series?
The connectors are built with Black LCP insulation and can safely operate within a wide temperature range of -55℃ up to +125℃. Additionally, the materials conform to environmental requirements for lead-free compliance.
What are the rated currents for the signal and grounding pins?
Under standard conditions (tested at 95℃), the rated current for signal pins is 1.30A per pin, while the grounding pins support up to 10.1A per pin to ensure stable electrical connections and optimal power grounding.
What pin count configuration options are available for standard and differential versions?

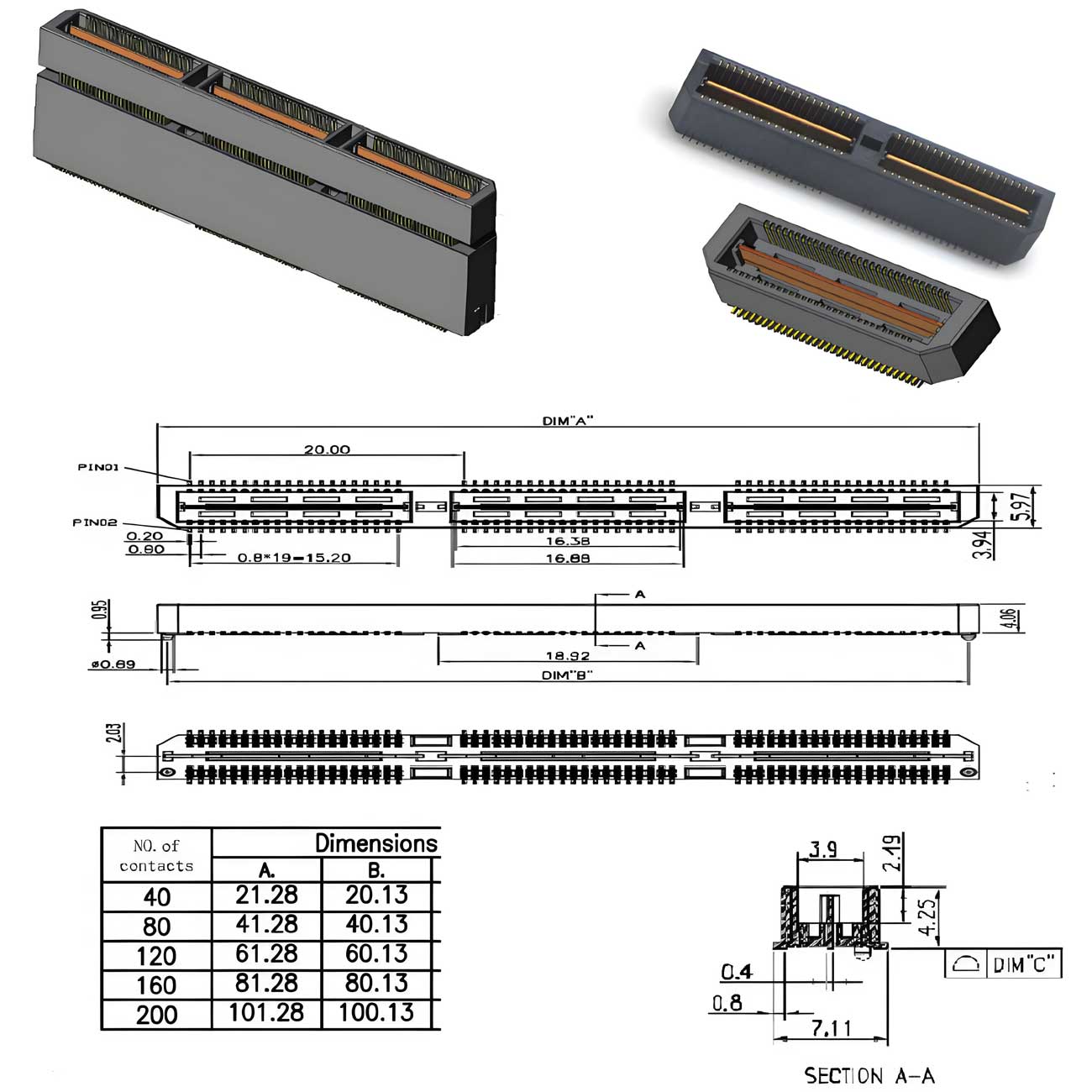

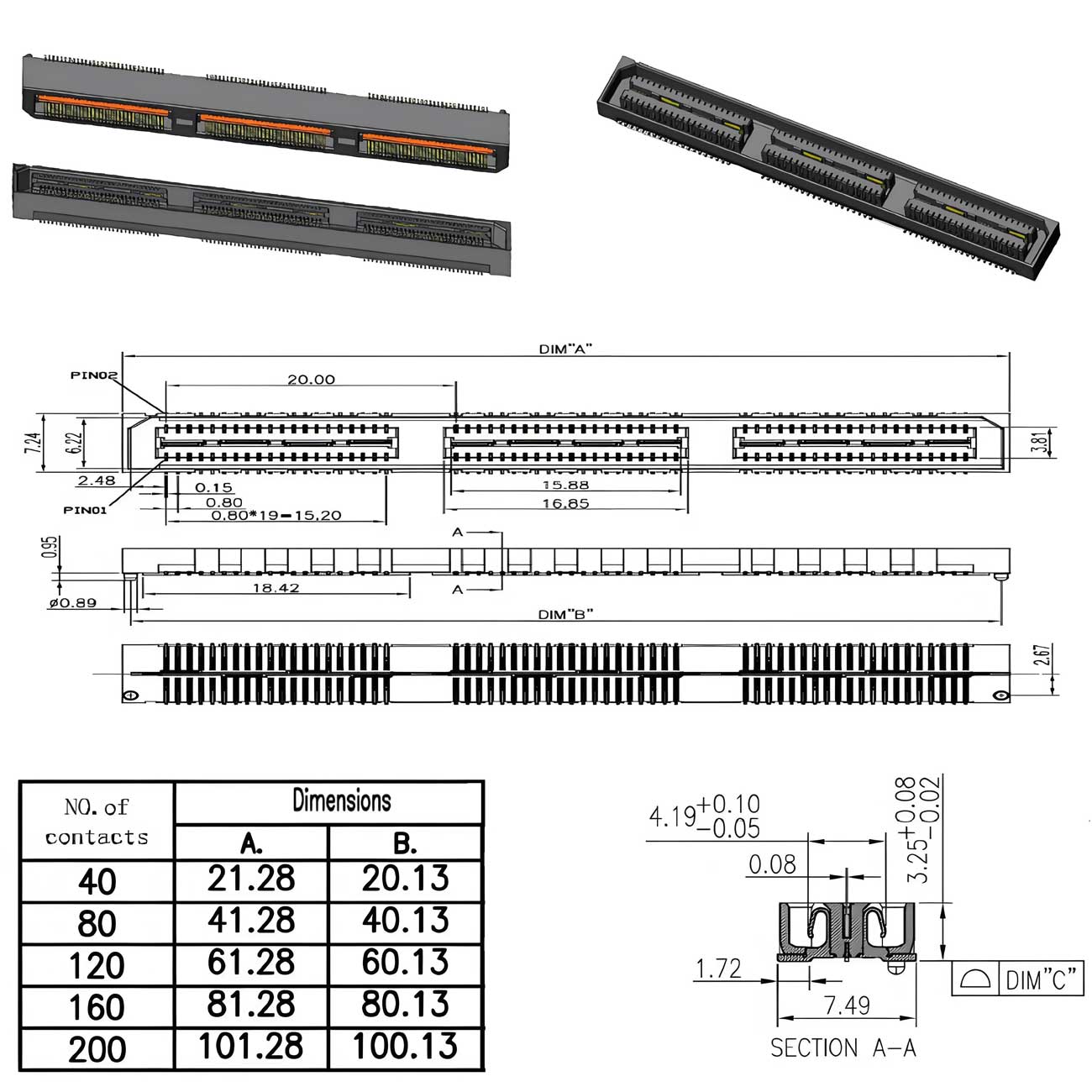

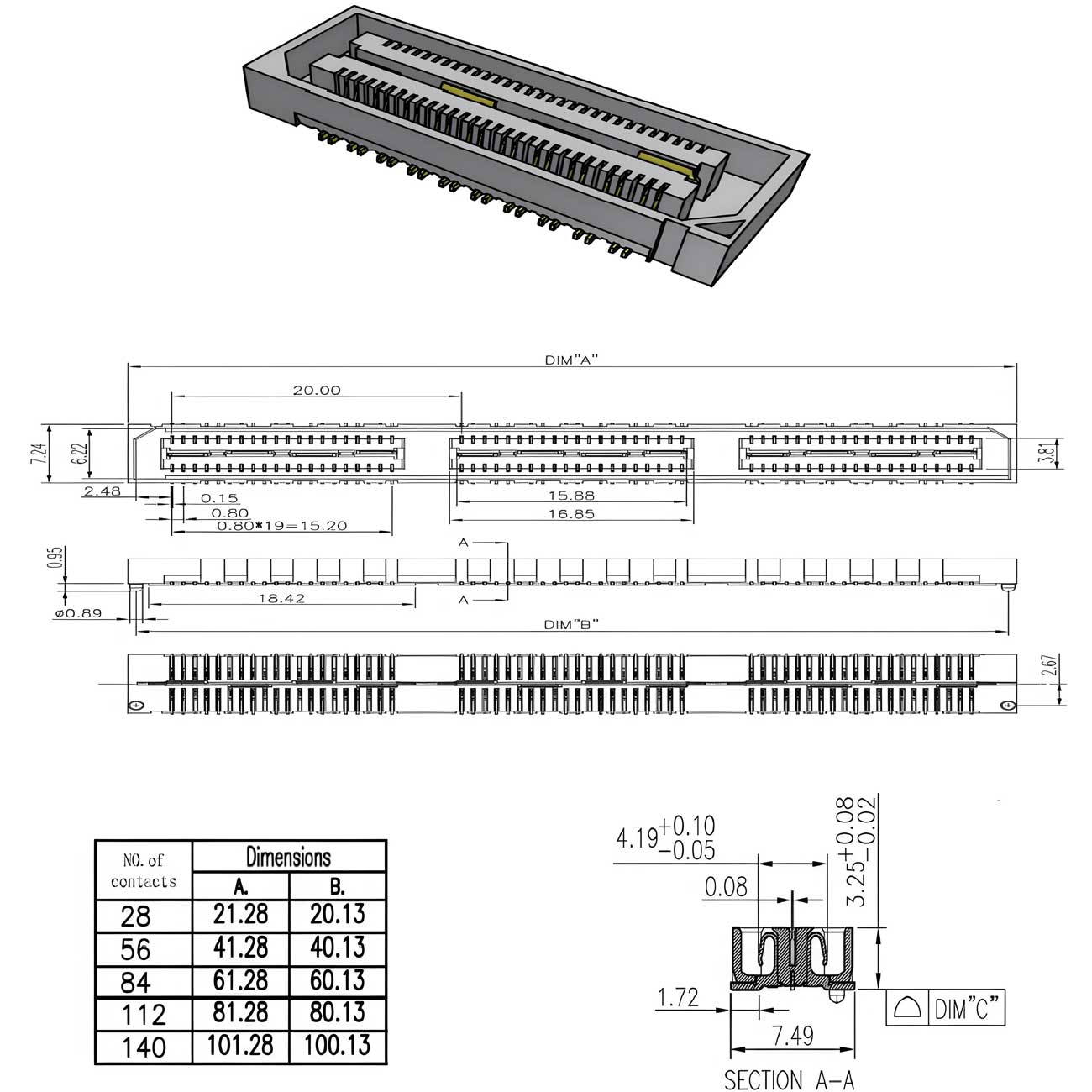

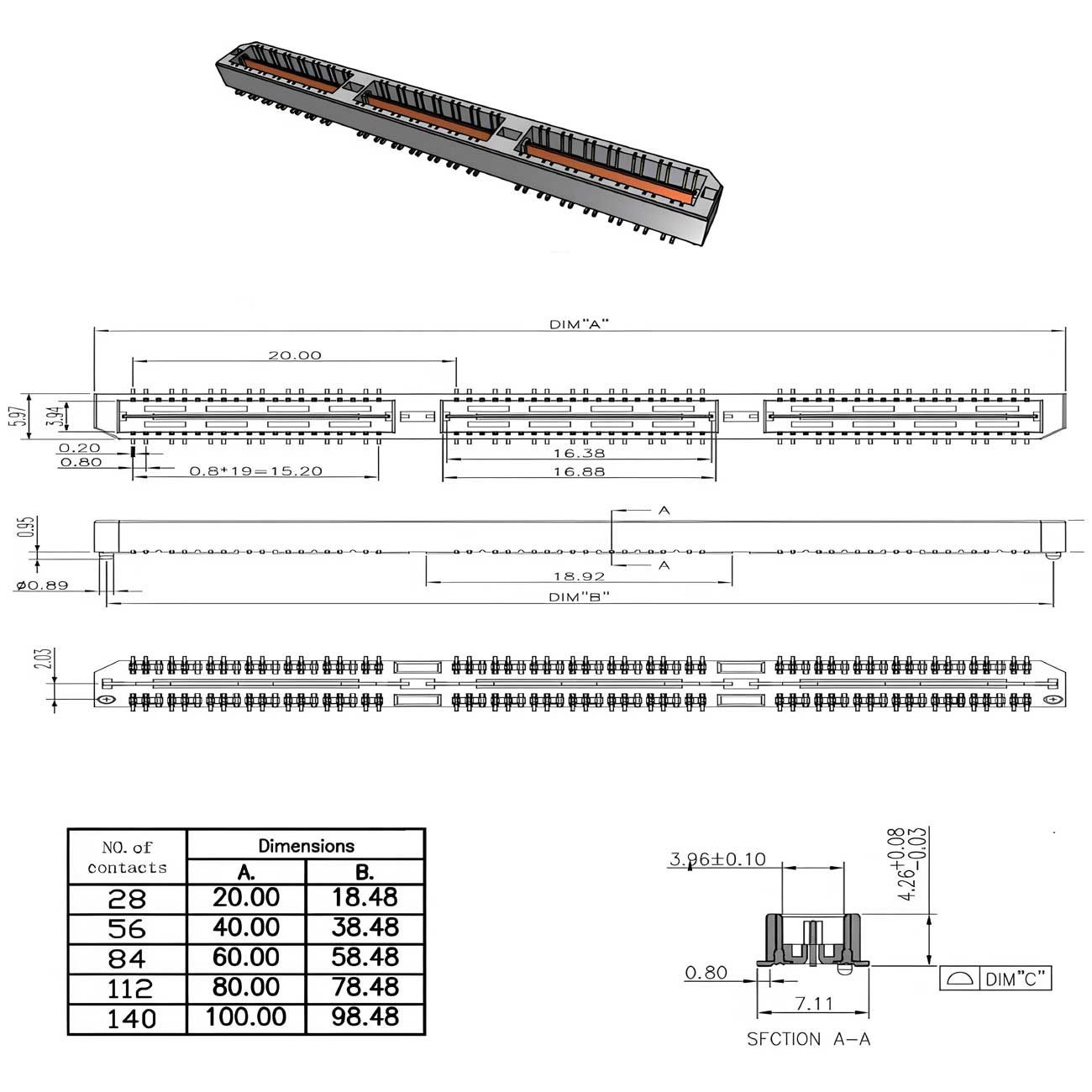

Standard plug and socket versions offer pin counts of 40, 80, 120, 160, and 200 PIN. The differential plugs and sockets are available in sizes of 28, 56, 84, 112, and 140 PIN.
What are the mating performance limits and coplanarity standards?
Our connectors feature a maximum coplanarity of 0.12 mm to ensure high-quality surface mounting yields, and they are rated to withstand up to 100 mating cycles while maintaining stable performance.
