What is the maximum transmission rate of the COM-E series connectors?
The COM-E series plug and socket electrical connectors support a high-speed transmission rate of up to 10 Gbps.
What materials are used for the insulation and contacts in these connectors?
These connectors use high-grade black LCP (Liquid Crystal Polymer) with a UL94V-0 flammability rating for insulation, and Phosphor Bronze with max 50u" gold plating on nickel for the terminals.
What is the operating temperature range for the COM-E series?
The COM-E series connectors are designed to operate reliably in harsh environments within a temperature range of -40°C to +85°C.
How many mating cycles can these high-speed connectors withstand?
These connectors offer durability rated at 100 mating cycles while maintaining stable electrical connectivity.
Are the COM-E series plug and socket compliant with environmental regulations?
Yes, both the 0.50mm pitch plug and socket in the COM-E series are Lead-Free compliant.

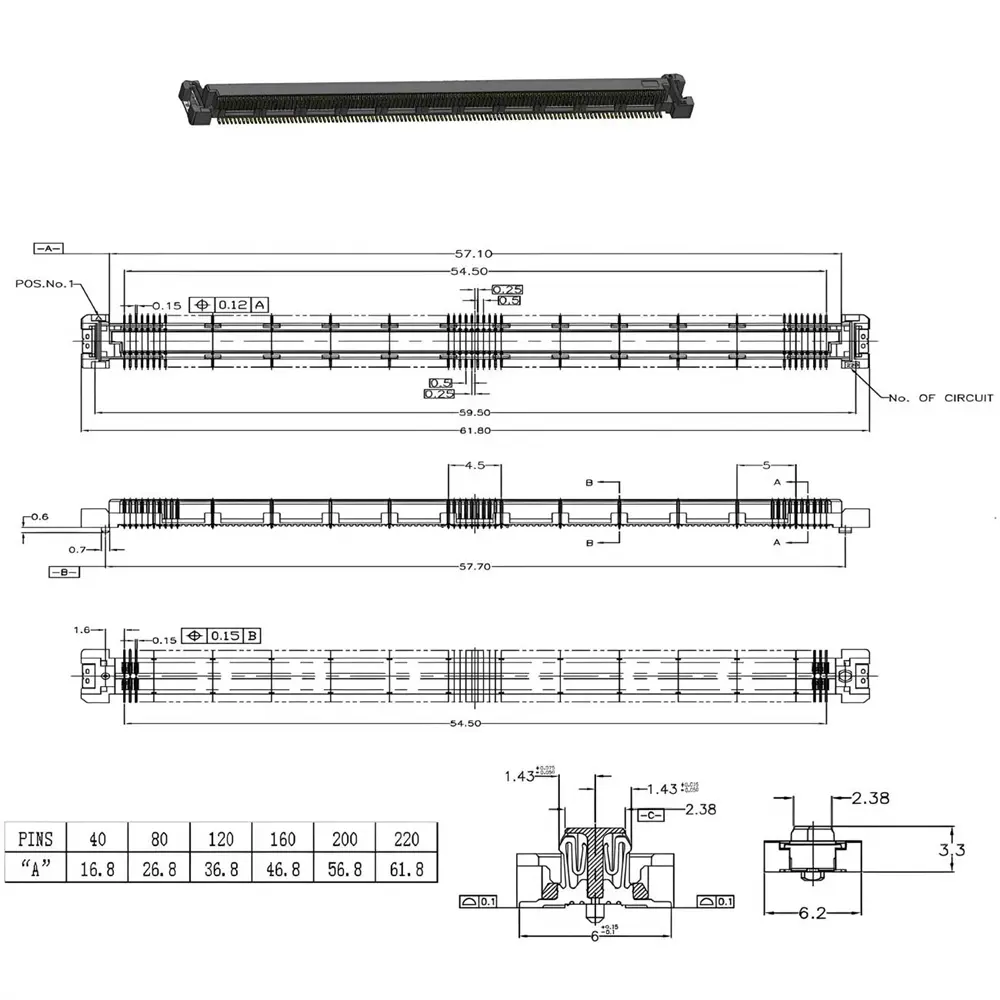

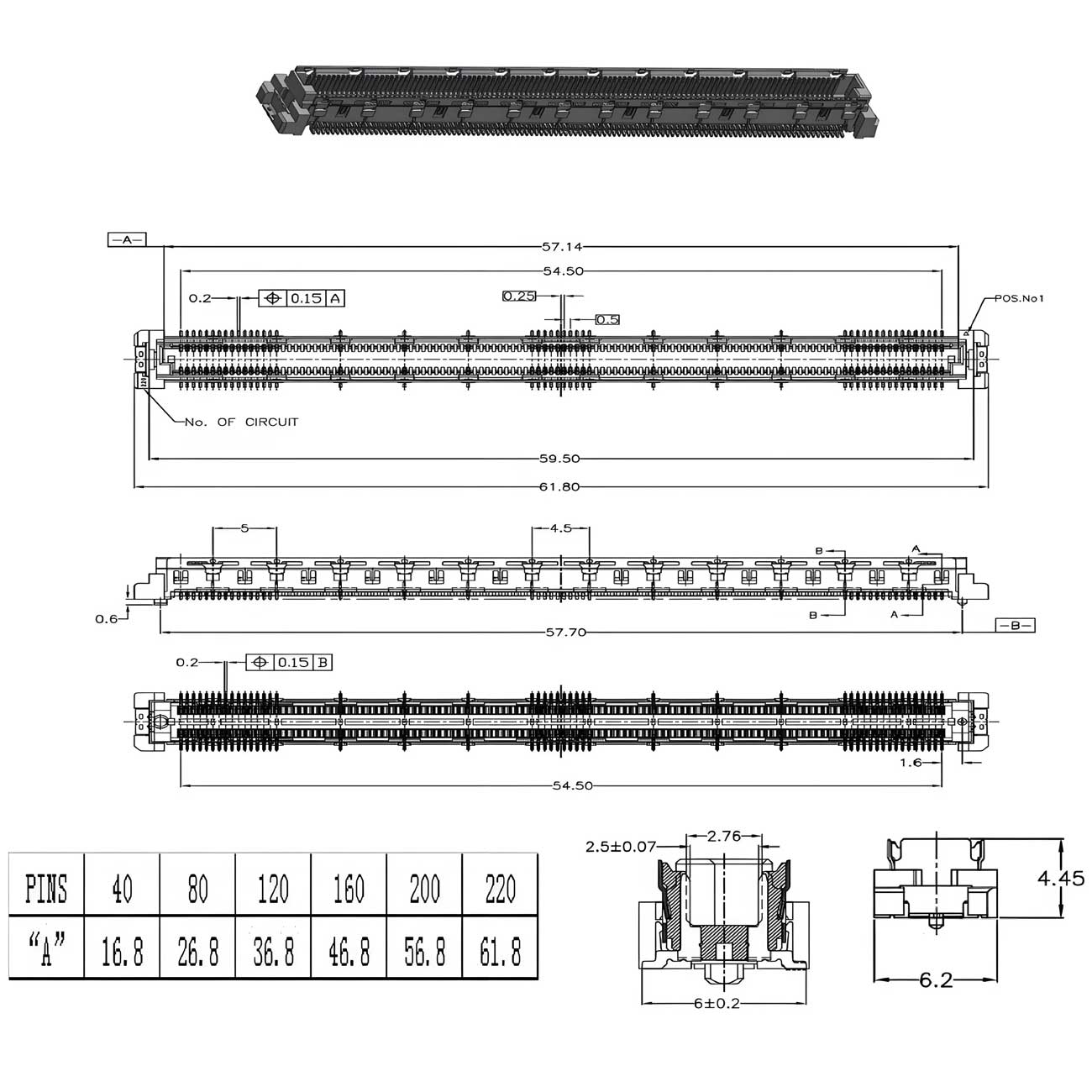

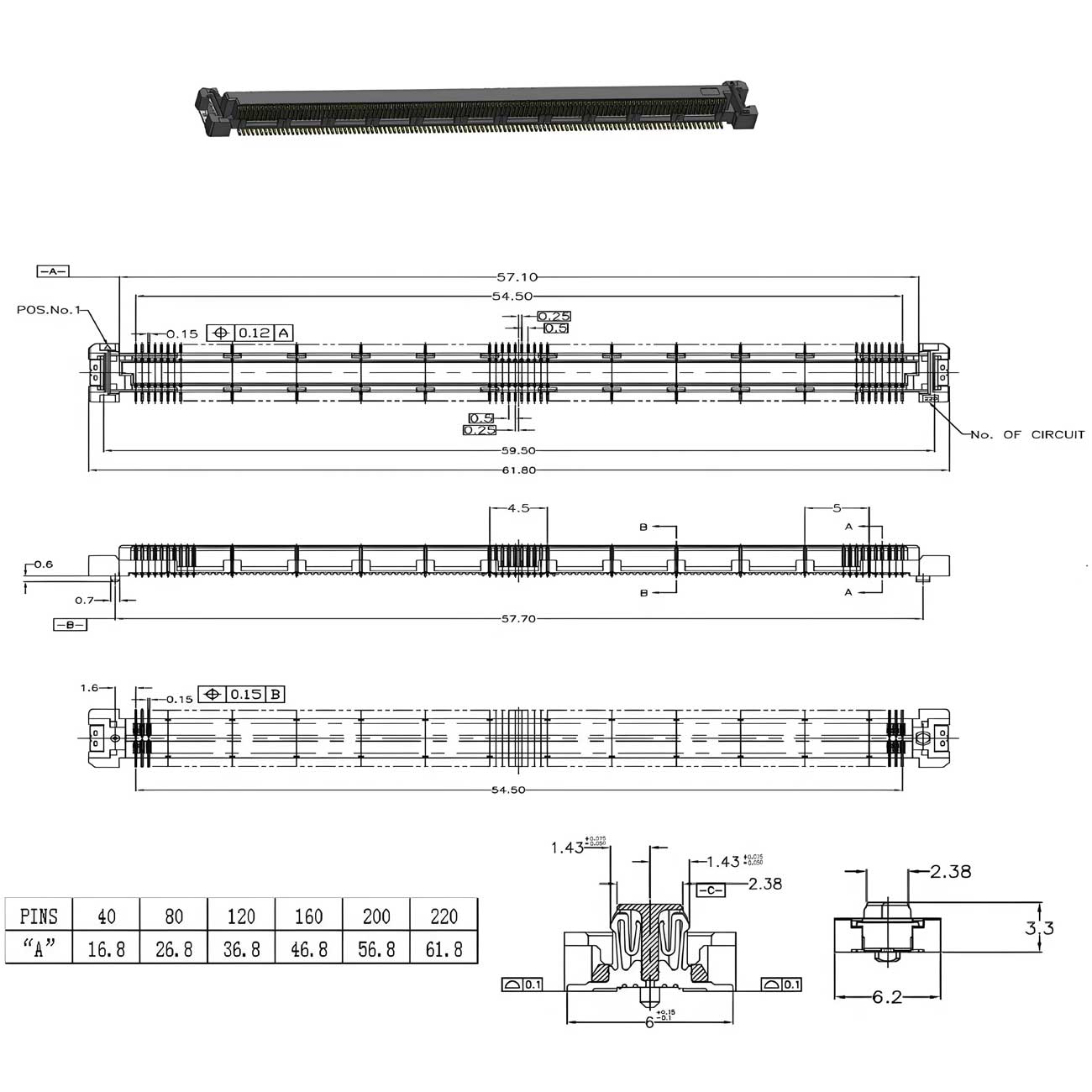

What are the options for board matching heights and pin sizes?
The series supports matching heights ranging from 5.00mm to 8.00mm and offers configuration options ranging from 40 PIN to 220PIN.
