OEM Blind-Mate Fluid Connector(YTF Series) Supplier, Exporter

Non-Locking Design: Relies on external structures for secure fastening.
Dual-Sealed Performance: Maintains leak-free sealing in both mated and unmated states, ensuring safety and reliability.
Durable Materials: Housing and plating provide high resistance to wear and corrosion.
Contamination-Resistant Structure: Flat, anti-pollution and leak-proof structure.Â
Radial Float Mechanism: Requires guide pins or alignment structures for precise mating.
Customizable Tail Interface: Contact the company for tailored tail interface designs.
Overpressure Protection Option: YTF automatic pressure-relief sockets are available for safeguarding against excessive pressure.

Send Inquiry

Product Description

Applications & Operational Environment

YTF Series Fluid Connectors, designed for vehicle-mounted, ship-borne, and ground-based environments, YTF Series Fluid Connectors enable rapid connections between modules (boards) and chassis. They are primarily applied in liquid cooling systems for radar equipment, high-performance servers, and airborne liquid-cooled chassis.

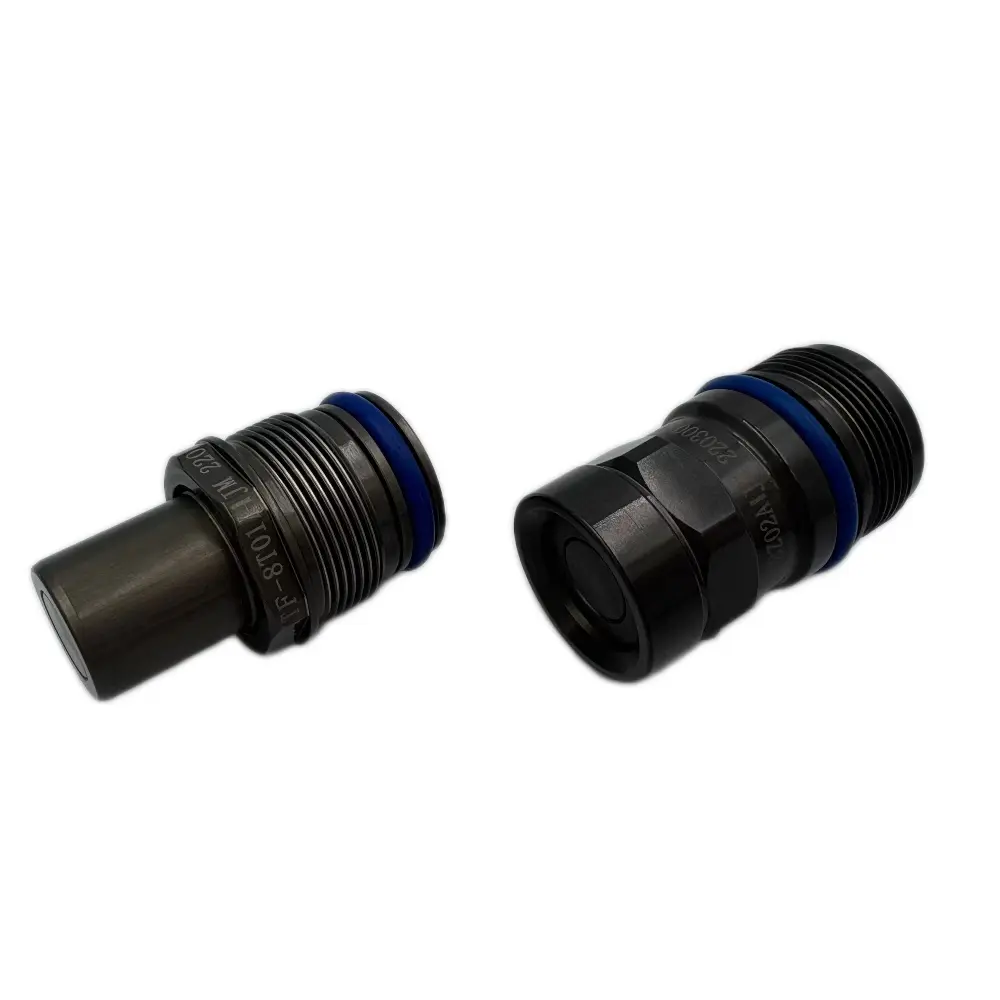

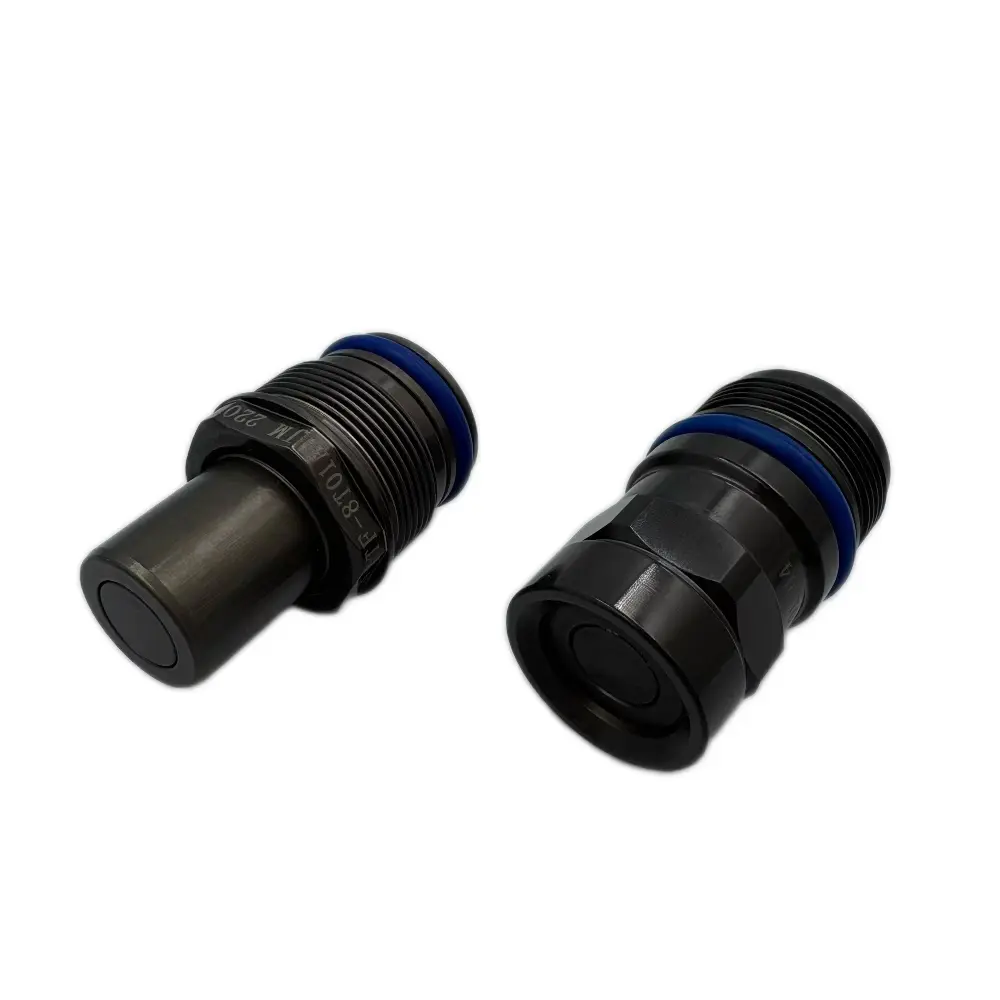

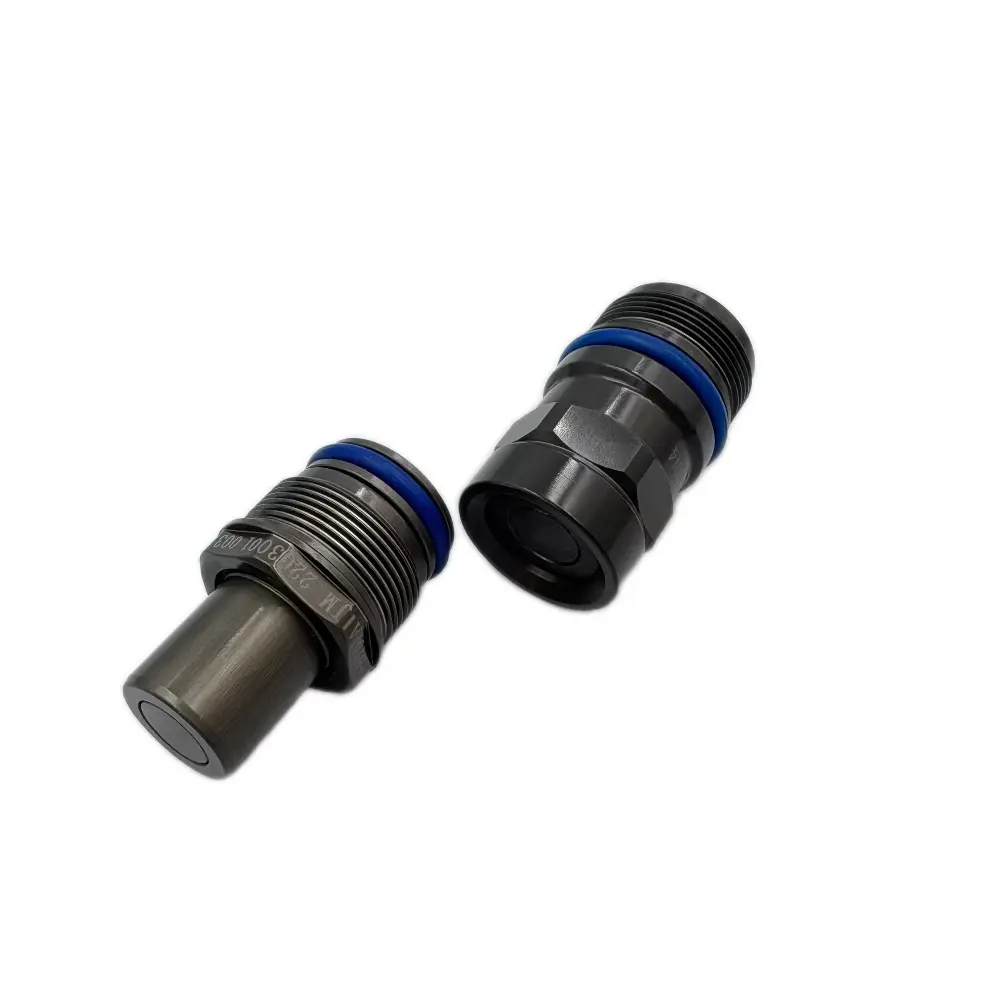

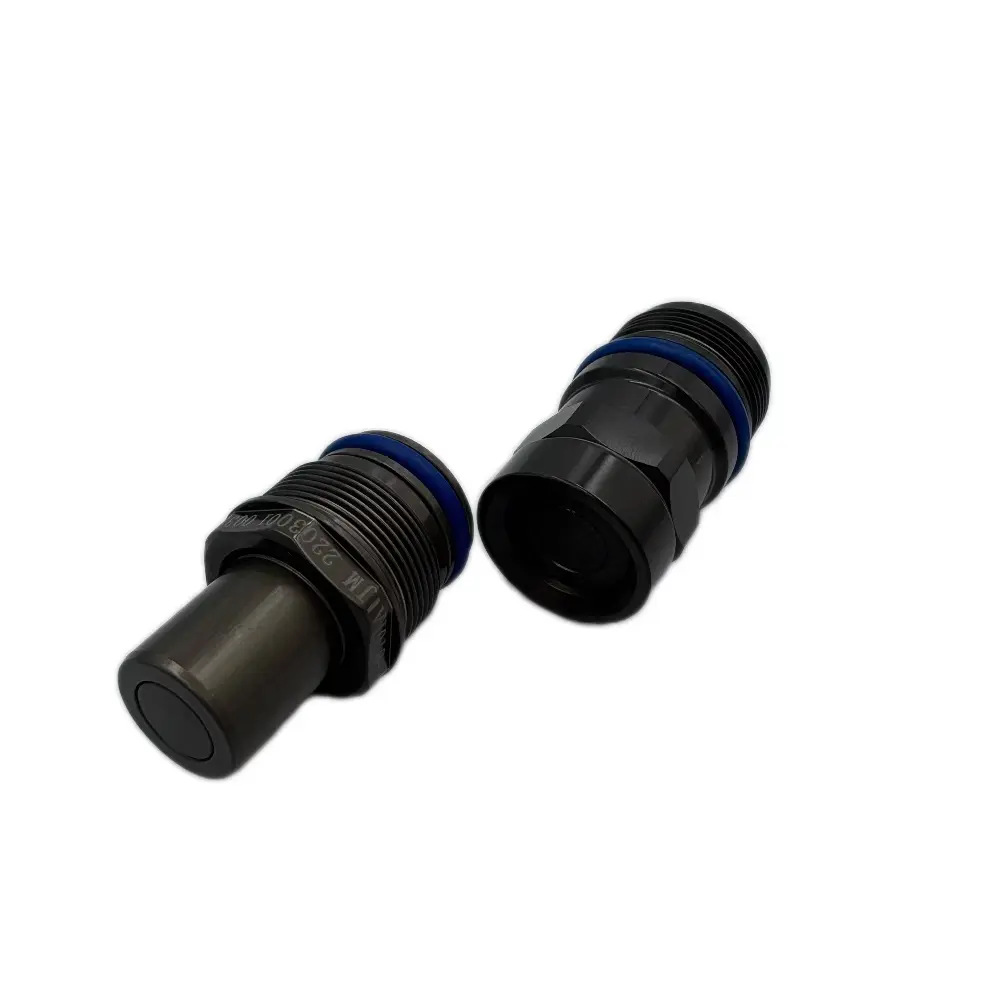

YTF series blind-plug-in fluid connectors

YTF blind-plug self-relieving pressure socket

Technical Performance

Operating Temperature -55 °C to +95 °C

Operating Pressure 0~2MPa

Working Medium Coolant, Deionized Water, etc.

Seal Ring High-strength fluorosilicone rubber, EPDM rubber

Housing Material Surface-treated Aluminum Alloy, Stainless Steel

Mechanical Life 1000 mating cycles

Vibration and Shock Meet requirements of vehicular, marine, and other applications

Salt Spray Test 96 hours

Frequently Asked Questions

What are the primary applications of YTF Series Fluid Connectors?

They are designed for vehicle-mounted, ship-borne, and ground-based environments, mainly used in liquid cooling systems for radar equipment, high-performance servers, and airborne liquid-cooled chassis.

What media can be used with these connectors?

YTF Series Fluid Connectors support various working media, including coolant, deionized water, and other compatible fluids.

What is the operating temperature range for YTF fluid connectors?

These fluid connectors are designed to perform reliably in extreme environments, with an operating temperature range of -55 °C to +95 °C.

How durable are the YTF Series connectors?

They offer a high mechanical life of 1000 mating cycles and are built to meet demanding vibration and shock requirements for marine and vehicular operations.

What sealing and housing materials are used to ensure reliability?

The connectors feature high-strength fluorosilicone rubber or EPDM rubber seal rings. The housing is made of surface-treated Aluminum Alloy or Stainless Steel for robust protection.
