Product Description

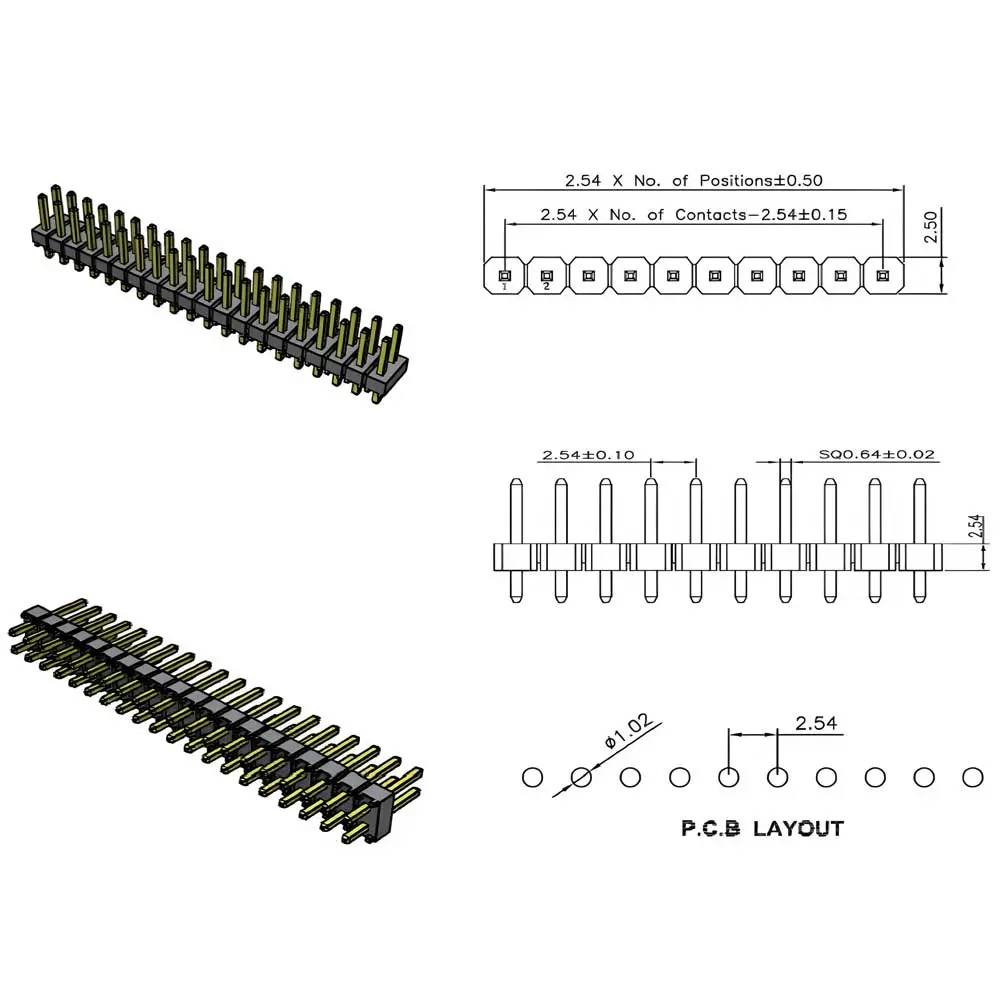

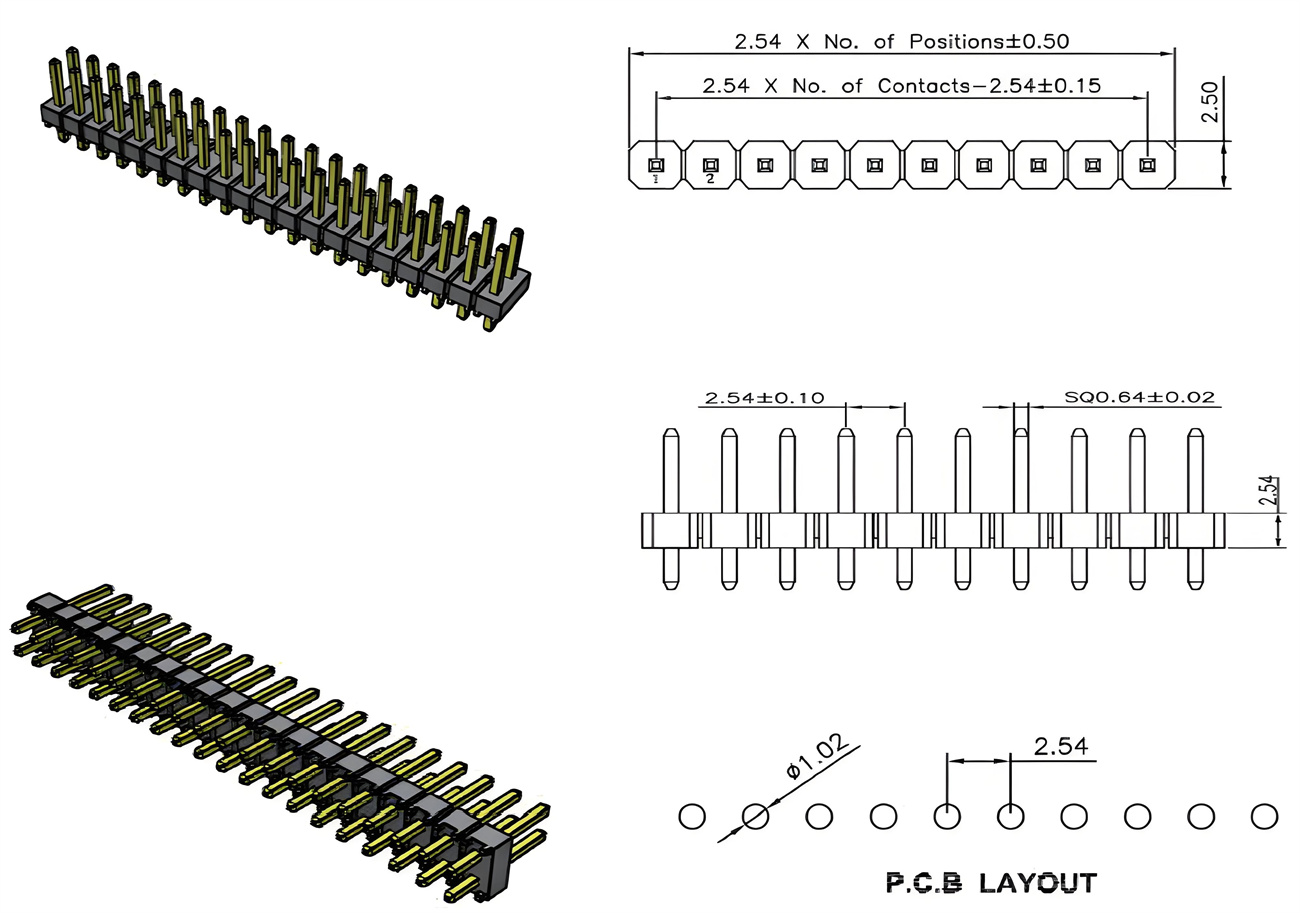

Pin Header Series - 2.54mm Pitch Pin Header

(High Speed Transmission Electrical Connectors)

Specification parameters

Material Number: 2HTSW-1XX-X-L-D / 2TSW-1XX-X-L-D
Insulation Material: Black PBT / LCP
Terminal Material: Phosphor copper
Plating Options: Max 50u" Gold Plated on Nickel
Rated Current: 5.0A per pin
Product Spec: 2 PIN ~ 100PIN
Working Range: -55°C to +125°C

Lead-Free

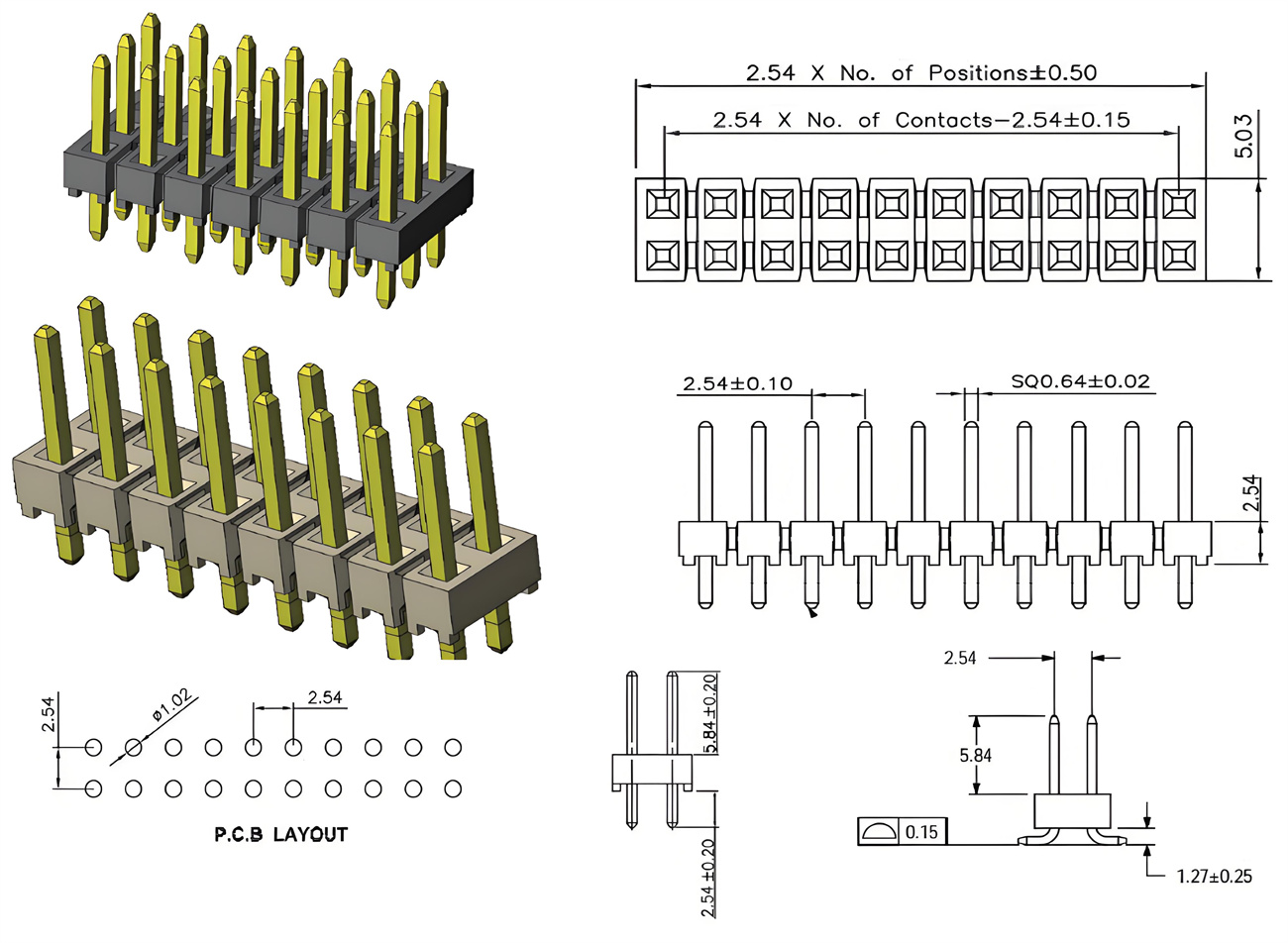

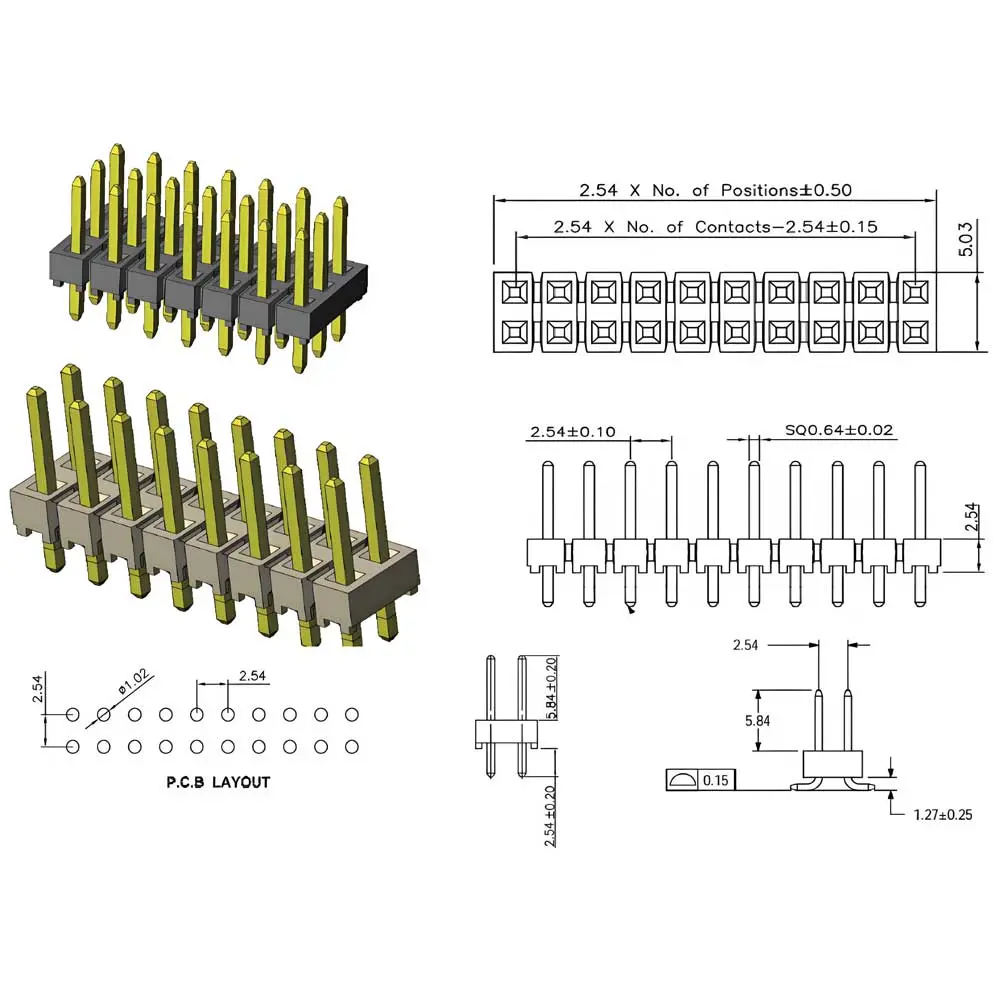

Pin Header Series - 2.54mm Pitch Pin Header

(High Speed Transmission Electrical Connectors)

Specification parameters

Material Number: 2 HTSW-1XX-2-L-D
Insulation Material: Black PBT
Terminal Material: Phosphor copper
Plating Options: Max 50u" Gold Plated on Nickel
Rated Current: 5.0A per pin
Product Spec: 2PIN ~ 100PIN
Working Range: -55°C to +125°C

Lead-Free

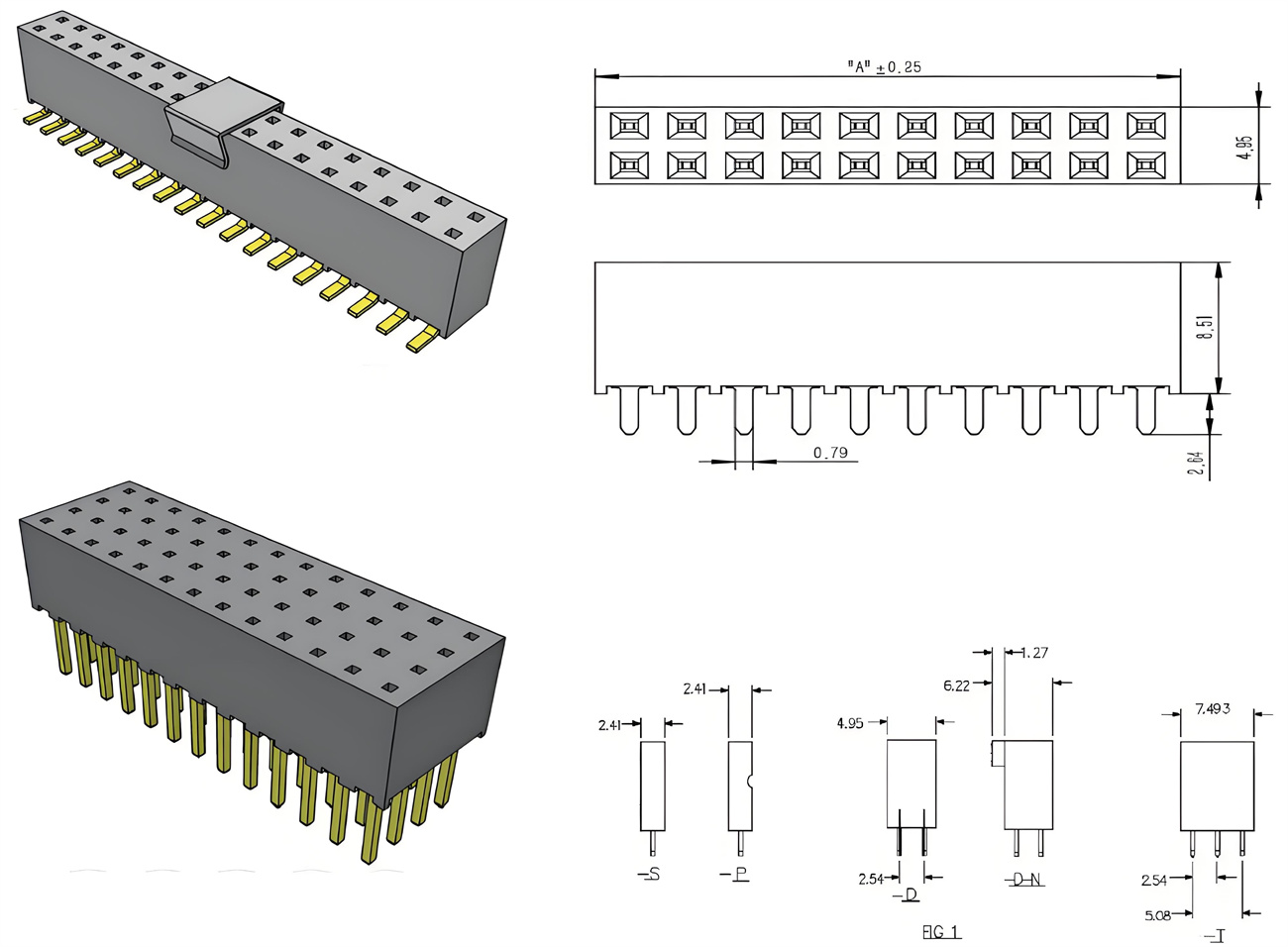

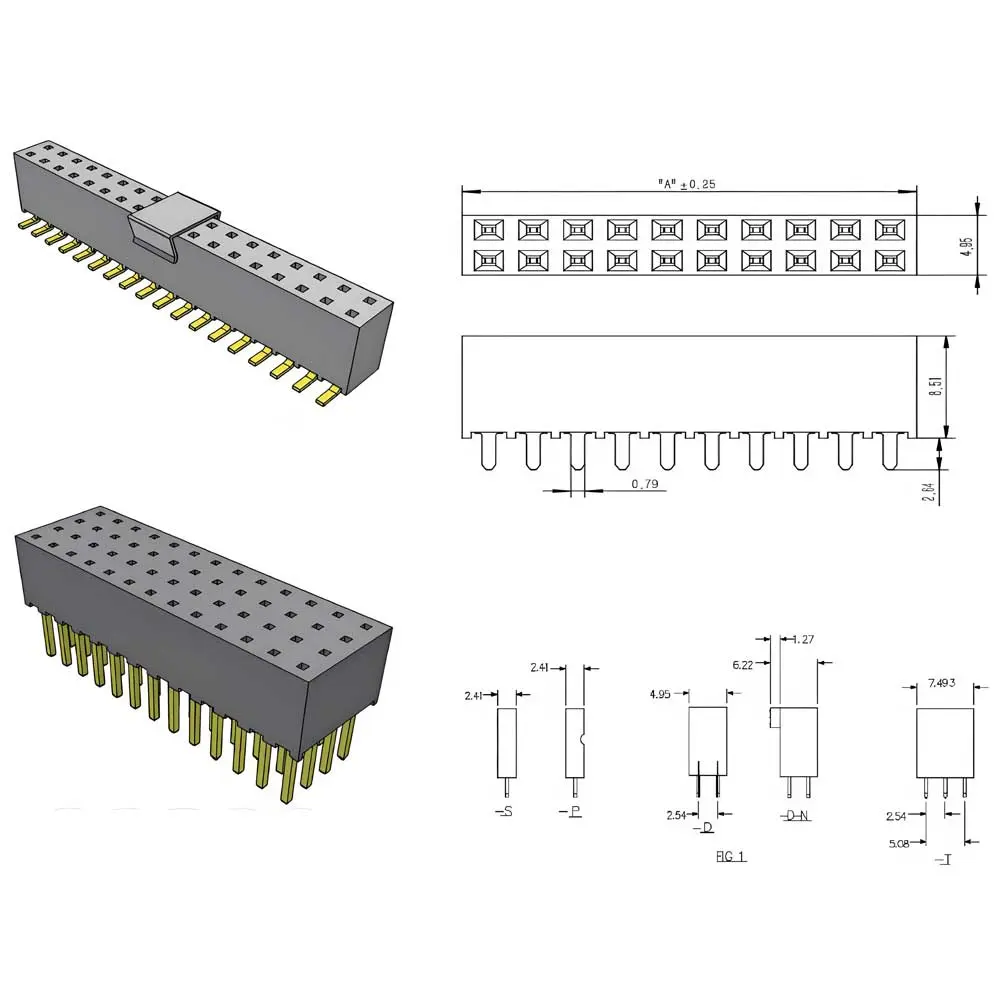

Pin Header Series - 2.54mm Pitch Header

(High Speed Transmission Electrical Connectors)

Specification parameters

Material Number: 85SSW-XXS01H10-02
Insulation Material: Black PBT
Terminal Material: Phosphor Bronze
Plating Options: Max 50u" Gold Plated on Nickel
Rated Current: 4.7 A per pin
Rated Voltage: 465 VAC / 655 VDC
Touchpoint Res: 10mΩ
Holding Force: 6.6N
Mechanical Life: 100 times (10u" gold)
Working Range: -55°C to +125°C

Lead-Free

Frequently Asked Questions

What is the pitch and configuration range of these pin headers?

These pin headers feature a standard 2.54mm pitch spacing. They are highly customizable and configurable, ranging from 2 PIN up to 100 PIN setups to match various PCB design layouts.

What materials are used for insulation and why?

We use high-quality PBT (Polybutylene Terephthalate) and LCP (Liquid Crystal Polymer) in black. These engineering plastics offer outstanding electrical insulation properties, excellent heat resistance, and mechanical stability.

Are these pin headers suitable for high-speed transmission applications?

Yes, these connectors are designed as high-speed transmission electrical connectors. The terminal structure and choice of phosphor copper/bronze materials ensure low contact resistance and high signal integrity.

What type of plating is applied to the pin terminals?

The terminals are plated with a maximum of 50u" Gold over a Nickel base. This plating standard provides superior oxidation resistance, long-term durability, and stable electrical conductivity.

What is the operating temperature range for these connectors?

These pin headers are designed to perform reliably in extreme industrial environments, supporting a wide operating temperature range from -55°C up to +125°C.

Do these pin headers meet lead-free environmental compliance standards?

Yes, all models in this 2.54mm Pitch Pin Header series are manufactured to meet Lead-Free compliance regulations, ensuring eco-friendly and safe integration into your electronics.
