The 800X Series high-speed electrical connectors are designed for high-performance transmission, supporting rate capabilities up to 28 Gbps.

The housing features black Liquid Crystal Polymer (LCP) for robust insulation, while the contact terminals are made from high-durability Beryllium Copper with gold plating on nickel.

These connectors operate efficiently within a wide temperature range, from -55°C up to +125°C, making them highly reliable in extreme working conditions.

The series offers versatile scalability with matching heights ranging from 7.00mm to 12.00mm, and multiple pin count options ranging from 10 PIN up to 150 PIN.

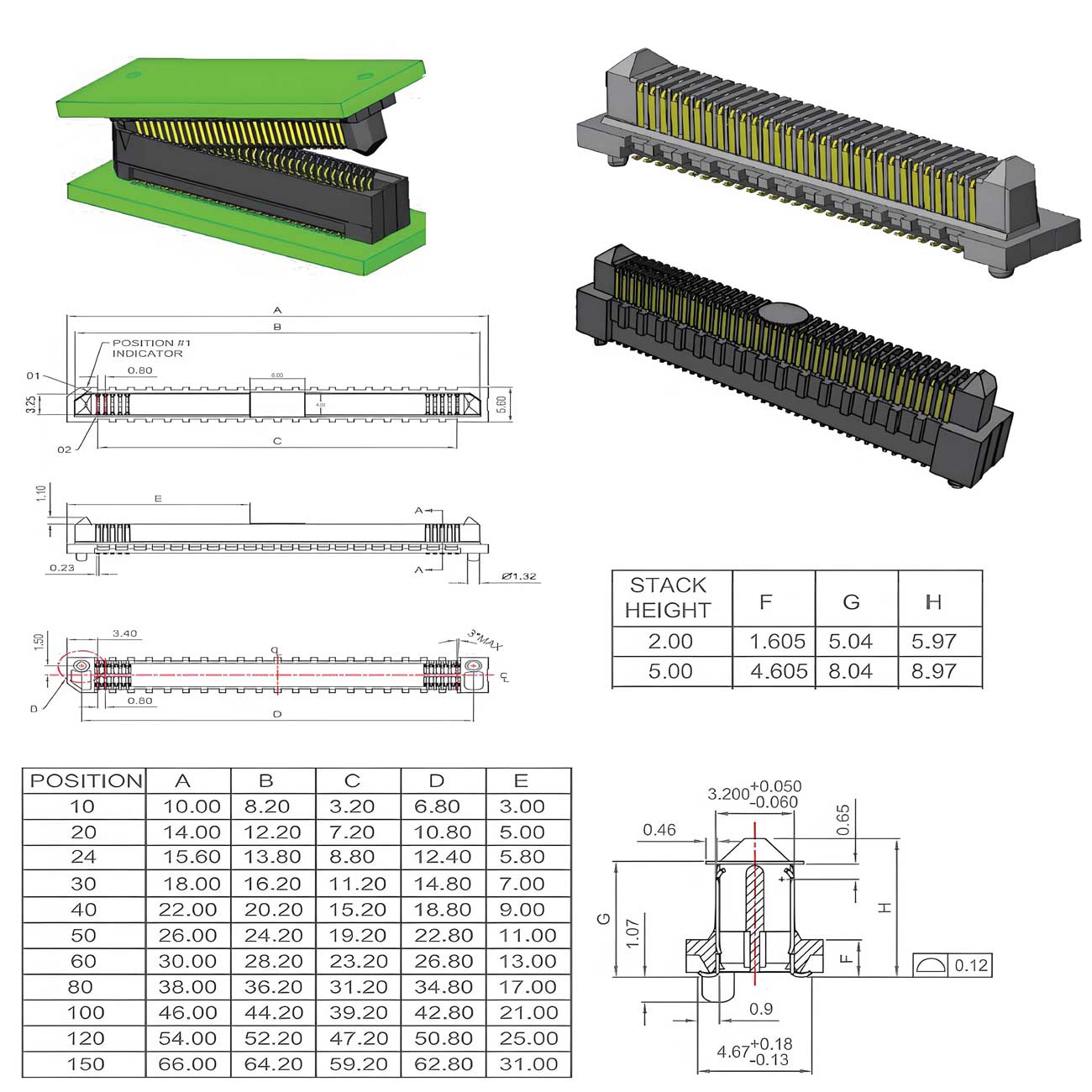

Both the 800X Series Plug and Socket designs are completely Lead-Free, aligning with modern eco-friendly and manufacturing standard compliance guidelines.

The connectors have a rated current of 2.0A per pin @ 80°C and are designed to withstand up to 100 mating cycles reliably.
