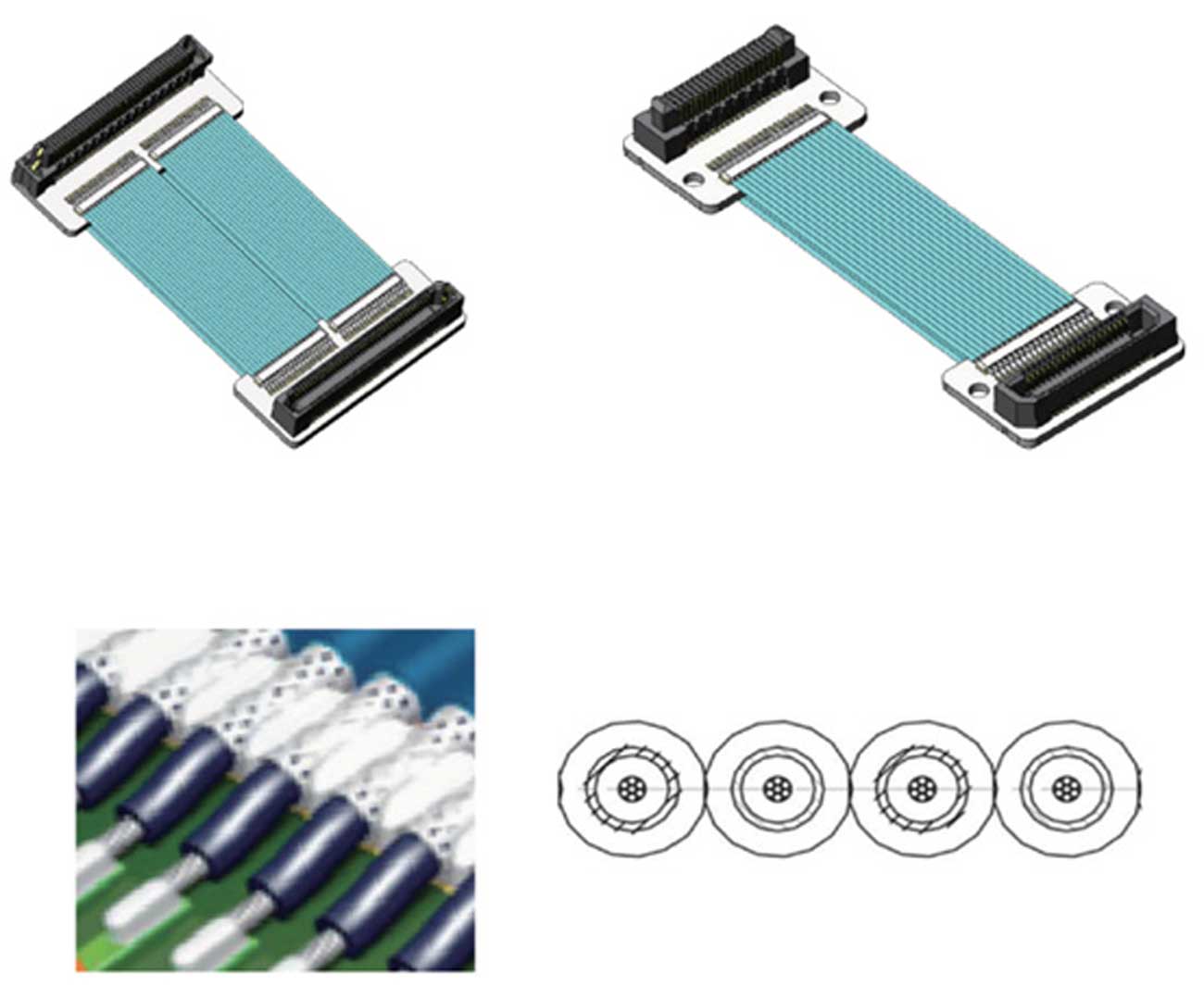

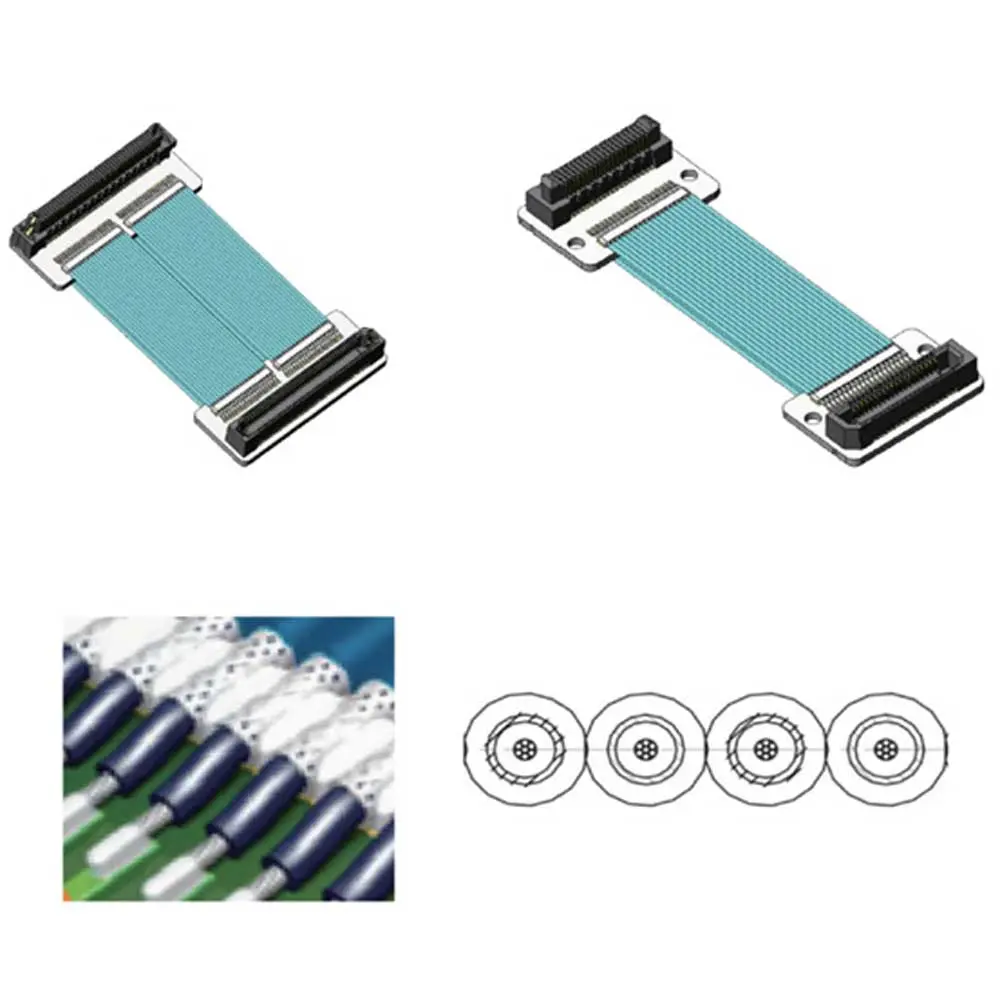

800XC Series - 0.50mm Pitch High Speed Cable (High Speed Transmission Electrical Connectors)
Specification Parameters
Material Number
800 XC-XXXXXXX
Plating Options
Max 30u" Gold Plated on Nickel
Rated Current
500mA per pin
Cable Specification
38AWG micro coaxial cable
Impedance
Single-ended: 50Ω
Propagation Delay
4.79nsec/meter
Transmission Rate
14 Gbps
Cable Length
Max 1.00 meters
Working Temperature Range
-25℃ to +105℃
Compliance
ROHS Compliant
Frequently Asked Questions
Q: What is the transmission rate of the 800XC Series cable assembly?
A: The 800XC Series supports high-speed transmission rates of up to 14 Gbps.
Q: What type of cable is used in this connector assembly?
A: It utilizes a high-quality 38AWG micro coaxial cable configured for single-ended 50Ω impedance.
Q: What is the maximum available length for the 800XC Series cable?
A: The maximum supported cable length for this specification is 1.00 meters.
Q: What is the operating temperature range for these high-speed connectors?
A: The connectors have a reliable working temperature range of -25℃ up to +105℃.
Q: What are the plating options available for the connector contacts?
A: It features plating options up to a maximum of 30u" Gold Plating over Nickel for enhanced durability and connectivity.
Q: Is the 800XC Series cable assembly environmentally compliant?
A: Yes, the 800XC Series cable assembly conforms fully to RoHS standards.
