Frequently Asked Questions

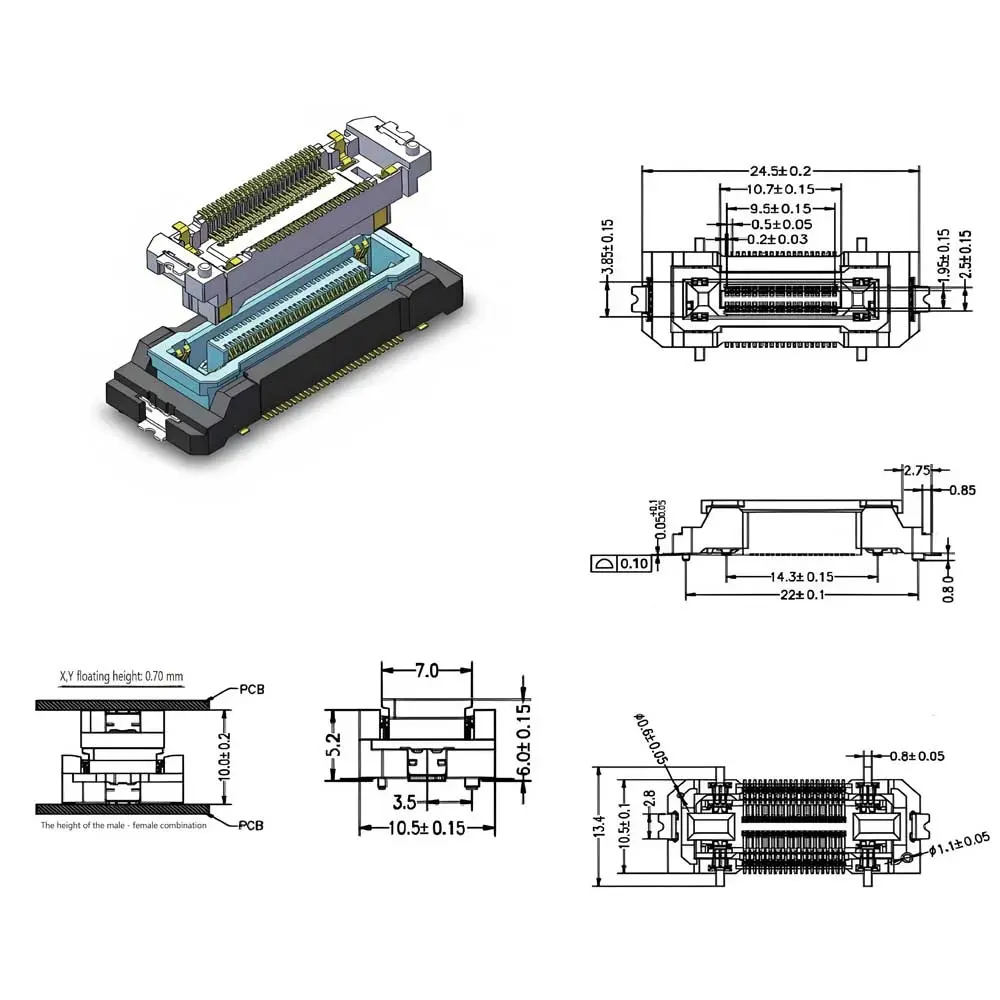

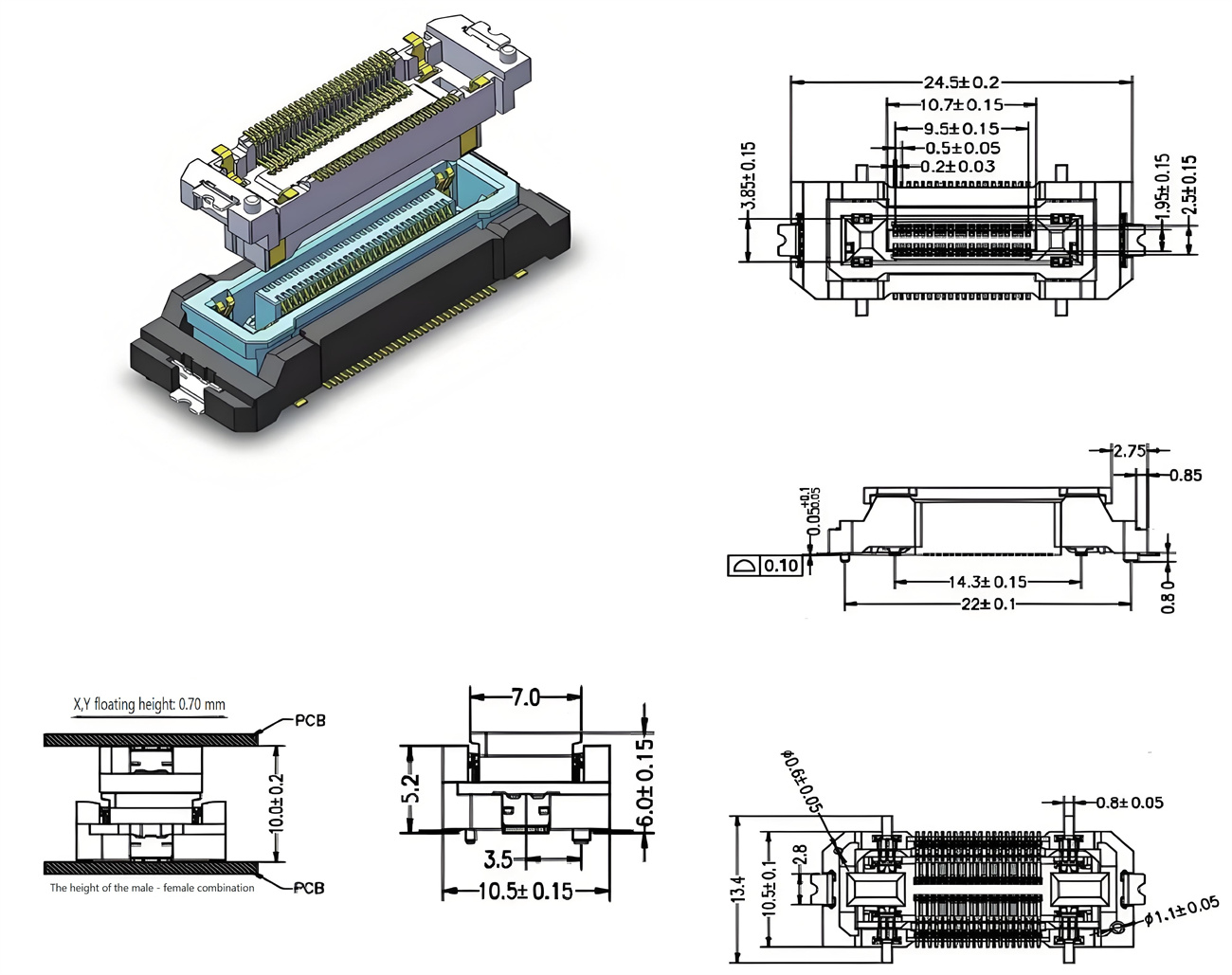

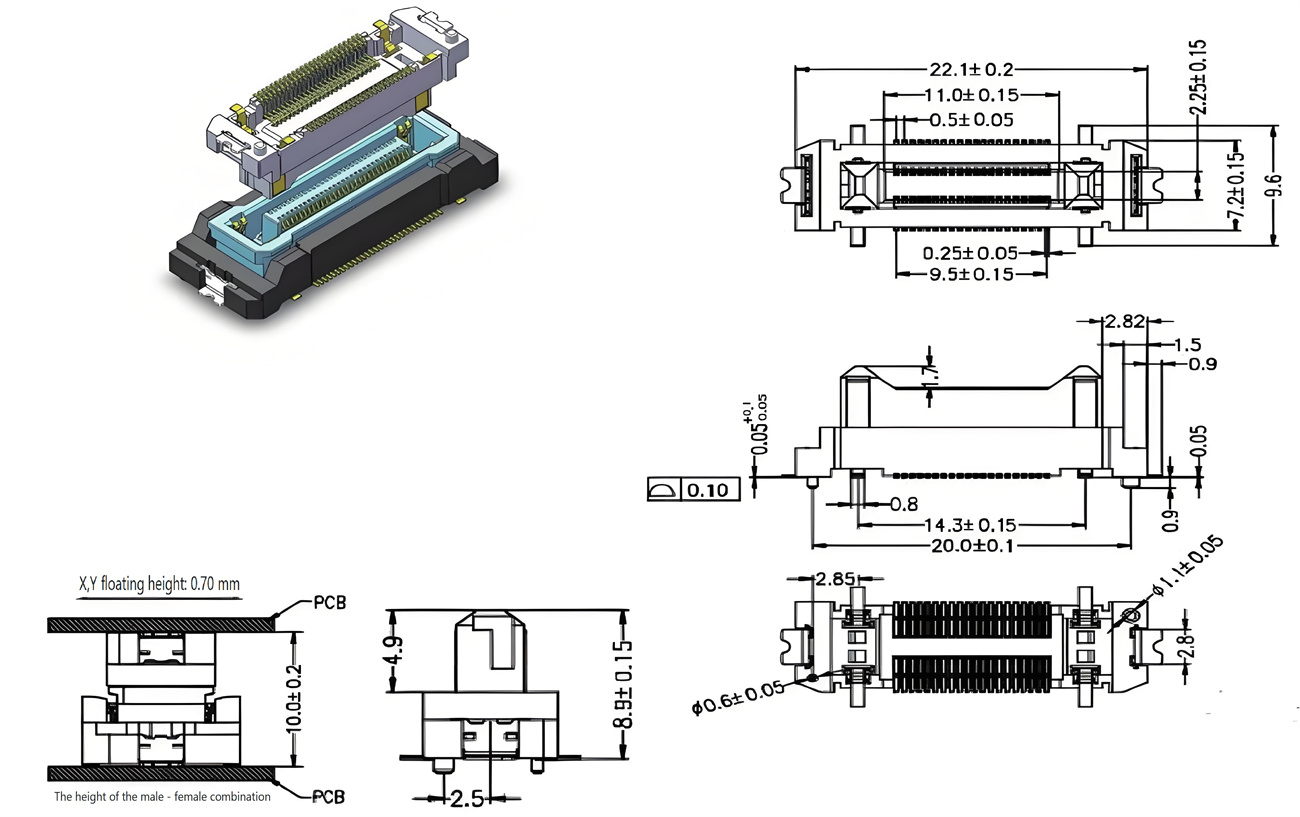

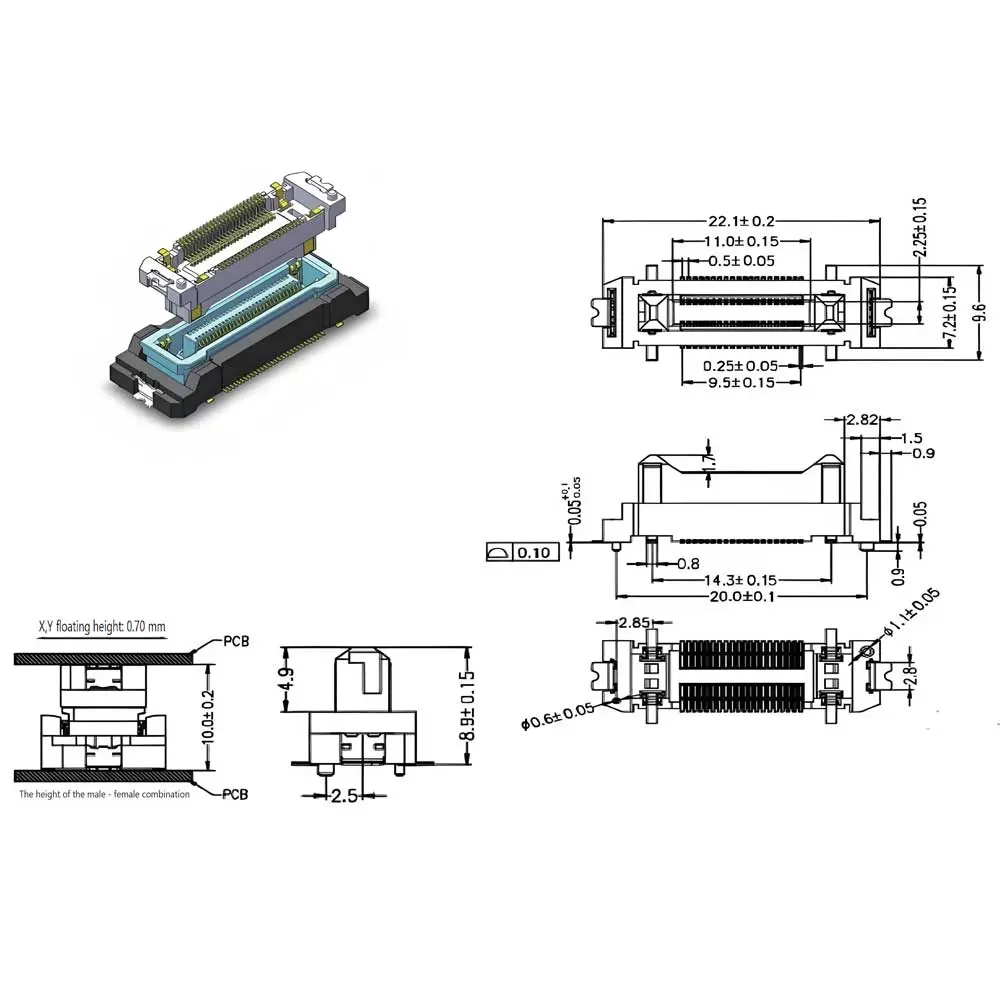

What is the pitch size of this Floating Series connector?
The connectors in this series feature a standard 2.54mm pitch design, suitable for high-speed transmission electrical connections.
What are the terminal and insulation materials used?
The insulation material is high-performance black LCP, and the terminals are made from durable copper alloy with optional gold plating over nickel.
What is the rated current for signal and power pins?
The rated current is designed for 0.5A per pin for signal transmissions and up to 5A per pin for power supply requirements.
What pin sizes are available for this series?
The Floating Series connectors support a pin count configuration ranging from 40 PIN to 100 PIN.
Are these electrical connectors lead-free?
Yes, all connectors in this specifications series are manufactured to meet Lead-Free compliance standards.
What is the operating temperature range?
The connectors support an operating temperature range of -55℃ to +125℃, with a stable working range of -40℃ to +105℃.
