Pin Header Series-1.00mm Pitch Pin Header
(High Speed Transmission Electrical Connectors)

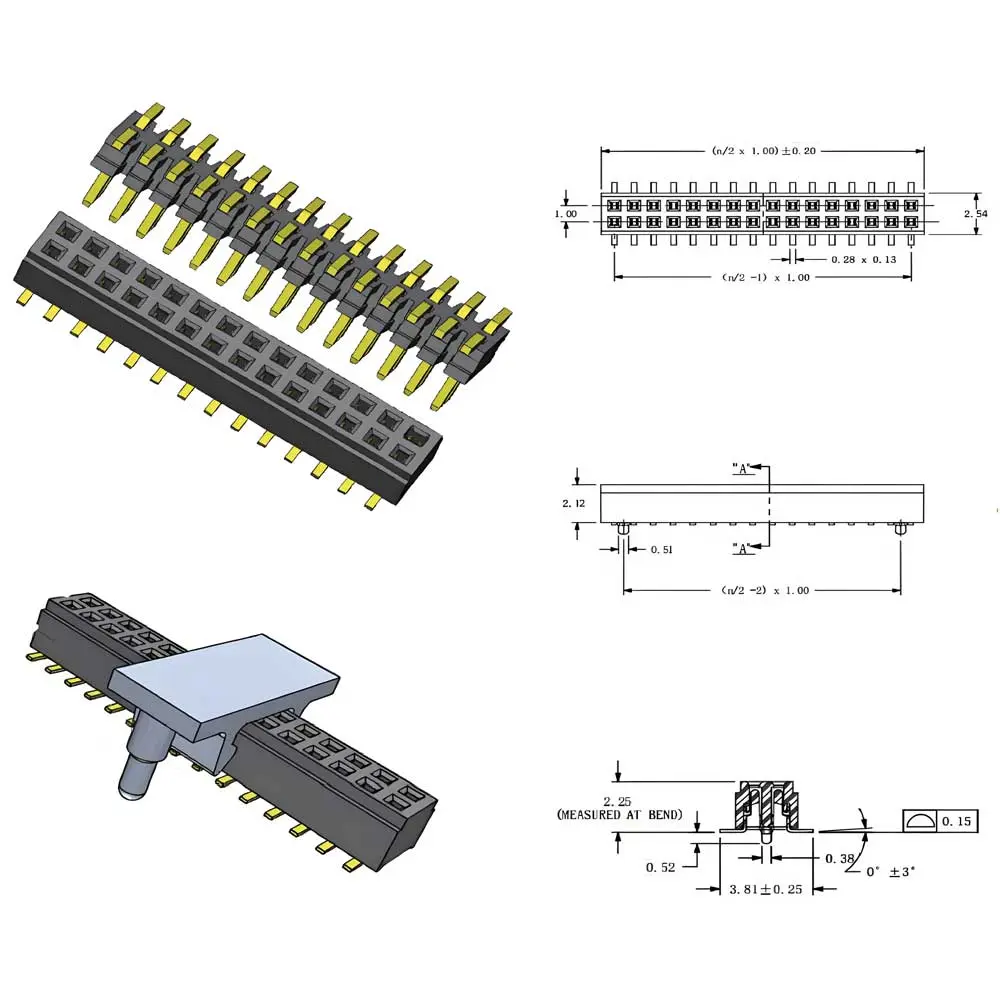

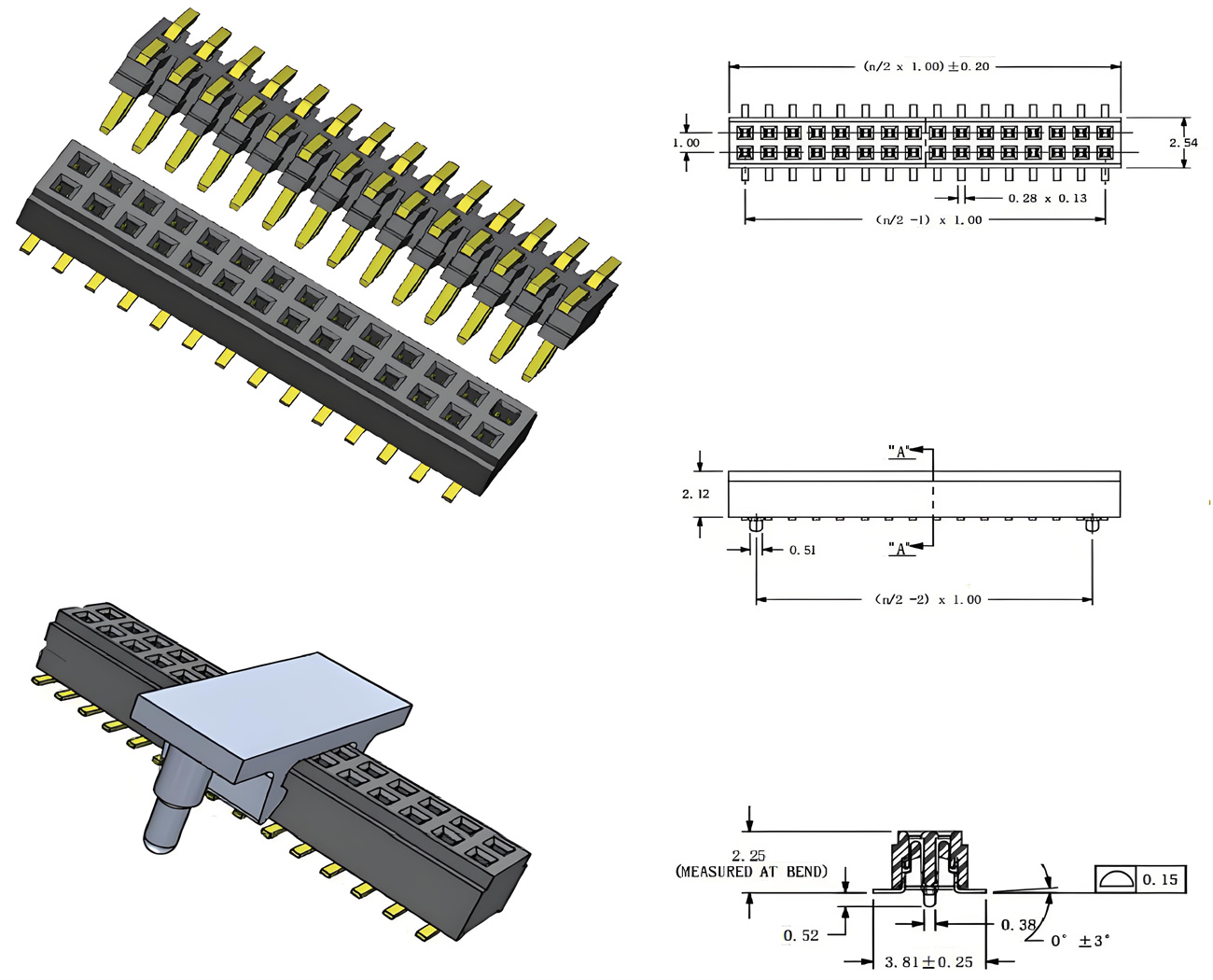

Specification Parameters
Material number: 90 FTM-66165G10T
Insulation material: black LCP
Terminal material: beryllium copper
Plating Options: Max 50u" Gold Plated on Nickel
Rated current: 2.8A (2 pins)
Touch point resistance: 15 mΩ
Holding force: 2.2N
Mechanical life: 100 cycles (10u "gold)
Working range: -55℃ to +125℃
Coplanarity: 0.10 mm
Lead-Free
Pin Header Series - 1.00mm Pitch Header
(High Speed Transmission Electrical Connectors)

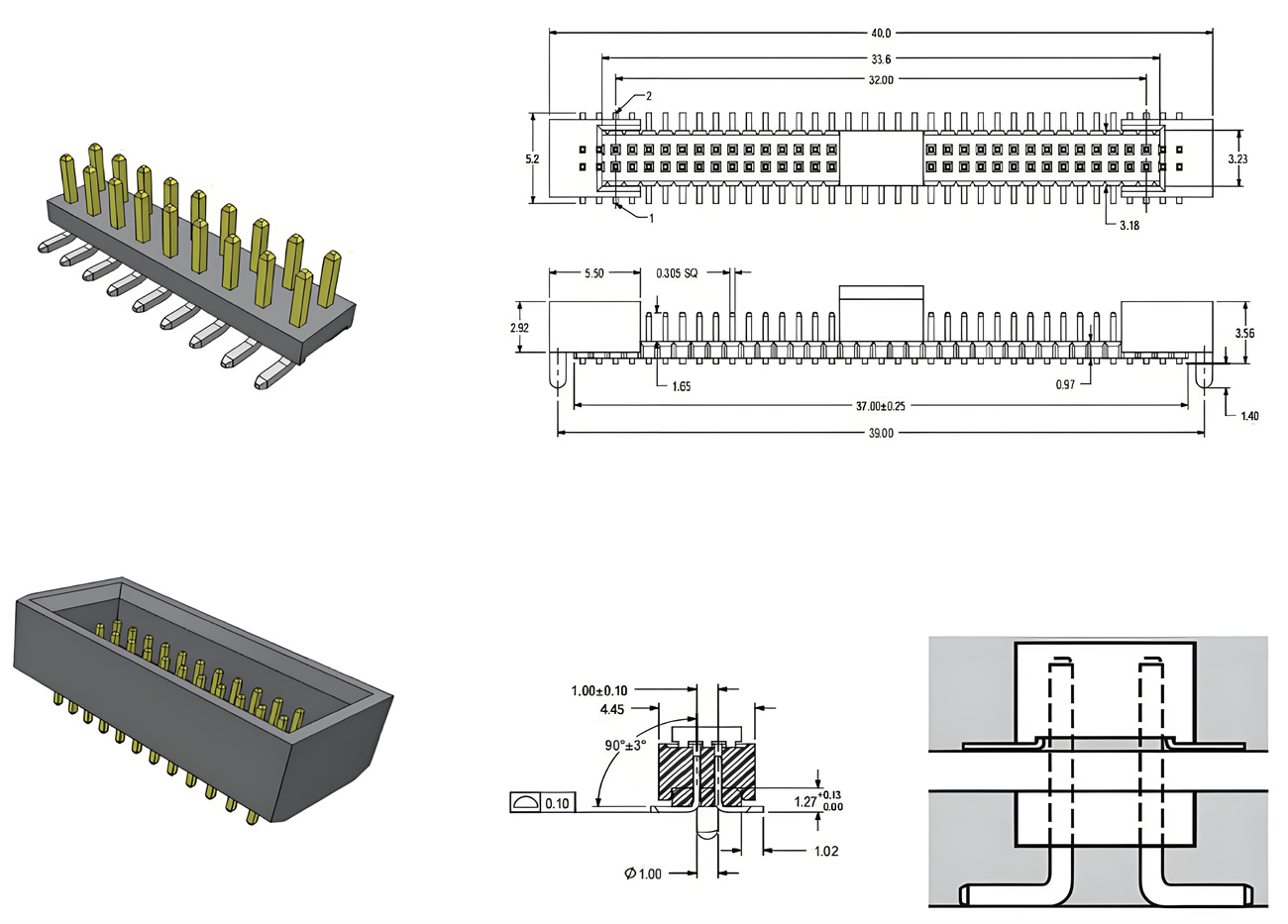

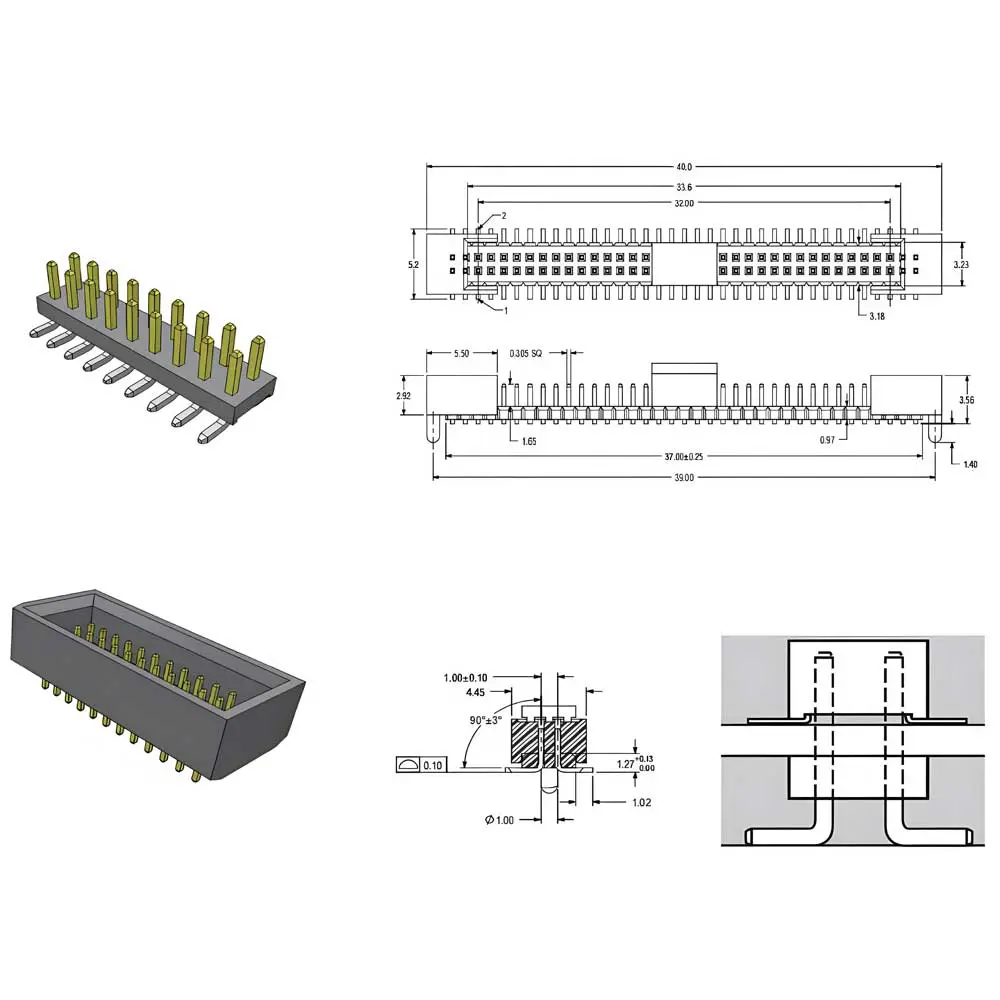

Specification Parameters
Material Number: 85 CLM-XXGXXAT
Insulation material: black LCP
Terminal Material: Phosphor Bronze
Plating Options: Max 10u" Gold Plated on Nickel
Rated current: 2.9A (2 pins)
Touchpoint resistance: 15mΩ
Rated Voltage: 270 VAC
Coplanarity: 0.15 mm
Working range: -40℃ to +125℃
Lead-Free
Frequently Asked Questions (FAQ)
What is the pitch size of these pin headers?
These pin headers feature a precise 1.00mm pitch, designed for compact and high-density electrical connector layouts.
Are these electrical connectors suitable for high-speed transmission?
Yes, both pin header series are specifically engineered as high-speed transmission electrical connectors.
What insulation materials are used in these connectors?
Black LCP (Liquid Crystal Polymer) is used as the insulation material, offering excellent thermal and mechanical stability.
What are the operating temperature ranges for these pin headers?
The 90 FTM series has a working range of -55℃ to +125℃, while the 85 CLM series has a working range of -40℃ to +125℃.
Are these products environment-friendly and lead-free?
Yes, both connector series are Lead-Free compliant, meeting environmental safety requirements.
