Product Description

0.50mm Pitch Plug And Socket Same-Body

(High Speed Transmission Electrical Connectors)

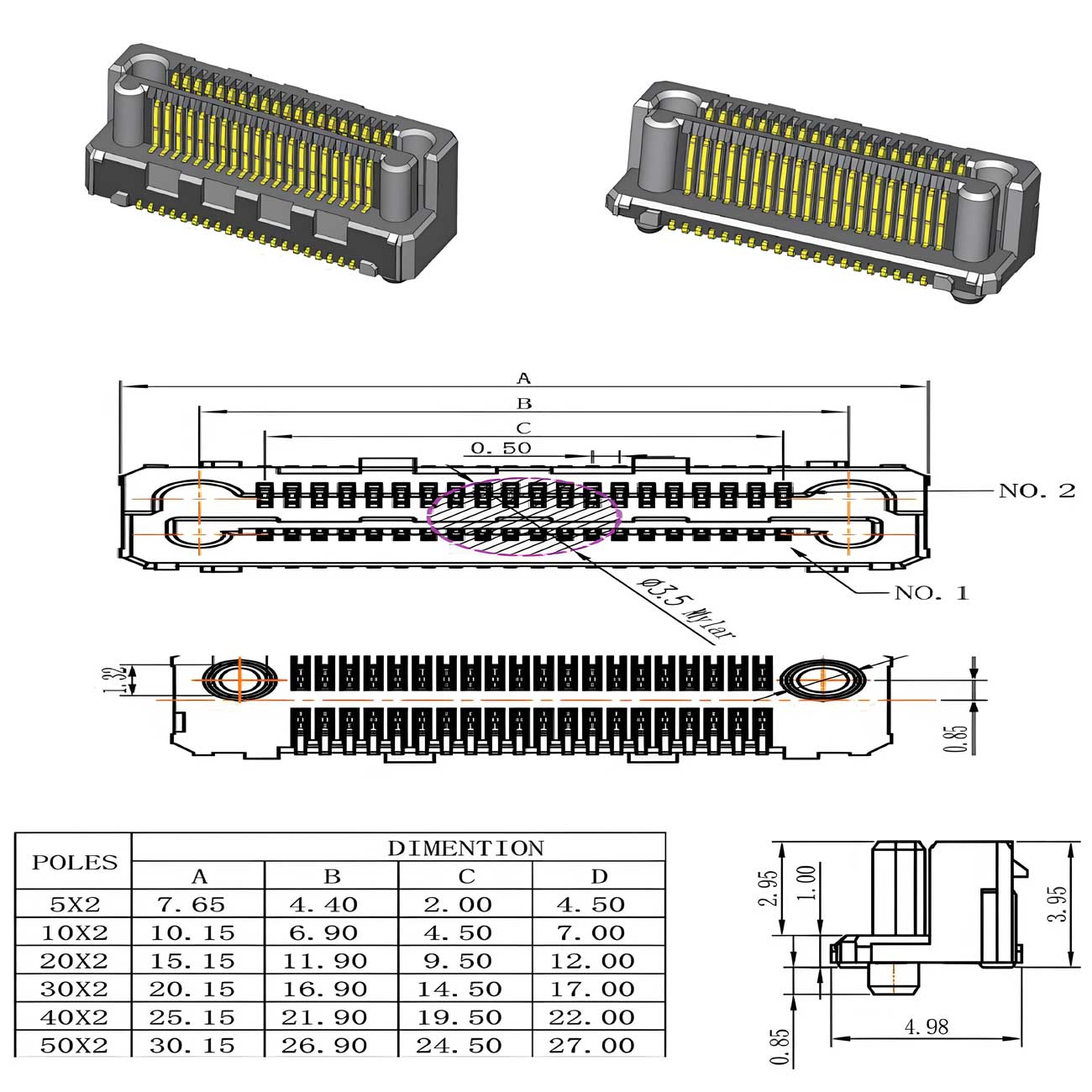

Male-and-female-same-body-series-0.50mm-Pitch-Plug-And-Socket

Specification Parameters

Material number: 81A05-XXXVOX. XH10T-XX
Insulation material: Black LCP
Terminal Material: Phosphor Bronze
Plating Options: Max 50u" Gold Plated on Nickel
Rated current: 1.8A per pin @ 95℃ (2 pins powered)
Rated voltage: 175VAC
Matching height: 5.00mm - 12.00mm
Pin specification: 10PIN - 100PIN
Operating temperature: -55℃ to +125℃
Transmission rate: 14Gbps
Mating times: 100 cycles
Coplanarity: 0.12mm
Lead-Free Status: Lead-Free Compliant

Frequently Asked Questions (FAQ)

What is the transmission rate of this Same-Body connector?
This connector supports high-speed transmission rates of up to 14Gbps.
What matching heights are available for this series?
The matching height ranges from 5.00mm to 12.00mm, accommodating various board-to-board distance requirements.
What are the pin specification options?
The pin specifications range from 10PIN up to 100PIN configuration options.
What is the operating temperature range?
It is designed to operate reliably in harsh environments with a temperature range of -55℃ to +125℃.
What materials are used for insulation and terminals?
The insulation material is high-temperature black LCP, and the terminals are made of Phosphor Bronze with up to 50u" Gold Plating on Nickel.
Is the product lead-free compliant?
Yes, the connector is completely lead-free, ensuring environmental compliance.
