Product Description

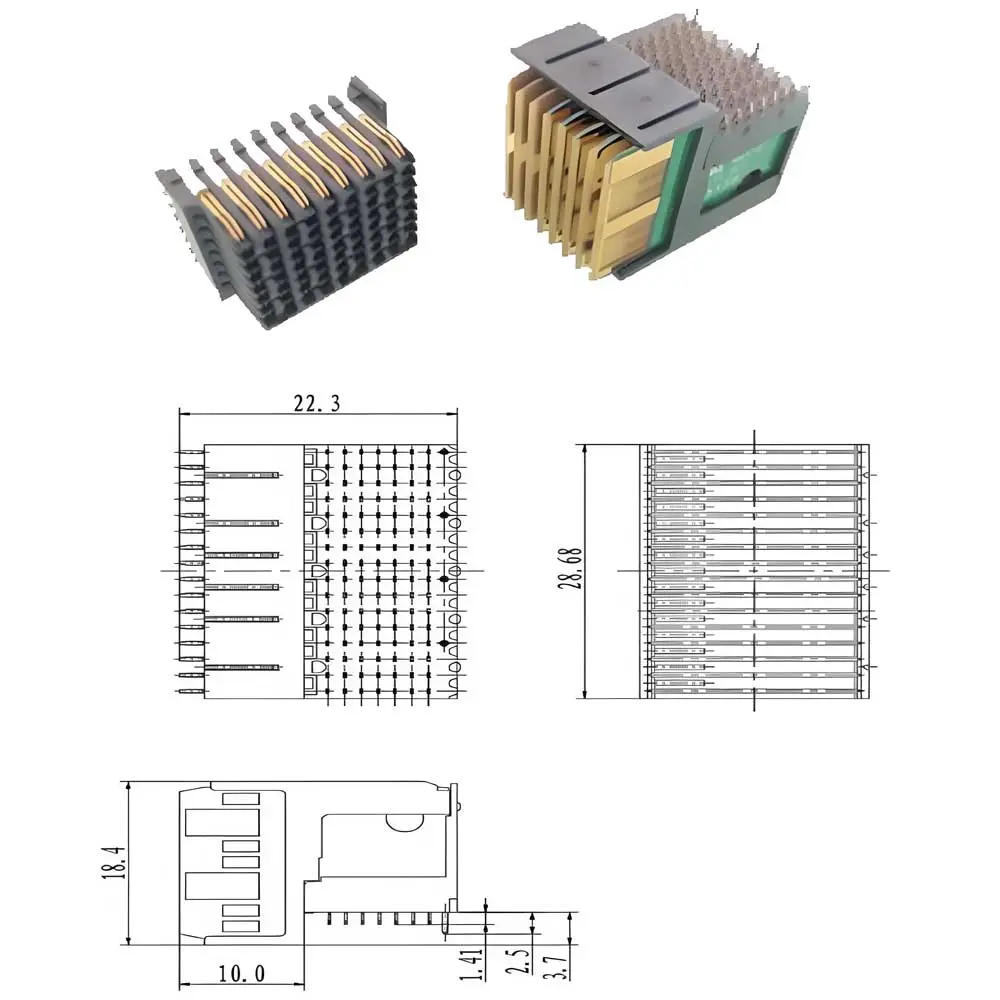

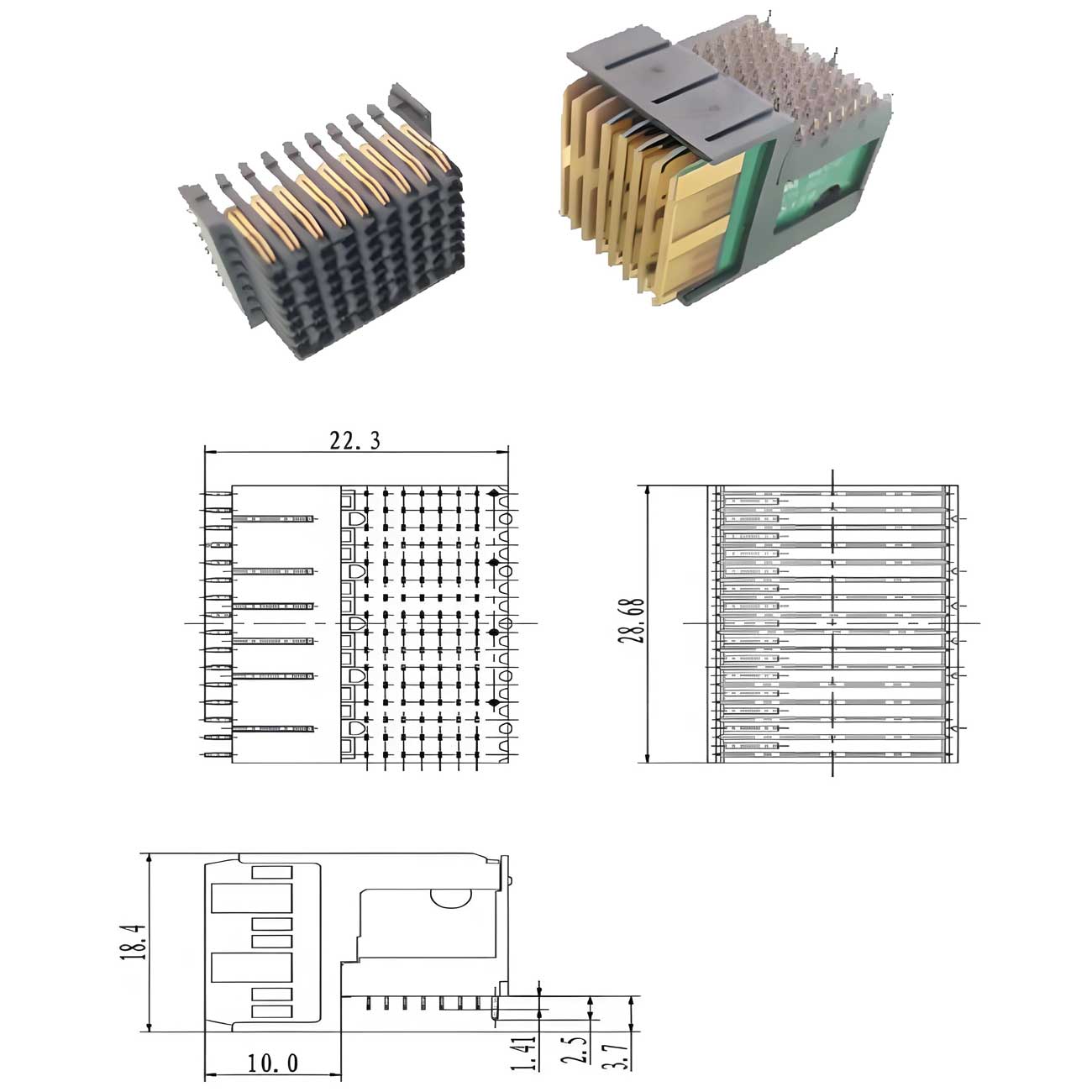

VPX Series - Slot Backplane Connector

(High Speed Transmission Electrical Connectors)

Specification Parameters

Material Number: C1410187-3

Insulation Material: Black LCP

Plating Options: Max 30u" Gold Plated on Nickel

Overall Dimensions: 28.68mm × 18.4mm × 22.35mm

Contacts Config (112 contacts, 7×16): 32 pairs of differential contacts, 8 single-ended contacts, 40 shielded contacts

Pin Pitch: 1.35mm × 1.8mm

Number of Columns: 16 Columns

Contact Resistance: ≥1000 MΩ @ 100V DC

Maximum Mating: 200 Cycles

Working Range: -55℃ to +105℃

Rated Current: Signal: 1.0A per pin @ 95℃ | Grounding: 8.0A per pin @ 95℃

VPX Series - Multi-model Backplane Connector

(High Speed Transmission Electrical Connectors)

The Left Edge Module of the Daughter Board (C1410189-3)

Size: 16.08mm × 18.4mm × 22.35mm
56 contacts (7×8): 4 differential sub-contacts, 16 single-ended contacts, 3 power PCB chips
Pin pitch: 1.35mm × 1.8mm
No. of columns: 8 columns

The Right Edge Module of the Daughter Board (C1410190-3)

Size: 28.68mm × 18.4mm × 22.35mm
112 contacts (7 x 16)
Pin pitch: 1.35mm × 1.8mm
No. of columns: 16 columns

Backplane Intermediate Module (C410140-1)

Size: 28.68mm × 18.4mm × 22.35mm
112 contacts (7x16)
Pin pitch: 1.35mm × 1.8mm
No. of columns: 16 columns

The Left Edge Module of the Backplane (C1410186-1)

Size: 16.07mm × 18.6mm × 12.12mm
72 contacts (9x8)
Pin pitch: 1.8mm × 1.8mm
No. of columns: 8 columns

The Right Edge Module of the Backplane (C1410142-1)

Size: 31.22mm × 18.6mm × 12.12mm
144 contacts (9×16)
Pin pitch: 1.8mm × 1.8mm
No. of columns: 16 columns

Guide Needle (C1469491)

Threaded connection
9mm guide pin
Material: Zinc alloy
Surface treatment: nickel plating

Guide Hole (C1469492)

Right angle form
Material: Zinc alloy
Surface treatment: nickel plating
VITA 46 3U & 6U daughter board

Frequently Asked Questions (FAQ)

Q: What insulation materials and contact platings are utilized in the VPX Series?

A: The VPX Series Slot Backplane Connectors feature high-grade black LCP (Liquid Crystal Polymer) as the insulation material and are finished with up to 30u" Gold Plated on Nickel options to ensure reliable signal transmission.

Q: What is the standard configuration of contacts for model C1410187-3?

A: This model features a total of 112 contacts arrayed in a 7×16 grid configuration, structured as 32 pairs of differential contacts, 8 single-ended contacts, and 40 shielded contacts.

Q: What are the rated current standards and limits for these electrical connectors?

A: For signal pins, the rated current is 1.0A per pin @ 95℃. For grounding contacts, the system supports a rated current of 8.0A per pin @ 95℃.

Q: Can these connectors withstand harsh thermal environments?

A: Yes, the VPX series connectors are certified for high-reliability military and industrial environments, with an operational temperature range from -55℃ up to +105℃.

Q: What configurations and accessories are available for system alignment?

A: The system provides specialized zinc alloy, nickel-plated Guide Needles (C1469491, 9mm, threaded connection) and Right-Angle Guide Holes (C1469492) tailored for VITA 46 3U & 6U daughter boards.
